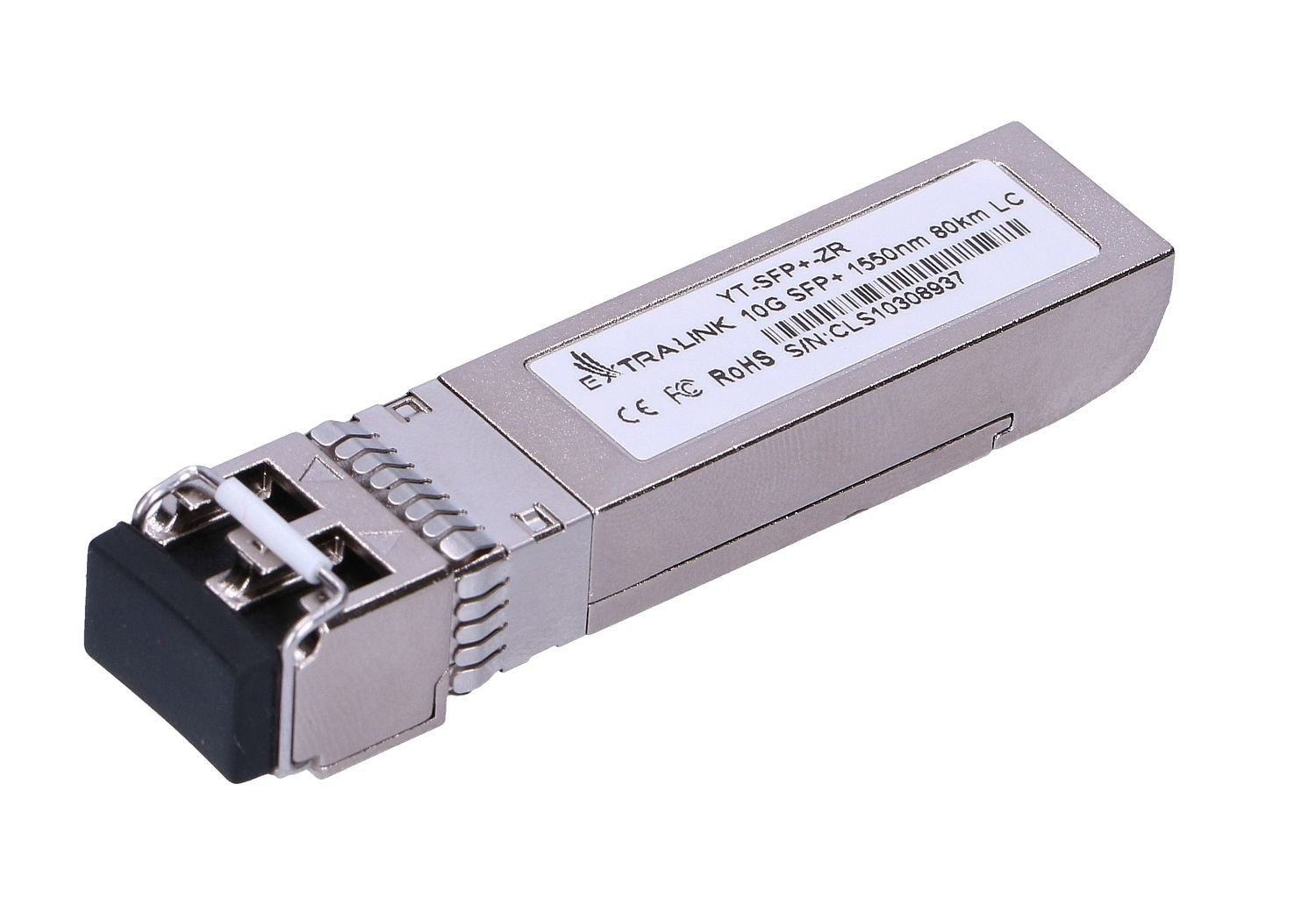

High-speed module SFP+ 10G 1550NM SM 40KM LC DUP. Extralink SFP+-ZR is designed for 8.5G/10G and 10GBE fibers. The single-mode SFP optical module consists of two sections, i.e. the transmitter section containing an EML laser and the receiver section consisting of an APD photo diode integrated with TIA. All modules meet the safety requirements for a Class I laser. The digital diagnostic functions of the SFP+-ZR are available via a 2-wire serial interface, allowing real-time access to operating parameters such as transceiver temperature, laser beam current, transmitted optical power, received optical power and power supply voltage of the SFP single-mode insert. The SFP+ 10G module can operate with a data transfer rate of ≤4.25 Gbps or from 9.95 Gbps to 11.3 Gbps.
| Basic data | |
| Item name | Extralink SFP+ 10G | SFP+ Module | 10Gbps, LC/UPC, 1550nm, 40km, single mode, DOM |
| Product symbol | EX.10093 |
| Hierarchy by CATEGORY |
|
| Hierarchy by MANUFACTURER |
|
| Package sizes (HxWxL) | 355 x 230 x 440 mm |
| Weight gross | 0.03 kg |
| Packaging content | |
| Quantity per pack |
|
| Packaging data | |
| Package volume |
|
| Package depth |
|
| Package height |
|
| Package width |
|
| Package type |
|
| Performance | |
| Maximum data transfer rate |
|
| Wavelength |
|
| Fiber optic connector |
|
| SFP transceiver type |
|
| Interface type |
|
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
