MikroTik S-RJ01-durability and the highest standards

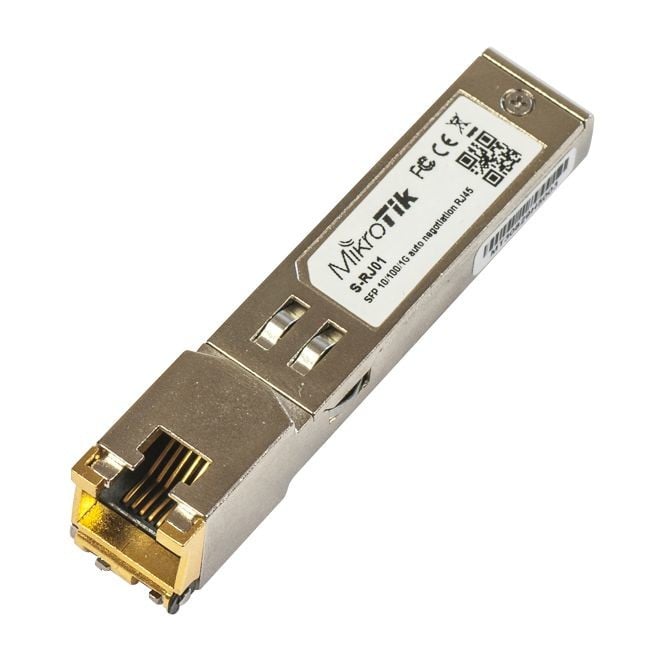

S-RJ01 is RJ45 SFP 10/100/1000M copper module, compatible with most Gigabit SFP ports available on various networking devices. 1 Ethernet LAN port working with Gigabit Ethernet interface with transfer speed of data on levels of 10/100/1000 Mbit/s. Data rate for the provided solution is 1.25 Gbit/s.
Device can be operated at temperatures from 0 to 85 degrees Celsius.
RoHS certified.
Additional Product Notes
- Up to 1.25 Gb/s bi-directional data links
- 100m transmission over unshielded
- Compliant with IEEE Std 802.3TM-2002
- Compliant with SFP MSA
- RoHSCompliance
- Access to physical layer IC via 2-wire serial bus
- RJ-45 connector
- Hot Pluggable SFP footprint
- +3.3V single power supply
- Extended case temperature range (0°C to +85°C)
| Basic data | |
| Item name | Mikrotik S-RJ01 network switch module Gigabit Ethernet (S-RJ01) |
| Product symbol | S-RJ01 |
| Hierarchy by CATEGORY |
|
| Hierarchy by MANUFACTURER |
|
| Package sizes (HxWxL) | 20 x 20 x 70 mm |
| Weight gross | 0.10 kg |
| Logistics data | |
| Harmonized System (HS) code |
|
| Data transmission | |
| Data transfer rate |
|
| Certificates | |
| Certification |
|
| Network | |
| Ethernet interface type |
|
| Ethernet LAN data rates |
|
| Optical fiber | |
| Transmission distance (max) |
|
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
