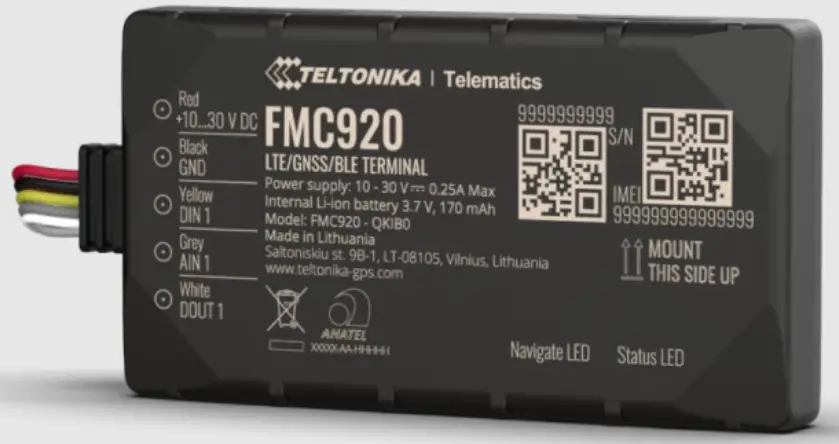

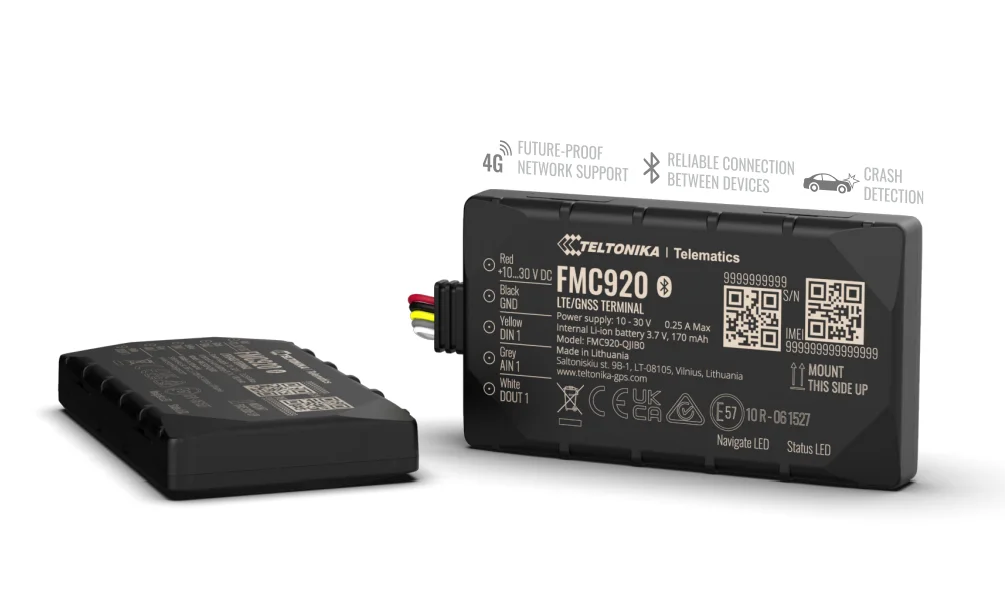

Teltonika FMC920 is a small and smart tracker with Bluetooth connectivity, internal High Gain GNSS and GSM
antennas and an integrated backup battery. The 4G Cat 1 technology offers much higher bandwidth, lower latency
and improved spectrum efficiency.

The model is compact, reliable, accurate and enduring. All the interfaces it has are more than enough for basic tracking.
Digital Input can be used for ignition, door or alarm button status monitoring, while vehicle remote immobilizing may
be achieved by using the Digital Output of the device. At the same time, Analog Input extends device usage scenarios
with temperature, humidity, liquid level monitoring and many more.

All of that brings unquestionable value to numerous market segments and societies, countries’ budgets and the
global economy overall. It can be perfectly adapted to any fleet and any transportation. The far-reaching experience
of the FMC920 predecessor shows that it is a perfect choice for basic track & trace and fleet management.

Teltonika FMC 920 Vehicle Tracker

Module
Name FMC920-QJIB0: Quectel EG915U-EU with Teltonika TM2500
FMC920-QKIB0: Quectel EG915U-LA with Teltonika TM2500

Technology LTE Cat 1/GSM/GPRS/GNSS/BLUETOOTH
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver 33 channel
Tracking sensitivity -165 dBM
Accuracy < 3 m
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
Cellular
Technology LTE Cat 1, GSM
2G bands FMC920-QJIB0: GSM: B2/B3/B5/B8
FMC920-QKIB0: GSM: B2/B3/B5/B8
4G bands FMC920-QJIB0: LTE FDD: B1/B3/B7/B8/B20/B28
FMC920-QKIB0: LTE FDD: B2/B3/B4/B5/B7/B8/B28/ B66

Data transfer

LTE: LTE FDD : Max 10Mbps (DL)/Max 5Mbps (UL)
LTE TDD: Max 85.6 Mbps (DL)/Max 85.6 Mbps (UL)
GSM: GPRS: Max 85.6Kbps (DL)/ Max 85.6Kbps (UL)

Data support SMS (text/data)
Power
Input voltage range 10 - 30 V DC with overvoltage protection
Back-up battery 170 mAh Li-Ion battery (0.63 Wh)

Power consumption

At 12V < 2 mA (Ultra Deep Sleep)
At 12V < 3 mA (Deep Sleep)
At 12V < 8 mA (Online Sleep)
At 12V < 12 mA (GNSS Sleep)
At 12V < 28 mA (Nominal)

Bluetooth
Specification 4.0 + LE
Supported peripherals Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner,

Universal BLE sensors support

Interface
Digital Inputs 1
Digital Outputs 1
Analog Inputs 1
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 Micro-USB
LED indication 2 status LED lights
SIM Micro-SIM
Memory 128MB internal flash memory
Operating environment
Operating temperature (with
battery) -20 °C to +40 °C
Operating temperature
(without battery) -40 °C to +85 °C
Storage temperature (without
battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP54
Battery charge temperature 0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +35 °C for 1 month
-20 °C to +30 °C for 6 months

Features
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling
detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip

Physical specification
Dimensions 79 x 43 x 12 mm (L x W x H)
Weight 54 g

Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware
update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS Configuration, Events, DOUT control, Debug
GPRS commands Configuration, DOUT control, Debug
Time Synchronization GPS, NITZ, NTP
Fuel monitoring LLS (Analog), OBDII dongle
Ignition detection Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)
Certification & Approvals
Regulatory FMC920-QJIB0: CE/RED, E-Mark, CITC, TRA, RCM,

Teltonika FMC 920 Vehicle Tracker is self monitored by our app www.trackgpslocation.com or on tablet or desktop. The device includes a roaming sim card which is included in the monthly monitoring charge.
