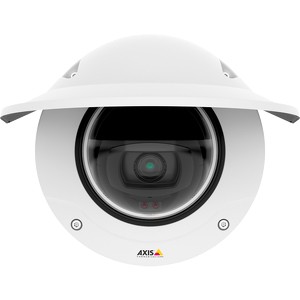

Axis Communications 01022-001 AXIS Q3517-LVE/IN

Return period: 28 days

CODE: 01022-001

Axis Q3517-LVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product...

Full description

€2,110.52

+ −

Vendor: TASK LTD

€2,110.52

Description
Reviews

Axis Q3517-LVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product color: White, Form factor: Dome. Minimum illumination: 0.02 lx, Angle of rotation: 175°, Lens viewing angle, horizontal: 96°. Sensor type: CMOS, Optical sensor size: 1/1.8". Focal length range: 4.3 - 8.6 mm, Fixed focal length: 0.0591" (1.5 mm)

Basic data
Item name	Axis Communications 01022-001 AXIS Q3517-LVE/IN
Product symbol	01022-001
Hierarchy by CATEGORY	Home Security & Automation Surveillance Systems Security Cameras
Hierarchy by MANUFACTURER	Axis
Package sizes (HxWxL)	260 x 240 x 320 mm
Weight gross	2.66 kg
Logistics data
Harmonized System (HS) code	85258900
Weight & dimensions
Height	182.00 millimeter
Diameter	183.40 millimeter
Weight	2000.00 gram
Power
Power consumption (Power over Ethernet (PoE))	6.50 W
Power consumption (typical)	6.90 W
Power consumption (max)	14.50 W
Power source type	PoE
Image sensor
Sensor type	CMOS
Audio
Audio output channels	1
Audio system	2-way
Audio codecs	AAC LC 8/16/32/48 kHz, G.711, G.726 ADPCM 8kHz, Opus 8/16/48 kHz
Audio input channels	1
Design
IK code	IK10
Form factor	Dome
Protection features	Vandal proof
International Protection (IP) code	IP67
Mounting type	Ceiling/wall
Housing material	Aluminum
Product color	White
Storage
Flash memory	512.00 MB
Internal memory	1024.00 MB
Compatible memory cards	MicroSDHC MicroSDXC MicroSD (TransFlash)
Camera
Camera shutter speed	1/71 500 - 2 s
Minimum illumination	0.02 lx
Angle of rotation	175.00 degrees
icecat_automatic_45207_95	96°
icecat_automatic_45208_95	53°
Video
Video compression formats	H.264
Frame rate	30.00
Total megapixels	5.00 mpx
Image quality adjustment	Brightness Color depth Contrast Sharpness
Lens system
Focal length range	4.3 - 8.6 mm
Fixed focal length	1.50 millimeter
Network
Supported network protocols	IPv4/v6, HTTP, HTTPS, SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
Performance
Connectivity technology	Wired
PTZ modes	Digital PTZ Preset point
Certification	EN 55032 Class A, EN 55024, IEC/EN 61000-6-1, IEC/EN 61000-6-2, FCC Part 15, Subpart B, Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 22 Class A, KCC KN32 Class A, KN35, EN 55032 Class A, EN 55024, IEC/EN 61000-6-1, IEC/EN 61000-6-2, FCC Part 15, Subpart B, Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 22 Class A, KCC KN32 Class A, KN35, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 IEC/EN 60529 IP52, IEC/EN 62262 IK10
Type	IP security camera
Placement supported	Indoor___outdoor
Night vision
LED type	IR
Night vision distance	40 m
Infra-red wavelength	850.00 nm
Security
Password protection type	User
