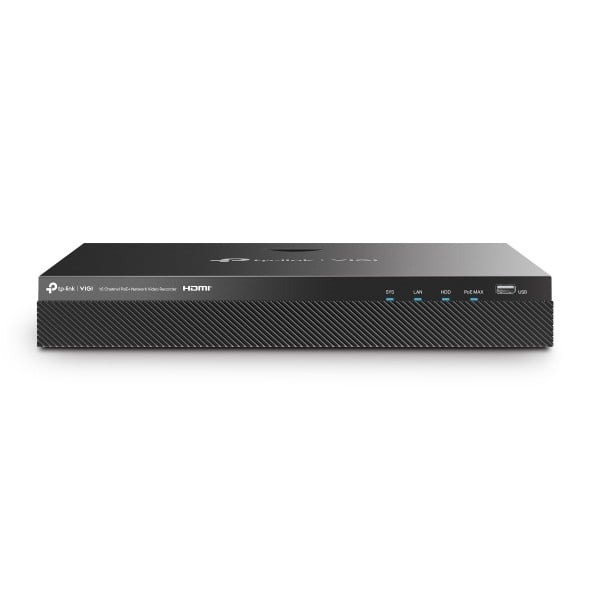

TP-LINK VIGI NVR2016H-16MP 16 Channel PoE+ Network Video Recorder

Return period: 28 days

CODE: VIGI NVR2016H-16MP

TP-Link VIGI NVR2016H-16MP. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16...

Full description

€1,070.25

+ −

Vendor: TASK LTD

€1,070.25

Description
Reviews

TP-Link VIGI NVR2016H-16MP. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: UPnP (Plug and Play), NTP (Network Timing). Product color: Black, Certification: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI. Power consumption (max): 40 W, Output current: 2.43 A, Output voltage: 53.5 V

Basic data
Item name	TP-LINK VIGI NVR2016H-16MP 16 Channel PoE+ Network Video Recorder
Product symbol	VIGI NVR2016H-16MP
Hierarchy by CATEGORY	Home Security & Automation Surveillance Systems Network Video Recorders (NVR)
Hierarchy by MANUFACTURER	TP-LINK
Package sizes (HxWxL)	350 x 150 x 400 mm
Weight gross	4 kg
Weight & dimensions
Height	45.00 millimeter
Width	330.00 millimeter
Depth	285.00 millimeter
Package weight	4100.00 gram
Weight	2100.00 gram
Power
Total Power over Ethernet (PoE) budget	140.00 W
Output voltage	53.5 V
Output current	2.43 A
Power consumption (max)	40.00 W
Hard drive
Maximum storage capacity	10.00 TB
HDD capacity	0.00 GB
HDD interface	SATA
Packaging content
Cables included	AC
Features
Certification	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
Product color	Black
Performance
Video input channels	16 channels
Number of simultaneously playbacked channels	16 channels
Audio formats supported	G.711 A-law G.711 μ-law G.726
Input bandwidth	80.00 Mb/s
Output bandwidth	60.00 Mb/s
Video formats supported	H.264 H.264+ H.265 H.265+
Maximum frame rate	30.00
Supported resolutions	HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz
Video recording modes	1080p 720p
Recording modes	Manual, Schedule
Playback modes	Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Ports & interfaces
Audio output	1
Networking standards	IEEE 802.3af IEEE 802.3at
Supported network protocols	UPnP (Plug and Play), NTP (Network Timing)
Ethernet LAN data rates	10,100,1000 Mbit/s
