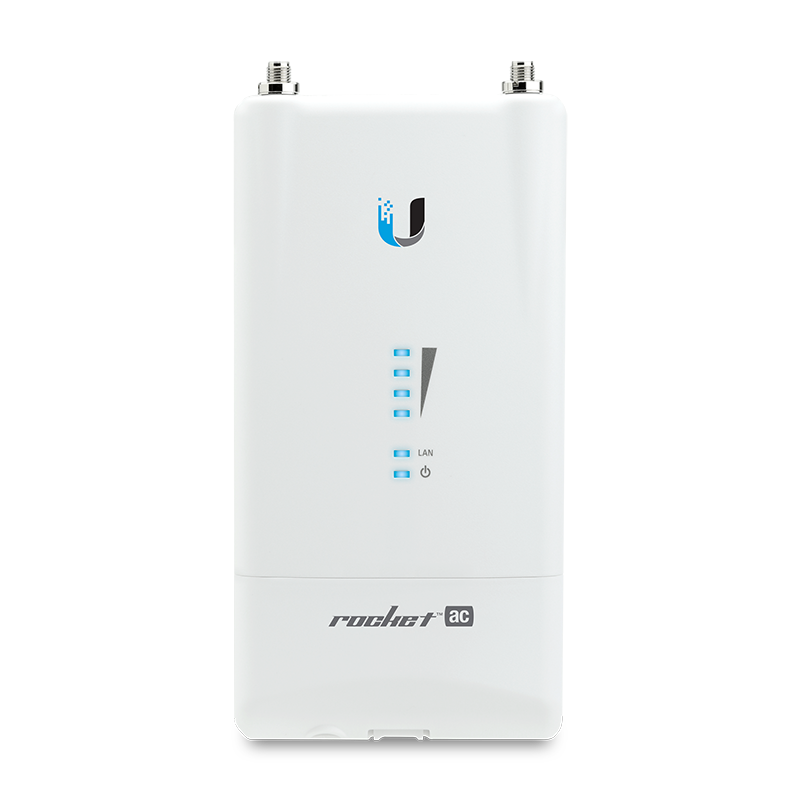

R5AC-Lite - advanced Ubiquiti technology
The Ubiquiti R5AC-Lite guarantees high quality and stable transfer speed. The device belongs to the airMax Rocket AC series.
The device is characterised by a maximum connection speed of 450 Mbit/s. The device works in the 5150 - 5875 MHz band.
Parameters
The device uses an Atheros MIPS 74KC 720 MHz processor. The device uses 128 MB internal memory and 16 MB flash drive memory. It is equipped with 1 Ethernet LAN (RJ-45) port. It supports QoS service and VLAN. It is CE, FCC and IC certified.
Use
The R5AC-Lite is compatible with airMax AC Sector Antenna and RocketDish AC Antenna devices to create efficient Point-to-Point and Point-to-Multi-Point links.
Construction
Its solid construction enables it to work in unfavourable weather conditions. It can be used at temperatures ranging from -40 to 80 degrees Celsius and relative humidity of up to 95%. It includes an installation set, a power supply unit and a short manual.
Key features
- works in the 5 GHz band
- 450 Mbit/s maximum transfer data speed
- airMax ac technology
- 162 x 84 x 37 mm size
- durable construction
- easy installation
Comparison
 |
 |
 |
|
| R5AC-Lite | R5AC-PTP | R5AC-PTMP | |
| FREQUENCY | Full-Band 5 GHz | Mid-Band 5 GHz | Mid-Band 5 GHz |
| THROUGHPUT | 500+ Mbps (max. 80 MHz) | 500+ Mbps (max. 80 MHz) | 330+ Mbps (max. 40 MHz) |
| PORTS | (1) 10/100/1000 Ethernet | (1) 10/100/1000 Ethernet | (1) 10/100/1000 Ethernet |
|
airMAX ac TECHNOLOGY |
 |
 |
|
| airPrism TECHNOLOGY | |
|
|
| PtP FUNCTIONALITY | |
|
* |
| PtMP FUNCTIONALITY | ** |
* |
|
| GIGABIT ETHERNET | |
|
|
| UBIQUITI POE | |
|
|
| OUTPUT POWER | 27 dBm | 27 dBm | 27 dBm |
*Requires firmware airOS v7.1.1 or higher **Requires firmware airOS v7.1 or higher
Manufacturer's content
Read more in the manufacturer's documentation
Specifications
| Basic data | |
| Item name | Ubiquiti R5AC-Lite Networks Rocket 5ac Lite 450 Mbit/s White |
| Product symbol | R5AC-Lite |
| Hierarchy by CATEGORY |
|
| Hierarchy by MANUFACTURER |
|
| Package sizes (HxWxL) | 80 x 120 x 220 mm |
| Weight gross | 1.20 kg |
| Logistics data | |
| Harmonized System (HS) code |
|
| Weight & dimensions | |
| Height |
|
| Width |
|
| Depth |
|
| Weight |
|
| Antenna | |
| Antenna type |
|
| Antenna connector type |
|
| Antenna features |
|
| Power | |
| Input current |
|
| Power consumption (typical) |
|
| AC input voltage |
|
| Certificates | |
| Certification |
|
| Features | |
| Maximum data transfer rate |
|
| Modulation |
|
| Frequency band |
|
| Wi-Fi data rate (max) |
|
| MIMO type |
|
| Ethernet LAN data rates |
|
| Design | |
| LED indicators |
|
| Product color |
|
| Performance | |
| Flash memory |
|
| Internal memory |
|
