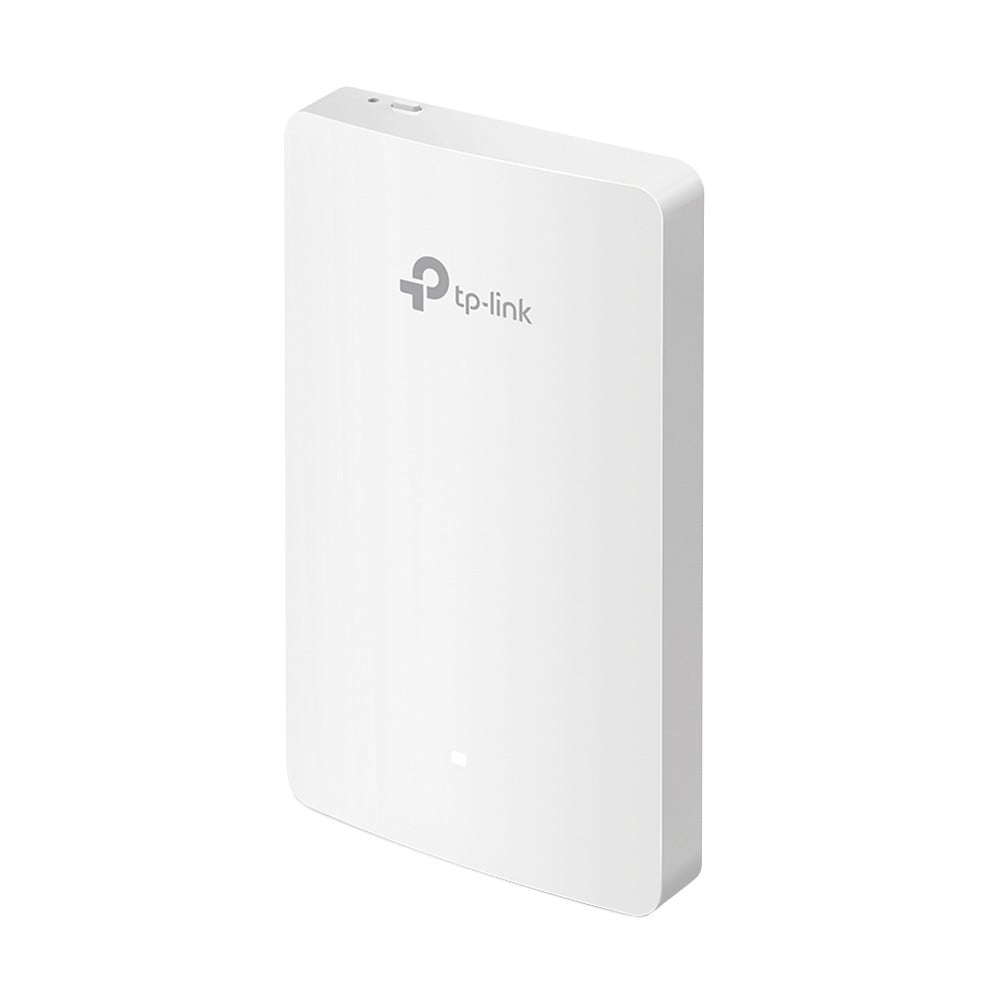

TP-Link EAP235-Wall AC1200 Wall-Plate Dual-Band Wi-Fi Access Point

Write a review
81.25
TASK LTD
28 days
EAP235-Wall
IN STOCK
+

The TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point (model: EAP235-Wall) is designed to deliver exceptional wireless performance with a maximum data transfer rate of 1167 Mbit/s. This device operates on dual bands, providing 300 Mbit/s on the 2.4 GHz band and 867 Mbit/s on the 5 GHz band, ensuring a seamless and efficient internet experience for multiple users simultaneously. Its advanced MU-MIMO technology allows for simultaneous data streaming to multiple devices, significantly enhancing network efficiency and user satisfaction.


Security is a top priority with the EAP235-Wall, as it supports a wide range of security protocols including WPA, 802.1X RADIUS, and HTTPS. This ensures robust protection for your network, making it suitable for various environments, from small offices to larger enterprises. Additionally, the access point features multiple SSIDs, allowing for the creation of separate networks within the same physical infrastructure, which is ideal for guest access or departmental segregation.


Equipped with an Ethernet (RJ-45) WAN connection and supporting both active and passive Power over Ethernet (PoE), the EAP235-Wall offers flexible installation options while maintaining a typical power consumption of 24.4 W. Its sleek white exterior and integrated LED indicators for LAN, power, status, WAN, and WLAN provide a modern aesthetic and clear operational status at a glance. With compatibility across various IEEE standards, including 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n, and 802.1x, this access point is a versatile solution for expanding your wireless network capabilities.




Basic data
Item nameTP-Link EAP235-Wall AC1200 Wall-Plate Dual-Band Wi-Fi Access Point
Product symbolEAP235-Wall
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Wireless Access Points
Hierarchy by MANUFACTURER
  • TP-LINK
Package sizes (HxWxL)30 x 80 x 160 mm
Weight gross0.30 kg
Logistics data
Harmonized System (HS) code
  • 85176990
Weight & dimensions
Height
  • 20.00 millimeter
Width
  • 143.00 millimeter
Depth
  • 86.00 millimeter
Antenna
Antenna type
  • Internal
Antenna gain level (max)
  • 4 dBi
Antenna features
  • Integrated antenna
Power
Power over Ethernet (PoE) type supported
  • Active PoE
  • Passive PoE
Power consumption (typical)
  • 24.40 W
Certificates
icecat_automatic_48024_76
  • CE
  • Federal Communications Commission (FCC)
  • RoHS
Packaging content
Quantity per pack
  • 1.00 pcs
Sustainability
Sustainability certificates
  • CE
Packaging data
Package depth
  • 184.00 millimeter
Package height
  • 33.00 millimeter
Package width
  • 117.00 millimeter
Package type
  • Box
Package weight
  • 300.00 gram
Features
Maximum data transfer rate
  • 1167.00 Mb/s
Frequency band
  • 2.4 - 5 GHz
Networking standards
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IEEE 802.1x
  • IEEE 802.3af
  • IEEE 802.3at
MIMO type
  • Multi User MIMO
Virtual LAN features
  • Port-based VLAN
  • VLAN mapping
Maximum data transfer rate (2.4 GHz)
  • 300.00 Mb/s
Maximum data transfer rate (5 GHz)
  • 867.00 Mb/s
Transmitting power (FCC)
  • 21 dBm
Transmitting power (CE)
  • 20 - 23 dBm
Cabling technology
  • 10/100/1000Base-T(X)
Ethernet LAN data rates
  • 10,100,1000 Mbit/s
Design
Placement
  • Wall
LED indicators
  • LAN, Power, Status, WAN, WLAN
Product color
  • White
Performance
Compatible operating systems
  • Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Ports & interfaces
WAN connection
  • Ethernet (RJ-45)
Security
Service Set Identifier (SSID) features
  • Multiple SSIDs
Security algorithms
  • 128-bit WEP
  • 152-bit WEP
  • 64-bit WEP
  • 802.1x RADIUS
  • HTTPS
  • SNMP
  • SNMPv3
  • SSH
  • WPA
  • WPA-Enterprise
  • WPA-PSK
