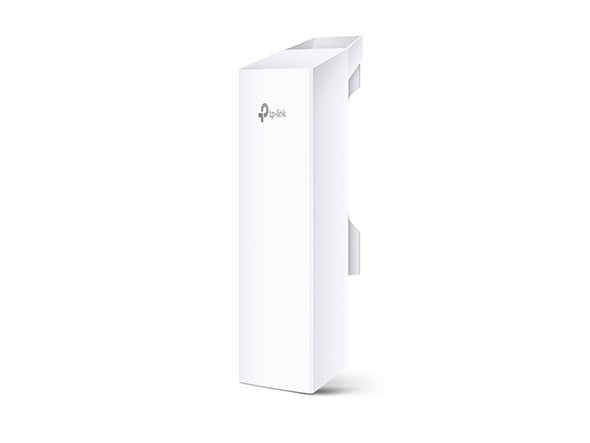

TP-Link CPE510 5 GHz 300 Mbps 13 dBi Outdoor CPE

Write a review
63.28
TASK LTD
28 days
CPE510
IN STOCK
+

The TP-Link CPE510 is a high-performance outdoor wireless device designed to operate on a 5 GHz frequency, delivering a maximum data transfer rate of 300 Mbps. This ensures fast and efficient wireless connectivity, making it an ideal solution for various outdoor applications, such as extending Wi-Fi coverage in large areas or connecting remote locations. With its high-gain 13 dBi antenna, the CPE510 significantly enhances signal strength and extends coverage, providing reliable connectivity even in challenging environments.


Equipped with advanced security features, the TP-Link CPE510 supports multiple encryption algorithms, including WPA2 and WPA2-PSK, ensuring that your network remains secure against unauthorized access. The device also utilizes TDMA management protocols to optimize data transmission and reduce latency, offering a superior performance compared to many competitors in the market. Additionally, it adheres to IEEE 802.11a and IEEE 802.11n standards, ensuring compatibility with a wide range of wireless equipment.


Management of the TP-Link CPE510 is made easy through the Pharos Control platform, a centralized management application that simplifies setup and maintenance. The WAN connection is facilitated via an Ethernet (RJ-45) port, providing reliable wired connectivity for enhanced network stability. With its robust features and versatile configurations, the CPE510 stands out as a reliable choice for users seeking to establish a strong outdoor wireless network.




Basic data
Item nameTP-Link CPE510 5 GHz 300 Mbps 13 dBi Outdoor CPE
Product symbolCPE510
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Wireless Access Points
Hierarchy by MANUFACTURER
  • TP-LINK
Package sizes (HxWxL)270 x 130 x 110 mm
Weight gross0.90 kg
Logistics data
Harmonized System (HS) code
  • 85176990
Weight & dimensions
Height
  • 60.00 millimeter
Width
  • 224.00 millimeter
Depth
  • 75.00 millimeter
Antenna
Antenna type
  • External
Antenna gain level (max)
  • 13 dBi
Antenna features
  • Integrated antenna
Power
Input current
  • 0.8 A
Power consumption (typical)
  • 13.00 W
AC input frequency
  • 50 - 60 Hz
AC input voltage
  • 100 - 240 V
Certificates
Certification
  • FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS
Protocols
Management protocols
  • TDMA
Packaging content
Cables included
  • AC
Features
Maximum data transfer rate
  • 300.00 Mb/s
Receiver sensitivity
  • 802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
Bandwidth
  • 5.00 GHz
Frequency band
  • 5.15 - 5.85 GHz
Networking standards
  • IEEE 802.11a
  • IEEE 802.11n
Wi-Fi data rate (max)
  • 300
MIMO type
  • Single User MIMO
Maximum outdoor range
  • 15000.00 meter
Ethernet LAN data rates
  • 10,100 Mbit/s
Design
LED indicators
  • Yes
Product color
  • White
Performance
Compatible operating systems
  • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Flash memory
  • 8.00 MB
Internal memory
  • 64.00 MB
Ports & interfaces
WAN connection
  • Ethernet (RJ-45)
Security
Security algorithms
  • 128-bit WEP
  • 152-bit WEP
  • 64-bit WEP
  • TKIP
  • WPA
  • WPA-PSK
Management features
Management platform
  • Pharos Control
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
