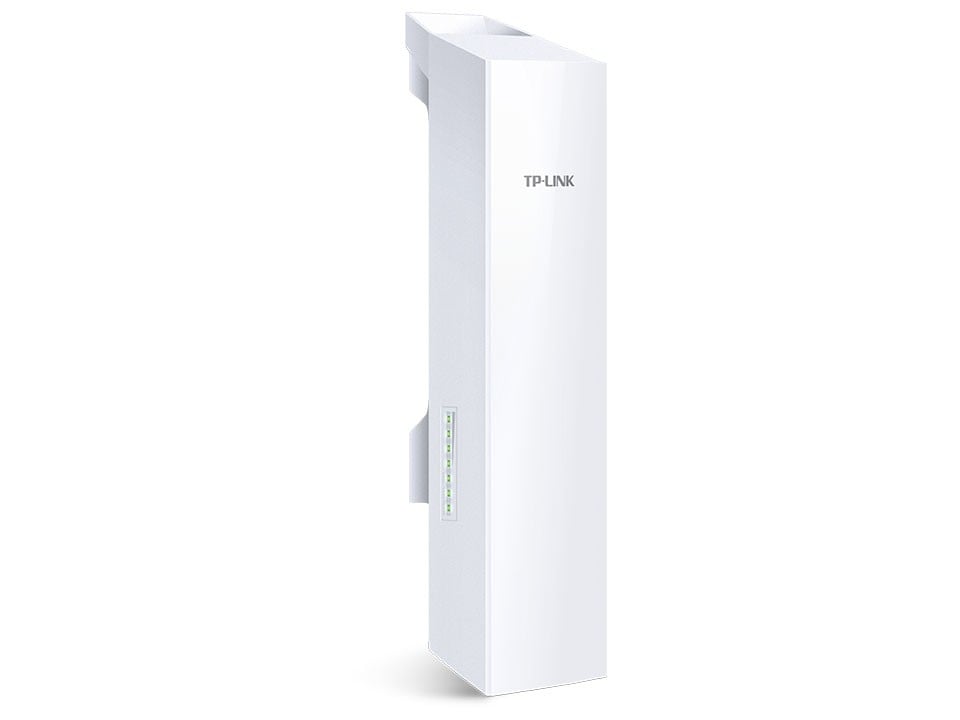

TP-Link CPE220 2.4 GHz 300 Mbps 12 dBi Outdoor CPE

Write a review

€62.82

Vendor: TASK LTD

Return period: 28 days

CODE: CPE220

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

The TP-Link CPE220 is a high-performance outdoor wireless access point designed for a variety of applications. Operating on the 2.4 GHz frequency band (ranging from 2.4 to 2.483 GHz), it supports the IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n standards, providing a maximum data transfer rate of 300 Mbit/s. This ensures efficient and fast connectivity, making it an ideal choice for outdoor networking scenarios.

Equipped with a high-gain 12 dBi antenna, the TP-Link CPE220 significantly enhances signal strength and extends coverage, allowing for reliable connections over greater distances. Security is a top priority, with support for multiple algorithms including 64-bit WEP, 128-bit WEP, AES, WPA, WPA2, and more. Additionally, the device features SSID broadcast management, enabling users to control the visibility of their network identifiers for improved security.

Management of the TP-Link CPE220 is streamlined through Pharos Control, a centralized management platform that utilizes TDMA protocols to optimize performance and manageability. With an AC input voltage requirement of 100 - 240 V and an input current of 0.8 A, this device is well-equipped to handle various outdoor networking scenarios efficiently. The combination of robust security features and superior signal strength positions the TP-Link CPE220 as a leading choice in its category.

Basic data
Item name	TP-Link CPE220 2.4 GHz 300 Mbps 12 dBi Outdoor CPE
Product symbol	CPE220
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Wireless Access Points
Hierarchy by MANUFACTURER	TP-LINK
Package sizes (HxWxL)	330 x 140 x 110 mm
Weight gross	1.10 kg
Weight & dimensions
Height	33.50 millimeter
Width	110.00 millimeter
Depth	57.00 millimeter
Antenna
Antenna type	Internal
Antenna gain level (max)	12 dBi
Antenna features	Integrated antenna
Power
Output voltage	24 V
Input current	0.8 A
Output current	1.00 A
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Power consumption (max)	10.80 W
Certificates
Certification	- CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5
Protocols
Management protocols	TDMA
Features
Maximum data transfer rate	300.00 Mb/s
Channel bandwidth	40.00 MHz
Bandwidth	2.40 GHz
Frequency band	2.4 - 2.483 GHz
Networking standards	IEEE 802.11b IEEE 802.11g IEEE 802.11n
Channels quantity	5 channels
Wi-Fi data rate (max)	300
MIMO type	Single User MIMO
Design
International Protection (IP) code	IPX5
LED indicators	Power
Product color	White
Performance
Flash memory	8.00 MB
Internal memory	64.00 MB
Security
Service Set Identifier (SSID) features	SSID broadcast on/off
Security algorithms	128-bit WEP 152-bit WEP 64-bit WEP AES HTTPS SNMP SSH SSID TKIP WPA WPA-PSK
Management features
Management platform	Pharos Control
