Powerful OEM board with three Gigabit LAN and two miniPCIe slots

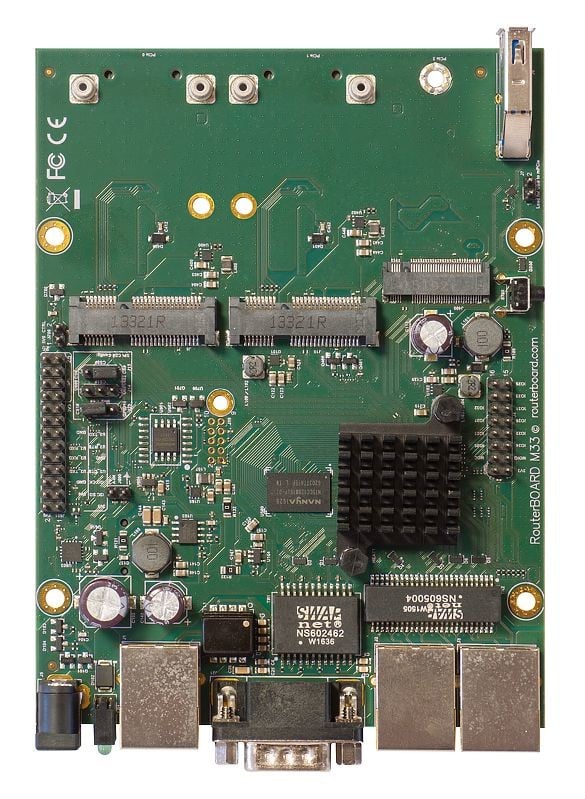

The RBM33G is a fully featured RouterBOARD device perfect for using in your own enclosure or building a custom solution. It uses the same PCB form factor and same mounting holes as it’s predecessors (RB433 and RB953 series).
The RBM33G features a new MediaTek two core CPU running at 880 MHz and 256 MB of DDR3 RAM and three Gigabit Ethernet ports. It is specially designed for setups that requires two 3G/LTE modems. You can use the device with e.g.:
- two miniPCIe 3G/LTE modems (two SIM slots provided);
- two miniPCIe wireless cards
- one miniPCIe and one USB 3G/LTE modem leaving other miniPCIe slot for 802.11 wireless card (consult product Quick Guide for details).
The included USB 2.0/3.0 port can be used either for 3G/LTE modem or an external hard drive (consult product Quick Guide for details). For expanding storage, microSD and a PCIe M.2 slots are provided.
The RBM33G comes fitted with a RS232 serial port for console access. The device can be powered by PoE through it’s gigabit ethernet connector or through the DC power jack.
| Basic data | |
| Item name | Mikrotik RBM33G wired router Black, Green, Grey (RBM33G) |
| Product symbol | RBM33G |
| Hierarchy by CATEGORY |
|
| Hierarchy by MANUFACTURER |
|
| Package sizes (HxWxL) | 20 x 50 x 100 mm |
| Weight gross | 0.30 kg |
| Logistics data | |
| Harmonized System (HS) code |
|
| Power | |
| Power source type |
|
| Features | |
| Storage media |
|
| Flash memory |
|
| Processor frequency |
|
| Processor cores |
|
| Internal memory |
|
| Processor threads |
|
| Processor model |
|
| Design | |
| Product color |
|
| Network | |
| Ethernet LAN data rates |
|
| Ports & interfaces | |
| USB version |
|
