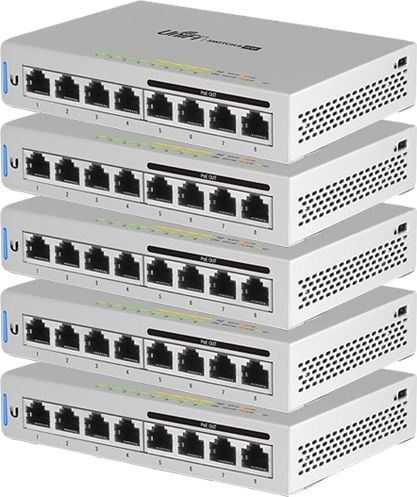

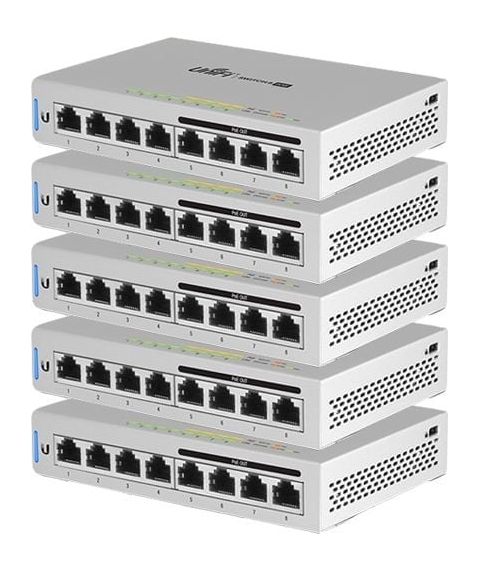

Ubiquiti US-8-60W-5 Networks UniFi 5 x Switch 8 Managed Gigabit Ethernet (10/100/1000) Power over...

Write a review

€871.68

Vendor: TASK LTD

Return period: 28 days

CODE: US-8-60W-5

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

Unboxing

PoE Switch Compatibility for UAPs and UVCs

AP/Camera Model	US-8	US-8-60W	US-8-150W	US-16-150W	US-24-250W	US-24-500W	US-48-500W	US-48-750W
UVC-G3			âœ“	âœ“	âœ“	âœ“	âœ“	âœ“
UVC-G3-DOME	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“
UAP			âœ“	âœ“	âœ“	âœ“	âœ“	âœ“
UAP-LR			âœ“	âœ“	âœ“	âœ“	âœ“	âœ“
UAP-PRO	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“
UAP-AC-LITE¹	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“
UAP-AC-LR¹	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“
UAP-AC-PRO	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“
UAP-AC-M	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“
UAP-AC-M-PRO	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“
UAP-AC-IW²	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“
UAP-AC-IW-PRO²	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“	âœ“
UAP-AC-HD			âœ“	âœ“	âœ“	âœ“	âœ“	âœ“

âœ“ Compatible with the UniFi switch.

width= Requires Instant 802.3af Gigabit PoE Converter: INS-3AF-I-G width= or INS-3AF-O-G width= .

width= Requires 802.3at power; switch provides 802.3af only.

Note:

¹ UAP-AC-LITE and UAP-AC-LR models manufactured before September 2016 require the Instant 802.3af Gigabit PoE Converter.

² For the UAP-AC-IW and UAP-AC-IW-PRO PoE passthrough is supported by all of the switches listed above except for models US-8 and US-8-60W.

Basic data
Item name	Ubiquiti US-8-60W-5 Networks UniFi 5 x Switch 8 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey (5-pack)
Product symbol	US-8-60W-5
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	Ubiquiti
Package sizes (HxWxL)	180 x 240 x 300 mm
Weight gross	3 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	30.70 millimeter
Width	148.00 millimeter
Depth	99.50 millimeter
Weight	432.00 gram
Power
Output voltage	48 V
Output current	1.25 A
Power consumption (max)	12.00 W
Data transmission
Throughput	8000 Mpps
Switching capacity	16.00 Gb/s
Certificates
Certification	ETSI300-019-1.4, CE, FCC, IC
Design
Housing material	Steel
LED indicators	Activity, Link, PoE, Speed
Product color	Gray
Network
Networking standards	IEEE 802.1x IEEE 802.3af
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	60.00 W
Power over Ethernet (PoE) power per port	15.40 W
Management features
Switch layer	L2
Switch type	Managed
