Ubiquiti Networks UniFi USW‑FLEX Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White

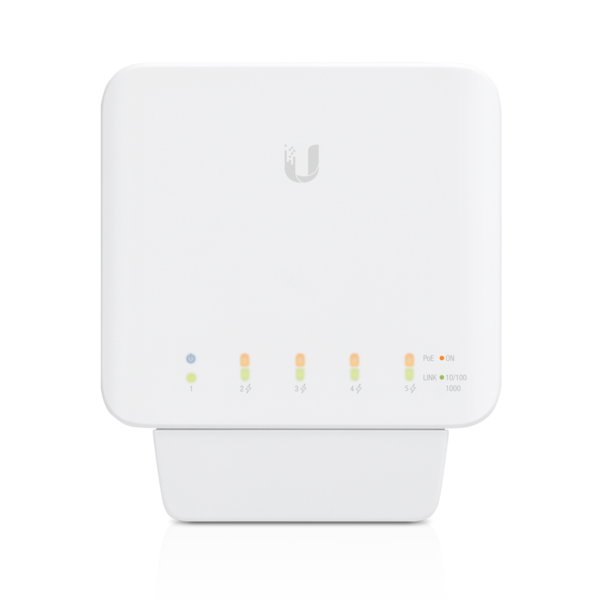

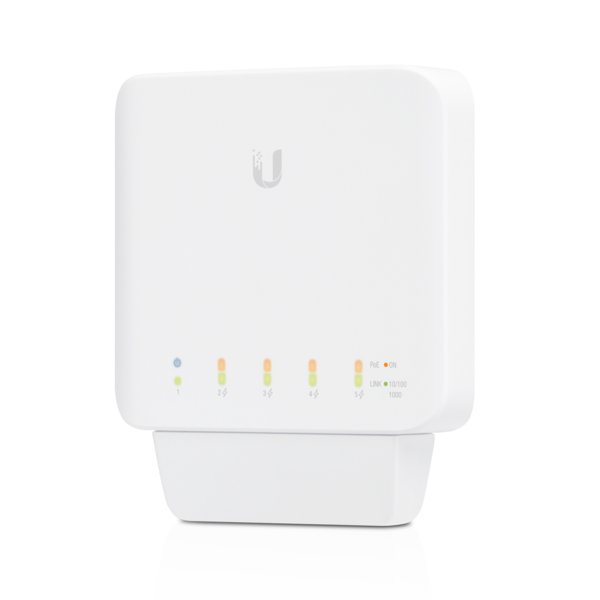

Ubiquiti Networks UniFi USW‑FLEX

Build and expand your network with the UniFi® Switch, part of the UniFi Enterprise System. The UniFi Switch, model USW-Flex, is a configurable Layer 2 Gigabit switch with auto-sensing 802.3af PoE. It offers 5 RJ45 Gigabit Ethernet ports, providing 1 PoE input and 4 PoE output links to your devices.

The UniFi Switch Flex features a single PoE In port for power and four PoE ports that provide up to 15W PoE output to power a UniFi access point or other PoE devices. With 802.3bt rated PoE switches (USW-Pro-48-PoE, USW-Pro-24-PoE, US-XG-6POE, and USW-Industrial switches, sold separately) as power source, USW-Flex supports maximum 46W PoE output budget. It has weatherproof housing and offers versatile mounting options.

Managed and configured by the UniFi application or UniFi Mobile app, the UniFi Switch Flex offers basic Layer 2 switching protocols and features. The UniFi application and mobile app allow admins to configure and monitor virtually all of the switch features using a graphical user interface from anywhere.

Switching Performance

The USW-Flex offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

PoE Flexibility

The USW-Flex features five Gigabit RJ45 ports to deliver robust performance and intelligent switching for your network. Port 1 provides PoE input while ports 2-4 offer 802.3af PoE and provide up to 15W of power for your PoE devices. Products requiring 802.3af, such as G3 Flex cameras, are supported.

Indoor/Outdoor Design

The USW-Flex can be installed horizontally or vertically and offers versatile mounting options: desktop, wall, and pole. The weather-resistant USW-Flex can withstand extreme temperature variations. If the USW-Flex is installed at an exposed location outdoors, we recommend the UniFi Switch Flex Utility, model USW-Flex-Utility, which is designed for use with the USW-Flex.

Outdoor Enclosure Accessory

An outdoor weatherproof enclosure, the USW Flex Utility, is available as an optional accessory. It includes an Ethernet patch cable and a 60W PoE adapter, which provides a maximum PoE budget of 46W. Easily mounted on a pole, the USW Flex Utility provides clean cable management and a screw lock for security.
