Ubiquiti Networks UniFi 16-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ether...

Write a review
346.14
TASK LTD
28 days
USW-16-POE
IN STOCK
+

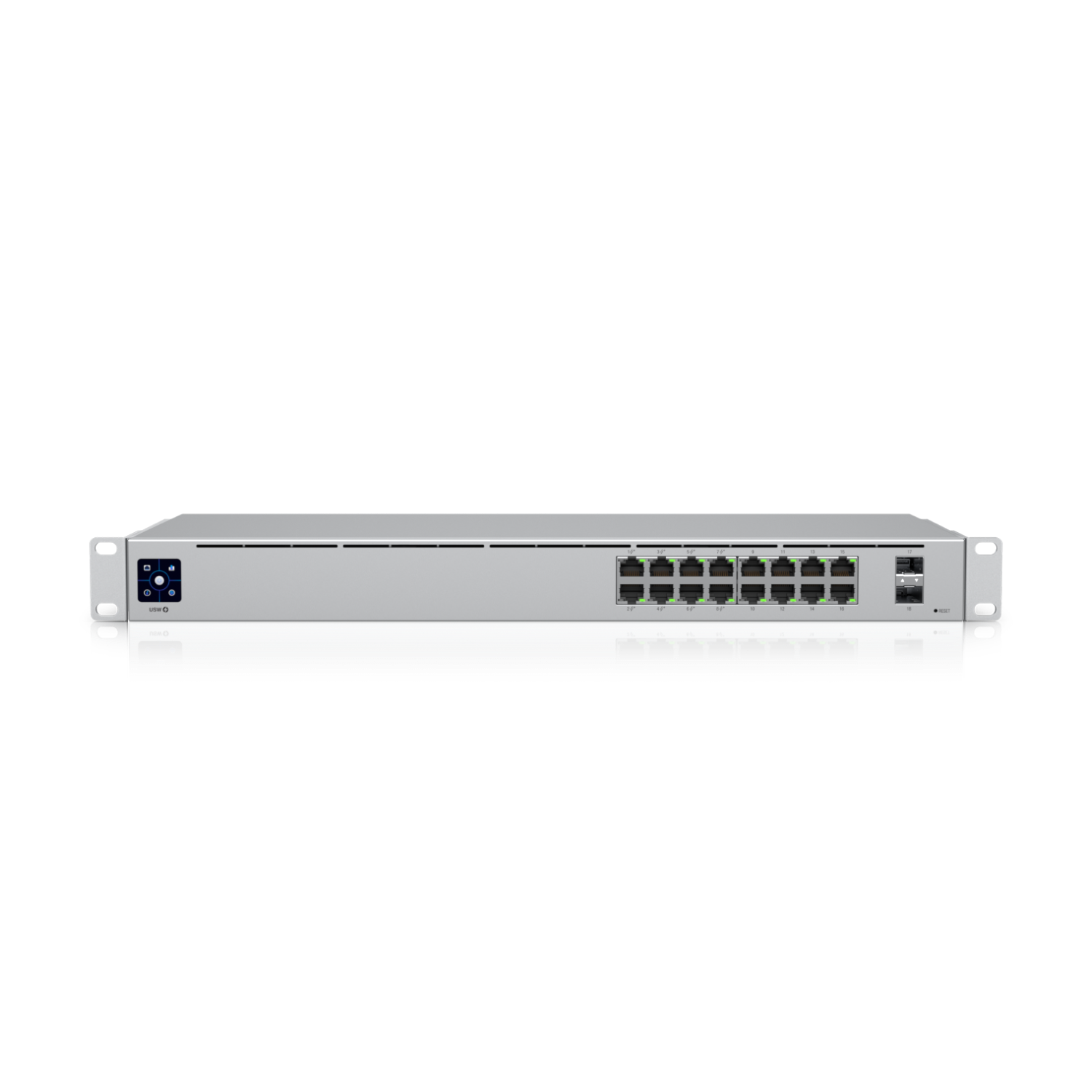

Ubiquiti Networks UniFi 16-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U

Ubiquiti Networks UniFi USW-16-POE

The USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-16-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.

Managed and configured by the UniFi Network application with UniFi mobile app support, the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network application and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Fiber Connectivity

SFP ports enable network uplinks of up to 1 Gbps.

Fanless, Silent Cooling

The UniFi PoE Switch features fanless, silent thermal cooling*, so it can be deployed in areas where fan noise would be distracting.

Switching Performance

The UniFi PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

802.3af/at PoE

PoE support simplifies your network infrastructure and cabling. PoE ports offer 802.3af/at to power your PoE devices, such as UniFi APs and cameras.

Ubiquiti Networks UniFi 16-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U
Ubiquiti Networks UniFi 16-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U

Additional Product Notes

  1. (16) Gigabit Ethernet Ports including (8) 802.3at PoE+ Ports
  2. (2) 1G SFP Ports
  3. 1.3" touch LCM
  4. Managed with UniFi application
Networking standards Switch type Switch layer Basic switching RJ-45 Ethernet ports quantity Basic switching RJ-45 Ethernet ports type Switching capacity
IEEE 802.3af,IEEE 802.3at Managed L2/L3 16 Gigabit Ethernet (10/100/1000) 36 Gbit/s


Basic data
Item nameUbiquiti Networks UniFi 16-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U (USW-16-POE)
Product symbolUSW-16-POE
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • Ubiquiti
Package sizes (HxWxL)300 x 130 x 530 mm
Weight gross3.60 kg
Logistics data
Harmonized System (HS) code
  • 85176990
Weight & dimensions
Height
  • 43.70 millimeter
Width
  • 442.40 millimeter
Depth
  • 200.00 millimeter
Weight
  • 2800.00 gram
Power
AC input frequency
  • 50 - 60 Hz
AC input voltage
  • 100 - 240 V
DC input voltage
  • 44 - 57 V
Data transmission
Throughput
  • 18000 Mpps
Switching capacity
  • 36.00 Gb/s
Forwarding rate
  • 26.78 Mpps
Certificates
Certification
  • CE, FCC, IC
Design
Form factor
  • 1U
LED indicators
  • Activity, Link, PoE, Speed, System
Product color
  • Silver
Network
Networking standards
  • IEEE 802.3af
  • IEEE 802.3at
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
  • 48.00 W
Power over Ethernet (PoE) power per port
  • 32.00 W
Security
Authentication type
  • ieee_802_1x
  • radius
Management features
Switch layer
  • L2/L3
Switch type
  • Managed
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
