Ubiquiti Networks U Fiber, OLT Managed SSE 1U Black (UF-OLT)

Write a review

€1,850.73

Vendor: TASK LTD

Return period: 28 days

CODE: UF-OLT

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

Ubiquiti Networks U Fiber, OLT Managed None 1U Black

High-Performance GPON

Configuring a fiber network just became as easy as setting up a smartphone. Say goodbye to command lines, manuals, and paid support licenses. Introducing the U Fiber OLT – a fiber solution that anyone can deploy.

U Fiber offers Internet and telecom service providers a cost-effective fiber optic delivery system for Triple Play Services (data, voice, IPTV/VoD) with speeds of up to 2.488 Gbps downstream and 1.244 Gbps upstream.

The U Fiber network is intelligently managed using the included UNMS™ (Ubiquiti Network Management System) controller. U Fiber devices consist of the U Fiber OLT (deployed at the provider premises) and the U Fiber Nano™G consumer premises equipment ONUs.

Ubiquiti Networks U Fiber, OLT Managed None 1U Black

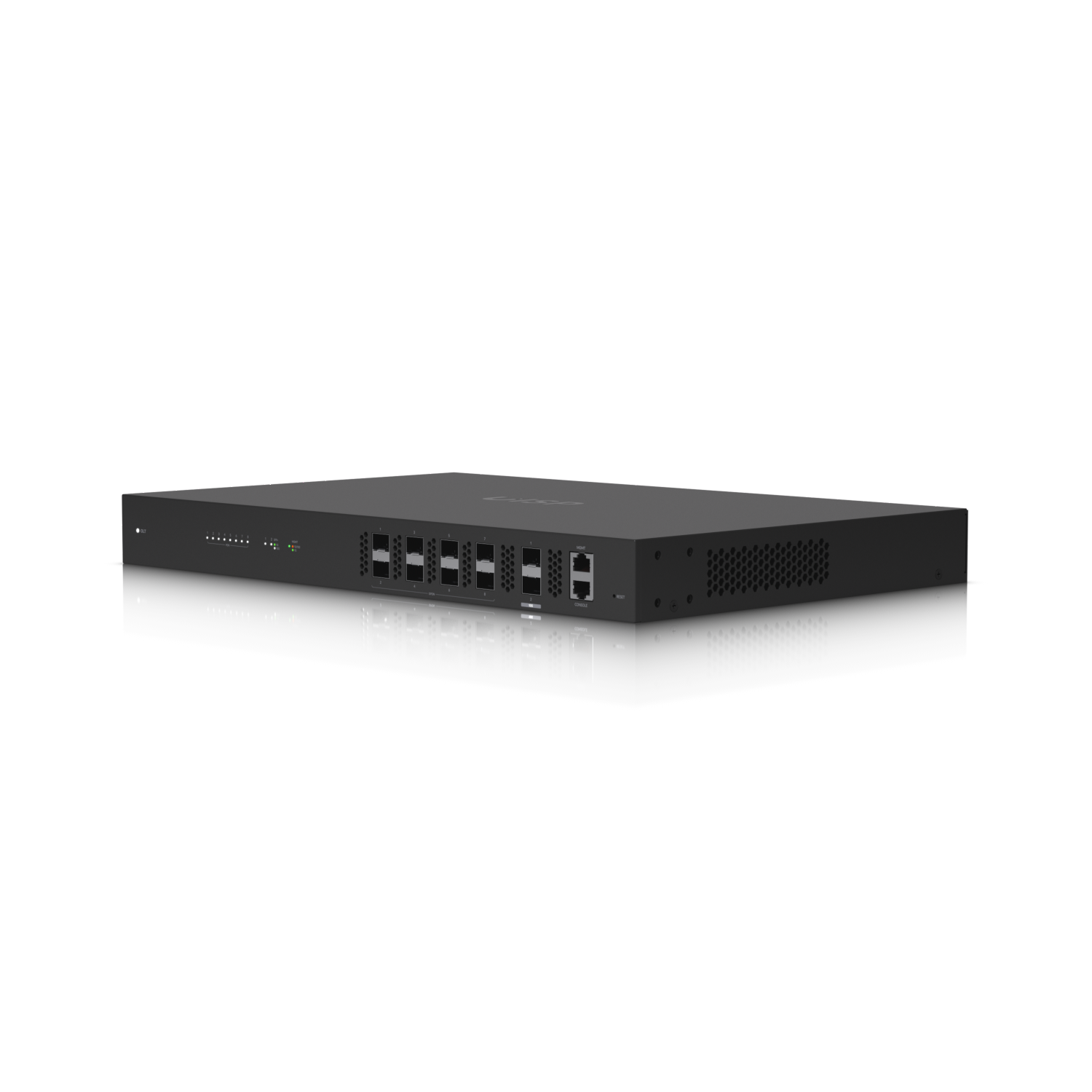

GPON Optical Line Terminal

The U Fiber OLT offers eight GPON ports and supports up to 1024 concurrent clients with physical links of up to 20 km in distance. Two SFP+ ports provide 10G of uplink connectivity.

The UF-OLT provides flexible power options, with two modular power adapter bays that can house either AC/DC or DC/DC power modules. One AC/DC module is included; additional modules can be purchased separately.

Features:

Ports: (8) GPON SFP Ports, (2) SFP+ Ports
Concurrent Clients: 1024 ONUs
GPON Range: Up to 20 km Link
GPON Speeds: 2.488 Gbps Upstream (TX), 1.244 Gbps Downstream (RX)
Wavelengths: 1490 nm Upstream (TX), 1310 nm Downstream (RX)
Max. Power Consumption: 40W
Mounting: 1U Rack-Mountable (Optional)

Basic data
Item name	Ubiquiti Networks U Fiber, OLT Managed None 1U Black (UF-OLT)
Product symbol	UF-OLT
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	Ubiquiti
Package sizes (HxWxL)	380 x 100 x 600 mm
Weight gross	6.20 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	43.70 millimeter
Width	442.40 millimeter
Depth	285.60 millimeter
Weight	4400.00 gram
Power
Input voltage	25 V
AC input voltage	100 - 240 V
Power consumption (max)	40.00 W
Certificates
Certification	CE, FCC, IC
Design
Form factor	1U
Product color	Black
Performance
Processor frequency	880.00 MHz
Memory type	DDR3-SDRAM
Internal memory	512.00 MB
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	No
Console port	RJ-45
Optical fiber
Wavelength	1490.00 nm
Management features
Switch type	Managed
