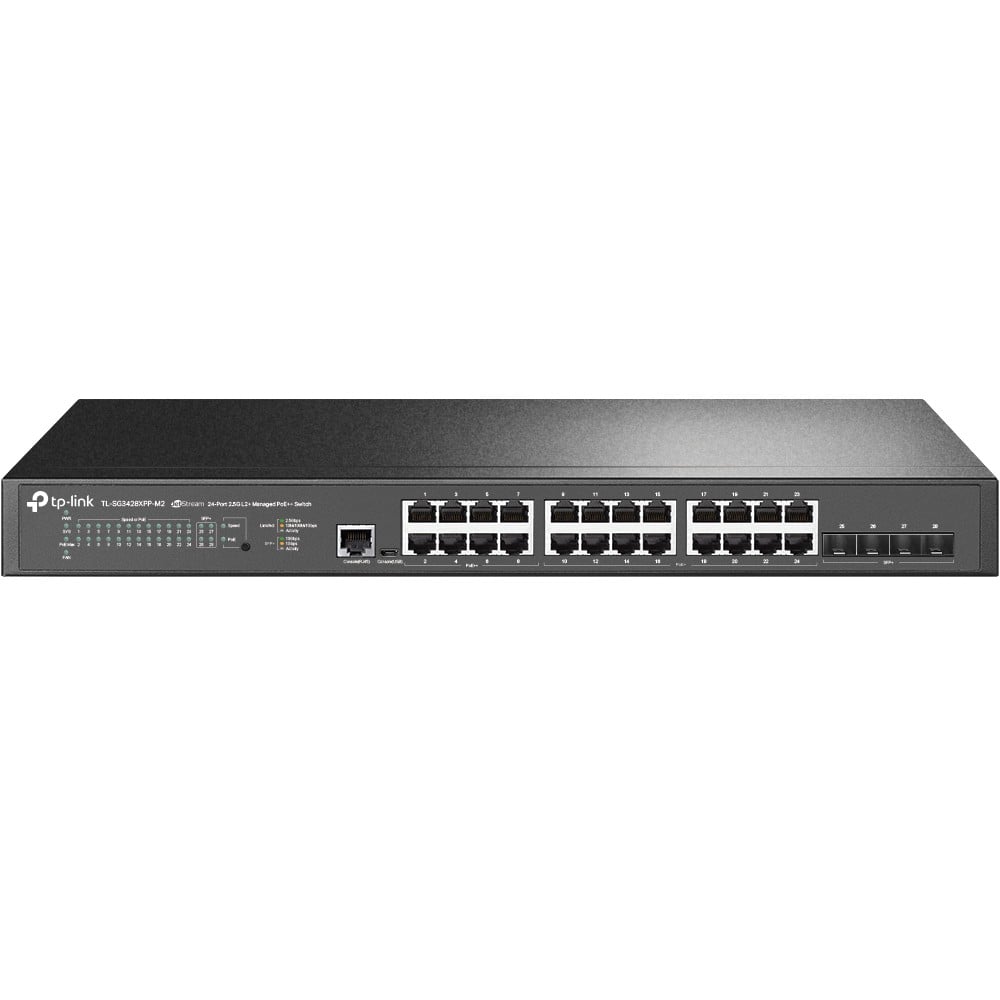

TP-Link TL-SG3428XPP-M2 JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch wit...

Write a review
1,107.00
TASK LTD
28 days
TL-SG3428XPP-M2
IN STOCK
+

The TP-Link JetStream managed switch (model: TL-SG3428XPP-M2) is engineered to fulfill the demands of high-speed networking and advanced management. With 24 RJ-45 Ethernet ports supporting 2.5G Ethernet speeds, this switch significantly enhances bandwidth and performance for data-intensive applications. Additionally, it features four 10GE SFP+ ports for high-speed fiber connections, making it an ideal choice for businesses that require robust networking solutions.


This switch supports Layer 2+ (L2+) management features, facilitating efficient network setup and management. The console port is accessible via RJ-45 or micro-USB, providing flexibility for configuration and maintenance. Operating in full duplex mode allows for simultaneous data transmission and reception, effectively doubling the bandwidth. With a large MAC address table accommodating 32,000 entries and a substantial switching capacity of 200 Gbit/s, this switch is built to handle demanding network environments.


Equipped with Power over Ethernet (PoE) capabilities, the TP-Link TL-SG3428XPP-M2 can power devices such as IP cameras and wireless access points directly through network cables, simplifying installations and reducing cable clutter. This unit is designed for rack mounting and occupies 1U of rack space, making it a space-efficient solution for any network setup. Adhering to multiple networking standards, including IEEE 802.1d and IEEE 802.1q, ensures compatibility with a wide range of network protocols, further solidifying its position as a reliable choice for advanced networking needs.




Basic data
Item nameTP-Link TL-SG3428XPP-M2 JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
Product symbolTL-SG3428XPP-M2
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • TP-LINK
Package sizes (HxWxL)440 x 100 x 530 mm
Weight gross6.10 kg
Weight & dimensions
Height
  • 44.00 millimeter
Width
  • 440.00 millimeter
Depth
  • 330.00 millimeter
Power
Power source
  • AC/PoE
AC input frequency
  • 50/60 Hz
AC input voltage
  • 100 - 240 V
Power consumption (max)
  • 629.10 W
Data transmission
Packet buffer memory
  • 16.00 MB
Switching capacity
  • 200.00 Gb/s
MAC address table
  • 32000 entries
Forwarding rate
  • 148.8 Mpps
Certificates
icecat_automatic_48024_76
  • CE
  • Federal Communications Commission (FCC)
  • RoHS
Protocols
IPv4 & IPv6 features
  • IPv4/IPv6 access-control list (ACL)
  • IPv6 ping
  • IPv6 portal
  • IPv6 tracert
Management protocols
  • SNMP v1/v2c/v3
Packaging content
Cables included
  • AC
Sustainability
Sustainability certificates
  • CE
Operational conditions
Heat dissipation
  • 2153.45
Packaging data
Package depth
  • 440.00 millimeter
Package height
  • 100.00 millimeter
Package width
  • 528.00 millimeter
Package weight
  • 6100.00 gram
Design
Number of fans
  • 3 fan(s)
Form factor
  • 1U
LED indicators
  • Yes
Product color
  • Black
Network
Networking standards
  • IEEE 802.1D
  • IEEE 802.1Q
  • IEEE 802.1ab
  • IEEE 802.1p
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3ae
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
  • IEEE 802.3bz
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
Virtual LAN features
  • MAC address-based VLAN
  • Port-based VLAN
  • Protocol-based VLAN
  • Stacked VLAN
  • Tagged VLAN
  • Voice VLAN
Ethernet LAN data rates
  • 10,100,1000,2500,10000 Mbit/s
Performance
Flash memory
  • 32.00 MB
Memory type
  • DRAM
Internal memory
  • 256.00 MB
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • 2.5G Ethernet (100/1000/2500)
Console port
  • RJ-45/Micro-USB
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
  • 500.00 W
Multicast features
Multicast Listener Discovery (MLD) snooping
  • MLD v1/v2
Security
Authentication type
  • aaa
  • ieee_802_1x
  • radius
  • tacacs_
Queue scheduling algorithms
  • SP
  • WRR+SP
  • Weighted Round Robin (WRR)
DHCP features
  • DHCP client
  • DHCP relay
  • DHCP server
  • DHCP snooping
  • DHCPv6 client
  • DHCPv6 snooping
Security algorithms
  • HTTPS
  • SSH
  • SSH-2
  • SSL/TLS
Authentication
  • Guest VLAN, MAC-based authentication, Port-based authentication
Management features
MIB support
  • RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Switch layer
  • L2+
Switch type
  • Managed
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
