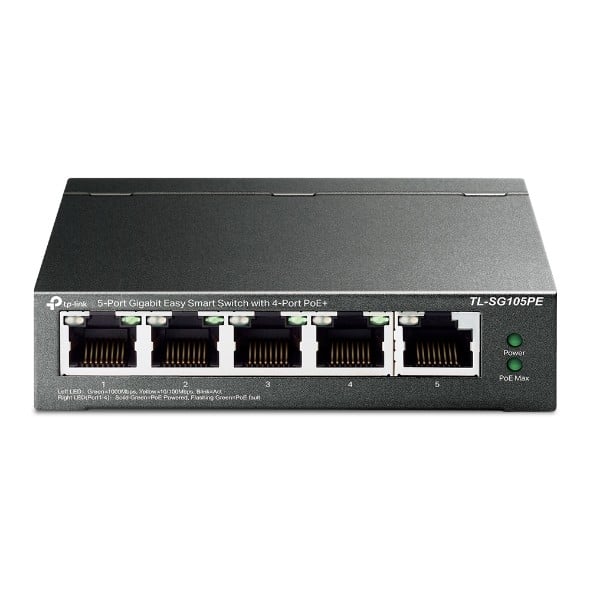

TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

Write a review
57.48
TASK LTD
28 days
TL-SG105PE
IN STOCK
+

The TP-Link TL-SG105PE is a sophisticated managed switch designed to enhance network management and expansion capabilities. Operating at Layer 2 of the OSI model, this switch features five Gigabit Ethernet ports that support speeds of 10/100/1000 Mbps, significantly improving network capacity and reliability. With a switching capacity of 10 Gbit/s and a MAC address table accommodating 2000 entries, it ensures seamless data transmission even during peak traffic periods.

One of the standout features of the TP-Link TL-SG105PE is its Power over Ethernet (PoE+) functionality, available on four of its ports. This capability allows for both data and electrical power to be delivered to PoE-enabled devices, such as IP cameras and VoIP phones, through a single cable. This not only simplifies installation but also reduces cable clutter, making it an ideal solution for environments where space and organization are paramount.

Supporting multiple networking standards, including IEEE 802.1Q, IEEE 802.1p, and various IEEE 802.3 protocols, the TP-Link TL-SG105PE ensures compatibility and interoperability with existing network infrastructures. Its advanced features, such as VLAN support for traffic segmentation, make it particularly suitable for small to medium-sized business networks looking for efficient management and enhanced performance.



Basic data
Item nameTP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+
Product symbolTL-SG105PE
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • TP-LINK
Package sizes (HxWxL)90 x 100 x 180 mm
Weight gross0.80 kg
Logistics data
Harmonized System (HS) code
  • 85176990
Weight & dimensions
Height
  • 25.00 millimeter
Width
  • 99.80 millimeter
Depth
  • 98.00 millimeter
Power
Power source
  • DC
Input voltage
  • 53.5 V
Input current
  • 1.31 A
Power consumption (max)
  • 75.16 W
Data transmission
Packet buffer memory
  • 1.00 MB
Switching capacity
  • 10.00 Gb/s
MAC address table
  • 2000 entries
Forwarding rate
  • 7.44 Mpps
Certificates
Certification
  • FCC, CE, RoHS
Operational conditions
Heat dissipation
  • 256.30
Packaging data
Package depth
  • 196.00 millimeter
Package height
  • 121.00 millimeter
Package width
  • 131.00 millimeter
Package weight
  • 770.00 gram
Design
LED indicators
  • Activity, Link, PoE, Power, Speed, Status
Product color
  • Black
Network
Networking standards
  • IEEE 802.1Q
  • IEEE 802.1p
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3x
Virtual LAN features
  • Port-based VLAN
  • Tagged VLAN
Cable types supported
  • Cat3
  • Cat4
  • Cat5
  • Cat5e
  • Cat6
Copper ethernet cabling technology
  • 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
  • 65.00 W
Power over Ethernet (PoE) power per port
  • 30.00 W
Management features
Switch layer
  • L2
Switch type
  • Managed
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
