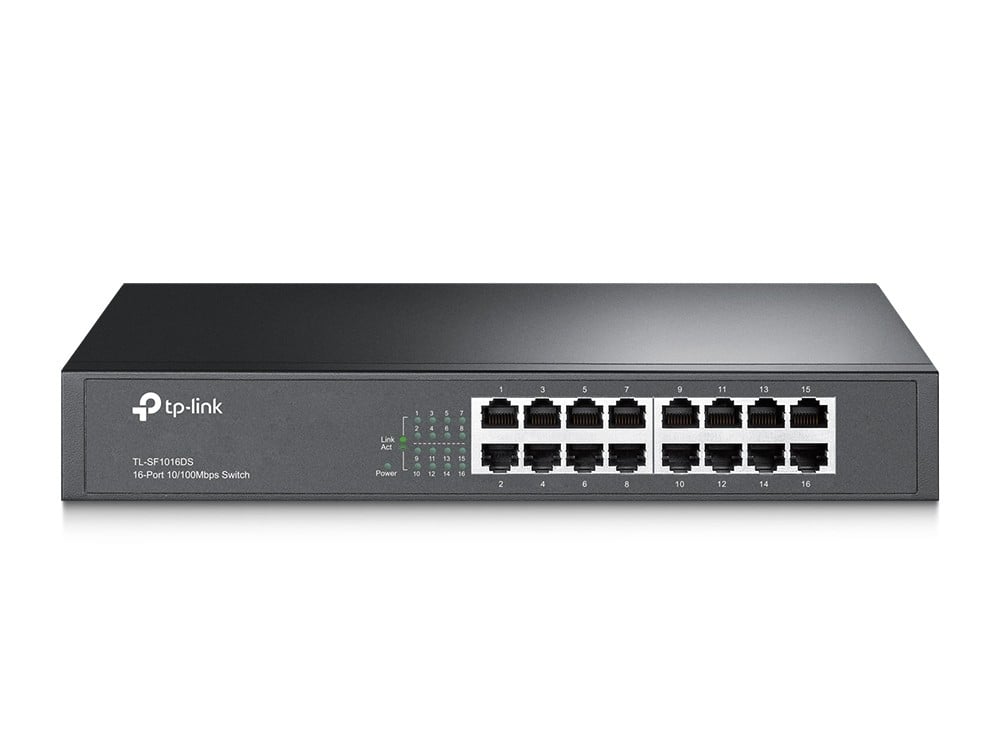

TP-Link TL-SF1016DS 16-Port 10/100 Mbps Switch

Write a review
49.76
TASK LTD
28 days
TL-SF1016DS
IN STOCK
+

The TP-Link TL-SF1016DS is an advanced unmanaged switch designed to enhance network connectivity with ease and efficiency. Featuring 16 RJ-45 Ethernet ports that support Fast Ethernet connections at speeds of 10/100 Mbps, this switch is ideal for a variety of networking applications, from small offices to larger enterprise environments. Its non-blocking switching architecture ensures a maximum switching capacity of 3.2 Gbit/s, allowing it to effectively manage data traffic without bottlenecks.


Equipped with a robust MAC address table capable of storing up to 8000 entries, the TL-SF1016DS guarantees smooth transmission and efficient traffic filtering within your network. The switch supports full duplex mode, enabling simultaneous communication in both directions, which significantly enhances overall performance. Compliance with multiple networking standards, including IEEE 802.3i, IEEE 802.3u, and IEEE 802.3x, ensures compatibility with a wide range of network devices, making it a versatile choice for various setups.


Designed for rack mounting, the TP-Link TL-SF1016DS occupies just 1U of rack space, making it a perfect fit for server rooms and data centers. Its durable metal casing not only provides longevity but also aids in heat dissipation, ensuring stable operation even under heavy loads. With its reliable performance and advanced features, the TL-SF1016DS stands out as a superior choice for those seeking a dependable networking solution from a trusted manufacturer like TP-Link.




Basic data
Item nameTP-Link TL-SF1016DS 16-Port 10/100 Mbps Switch
Product symbolTL-SF1016DS
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • TP-LINK
Package sizes (HxWxL)250 x 400 x 80 mm
Weight gross2 kg
Weight & dimensions
Height
  • 44.00 millimeter
Width
  • 294.00 millimeter
Depth
  • 180.00 millimeter
Power
Power source
  • AC
AC input frequency
  • 50/60 Hz
AC input voltage
  • 100 - 240 V
Power consumption (max)
  • 2.06 W
Data transmission
Packet buffer memory
  • 2.00 MB
Throughput
  • 2.38 Mpps
Switching capacity
  • 3.20 Gb/s
MAC address table
  • 8000 entries
Certificates
Certification
  • FCC, RoHS
icecat_automatic_48024_76
  • CE
  • Federal Communications Commission (FCC)
  • RoHS
Protocols
Supported network protocols
  • TCP/IP
Packaging content
Cables included
  • AC
Operational conditions
Heat dissipation
  • 7.03
Packaging data
Package depth
  • 400.00 millimeter
Package height
  • 80.00 millimeter
Package width
  • 250.00 millimeter
Package weight
  • 1950.00 gram
Design
Number of fans
  • 0 fan(s)
Form factor
  • 1U
Housing material
  • Metal
Product color
  • Black
Network
Networking standards
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3x
Cable types supported
  • Cat3
  • Cat4
  • Cat5
  • Cat5e
Copper ethernet cabling technology
  • 10BASE-T, 100BASE-T
Ethernet LAN data rates
  • 10,100 Mbit/s
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • Fast Ethernet (10/100)
Management features
Switch layer
  • L2
Switch type
  • Unmanaged
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
