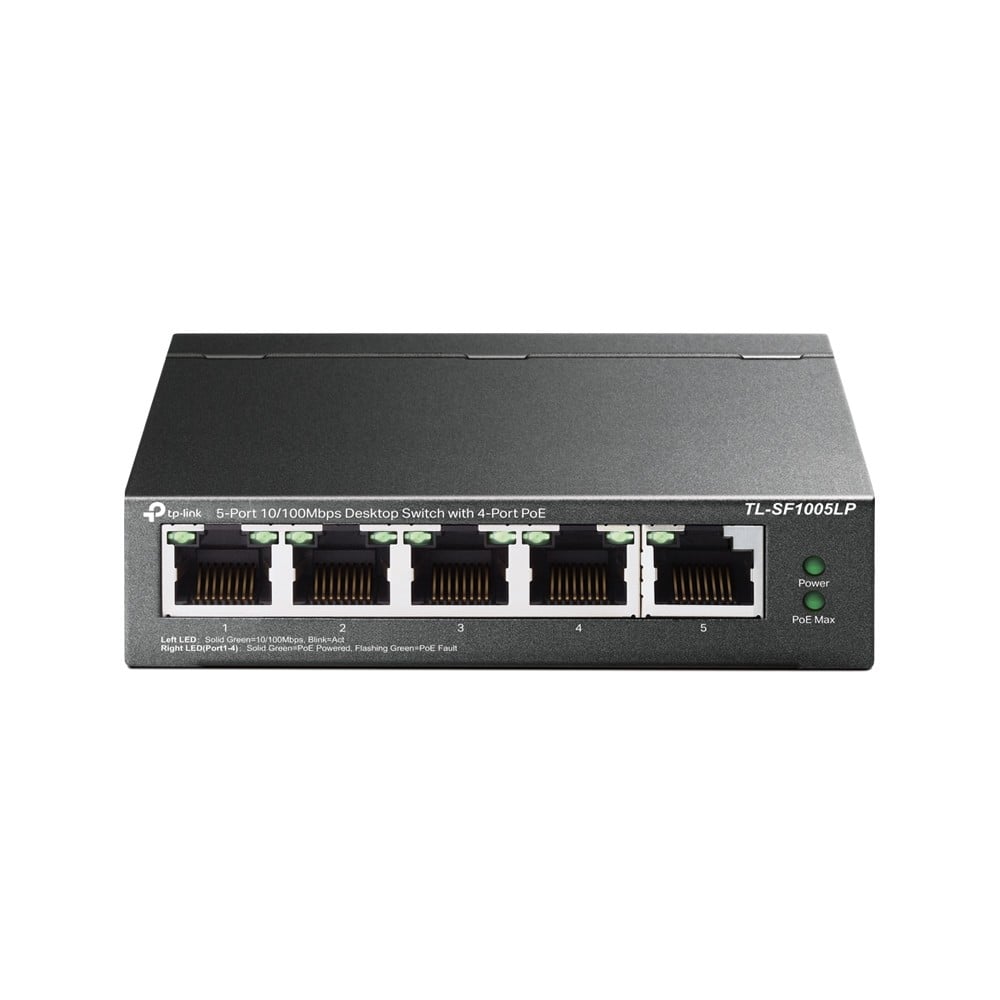

TP-Link TL-SF1005LP 5-Port 10/100 Mbps Desktop Switch with 4-Port PoE

Write a review
32.93
TASK LTD
28 days
TL-SF1005LP
IN STOCK
+

The TP-Link TL-SF1005LP is a reliable 5-Port 10/100Mbps Desktop Switch designed to enhance your network connectivity. This unmanaged switch features five RJ-45 Ethernet ports that support speeds of 10/100 Mbps, making it an ideal solution for small offices and home environments. With a robust MAC address table supporting up to 2000 entries and a switching capacity of 1 Gbit/s, it ensures efficient data handling and minimal traffic congestion, allowing for seamless communication between devices.


One of the standout features of the TP-Link TL-SF1005LP is its Power over Ethernet (PoE) capability on four of its ports. This functionality simplifies the deployment of network devices such as IP cameras, VoIP phones, and wireless access points by eliminating the need for separate power supplies. This is particularly advantageous in locations where power outlets are limited or unavailable, making installation straightforward and efficient.


Compliant with various networking standards including IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, and IEEE 802.3x, the TP-Link TL-SF1005LP ensures broad compatibility and reliable performance across different network environments. Its full duplex mode operation further enhances data flow, providing a significant advantage over competing models that may not offer such efficiency. This switch is an excellent choice for users looking to expand their network capabilities without compromising on performance.




Basic data
Item nameTP-Link TL-SF1005LP 5-Port 10/100 Mbps Desktop Switch with 4-Port PoE
Product symbolTL-SF1005LP
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • TP-LINK
Package sizes (HxWxL)140 x 120 x 210 mm
Weight gross0.70 kg
Logistics data
Harmonized System (HS) code
  • 85176990
Weight & dimensions
Height
  • 25.00 millimeter
Width
  • 100.00 millimeter
Depth
  • 98.00 millimeter
Power
Power source
  • DC/PoE
Input voltage
  • 53.5 V
Input current
  • 0.81 A
AC input frequency
  • 50 Hz
AC input voltage
  • 220 V
Power consumption (max)
  • 47.00 W
Data transmission
Switching capacity
  • 1.00 Gb/s
MAC address table
  • 2000 entries
Forwarding rate
  • 0.744 Mpps
Certificates
icecat_automatic_48024_76
  • CE
  • Federal Communications Commission (FCC)
  • RoHS
Sustainability
Sustainability certificates
  • CE
Operational conditions
Heat dissipation
  • 160.27
Packaging data
Package depth
  • 196.00 millimeter
Package height
  • 121.00 millimeter
Package width
  • 131.00 millimeter
Package weight
  • 740.00 gram
Design
LED indicators
  • Yes
Product color
  • Black
Network
Networking standards
  • IEEE 802.3af
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3x
Cable types supported
  • Cat3
  • Cat4
  • Cat5
  • Cat5e
Copper ethernet cabling technology
  • 10BASE-T, 100BASE-TX
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • Fast Ethernet (10/100)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
  • 41.00 W
Management features
Switch layer
  • L2
Switch type
  • Unmanaged
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
