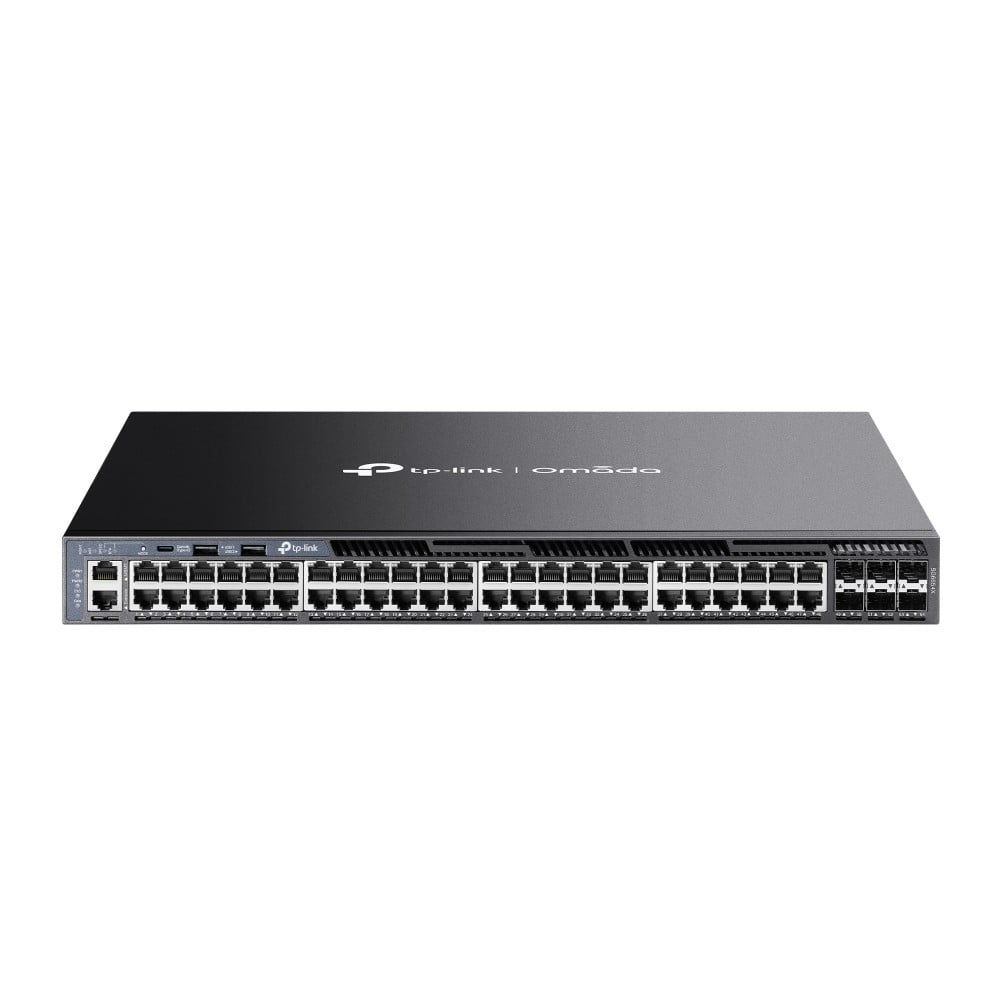

TP-Link SG6654X Ethernet Switch

Write a review
3,050.70
TASK LTD
28 days
SG6654X
IN STOCK
+
The TP-Link Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G slots offers advanced network management and security features. As a managed switch, it provides comprehensive control over data traffic, ensuring efficient data transfer and network stability. The switch operates at Layer 3, which supports routing capabilities and enhances network segmentation with better traffic management. Equipped with 48 Gigabit Ethernet ports, this device can handle large amounts of data transmission at speeds of 10/100/1000 Mbps. Additionally, it includes 6 10G slots for high-speed network connections and expansions. The switch also features two USB 2.0 ports and a console port that supports both RJ-45 and USB Type-C connections, offering flexibility in management and setup configurations. The MAC address table supports up to 32,000 entries, and the switch boasts a switching capacity of 216 Gbit/s, facilitating swift and reliable data processing. It adheres to networking standards such as IEEE 802.1Q, IEEE 802.1p, and IEEE 802.3x, ensuring compatibility with a wide range of network protocols. Designed for rack mounting, this switch has a 1U form factor, making it suitable for standard rack installations in data centers and server rooms.

Basic data
Item nameTP-Link SG6654X Ethernet Switch
Product symbolSG6654X
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • TP-LINK
Package sizes (HxWxL)44 x 440 x 380 mm
Weight gross9.30 kg
Weight & dimensions
Height
  • 44.00 millimeter
Width
  • 440.00 millimeter
Depth
  • 380.00 millimeter
Power
Power source
  • AC
AC input frequency
  • 50/60 Hz
AC input voltage
  • 100 - 240 V
Power consumption (max)
  • 39.80 W
Data transmission
Packet buffer memory
  • 3.00 MB
Switching capacity
  • 216.00 Gb/s
MAC address table
  • 32000 entries
Forwarding rate
  • 160.7 Mpps
Packaging content
Cables included
  • AC, LAN (RJ-45)
Operational conditions
Heat dissipation
  • 135.81
Design
Number of fans
  • 4 fan(s)
Form factor
  • 1U
LED indicators
  • Yes
Product color
  • Black
Network
Networking standards
  • IEEE 802.1Q
  • IEEE 802.1p
  • IEEE 802.3x
Virtual LAN features
  • MAC address-based VLAN
  • Multicast VLAN
  • Private VLAN
  • Voice VLAN
Ethernet LAN data rates
  • 10,100,1000 Mbit/s
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • Gigabit Ethernet (10/100/1000)
Console port
  • RJ-45/USB Type-C
Security
Authentication type
  • radius
DHCP features
  • DHCP relay
  • DHCP snooping
  • DHCPv6 snooping
Authentication
  • Auto VLAN, MAC-based authentication, Port-based authentication
Management features
Switch layer
  • L3
Switch type
  • Managed
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
