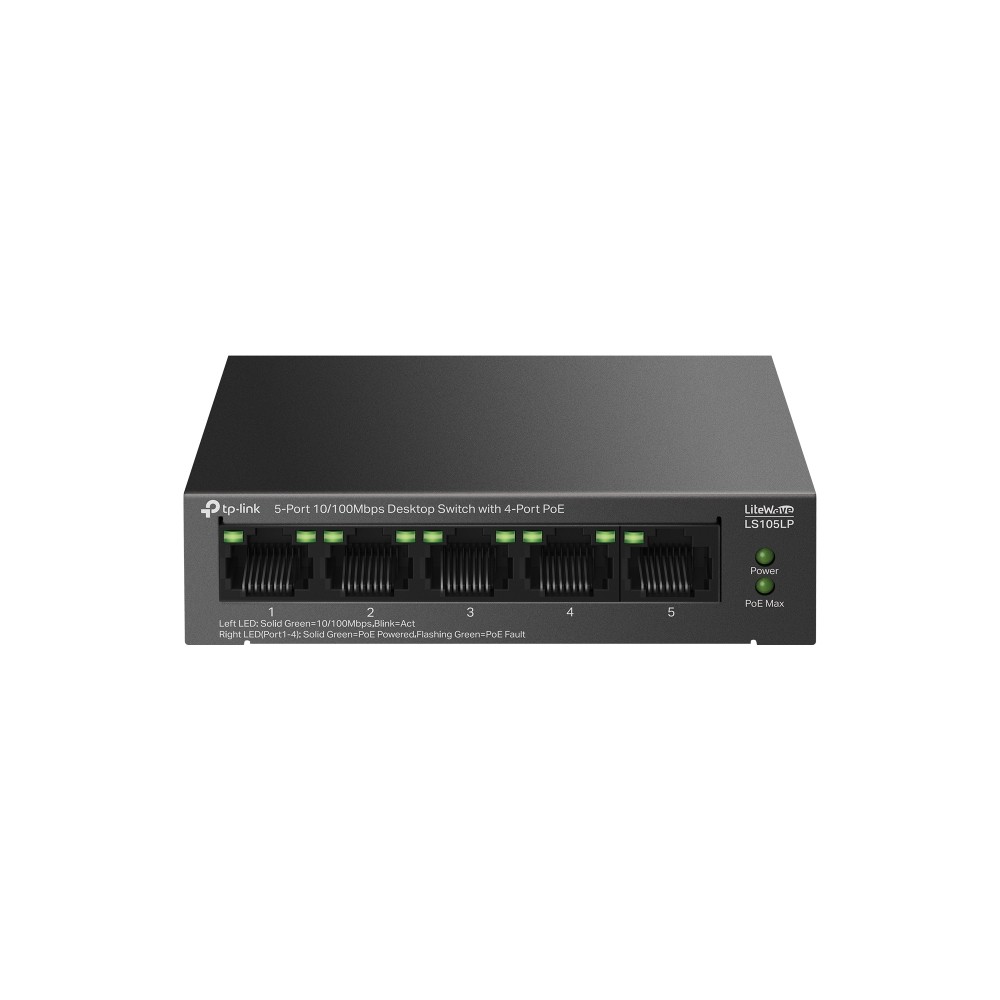

TP-Link LS105LP 5-Port 10/100 Mbps Desktop Switch with 4-Port PoE

Write a review
23.03
TASK LTD
28 days
LS105LP
IN STOCK
+

The TP-Link LS105LP is a versatile desktop switch designed to enhance network connectivity while providing power to various devices. With five Fast Ethernet ports supporting speeds of up to 100 Mbps, this switch is ideal for small business and home office environments. Notably, four of these ports are equipped with Power over Ethernet (PoE) capability, allowing for the simultaneous transfer of electrical power and data to devices such as IP cameras and VoIP phones. This feature simplifies cabling and significantly reduces installation costs, making it a practical choice for users looking to streamline their network setup.


Engineered for both durability and compactness, the TP-Link LS105LP can be easily placed on a desktop or mounted on a wall, providing flexibility in various installation scenarios. The switch operates quietly, thanks to its fanless design, ensuring it remains unobtrusive in any office setting. Additionally, the device supports Auto-MDI/MDIX, which eliminates the need for crossover cables, facilitating a straightforward plug-and-play setup that enhances user convenience.


With a total PoE power budget of 41 watts, the TP-Link LS105LP efficiently manages multiple devices without requiring additional power sources. This capability ensures a reliable power supply for all connected devices, setting it apart from many competitors in the market. As a product from TP-Link, a leader in networking solutions, the LS105LP stands out as an effective solution for expanding network connections while delivering power to supported devices, making it an essential addition to any network infrastructure.




Basic data
Item nameTP-Link LS105LP 5-Port 10/100 Mbps Desktop Switch with 4-Port PoE
Product symbolLS105LP
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • TP-LINK
Package sizes (HxWxL)130 x 80 x 160 mm
Weight gross0.50 kg
Weight & dimensions
Height
  • 25.00 millimeter
Width
  • 100.00 millimeter
Depth
  • 98.00 millimeter
Power
Power source
  • DC/PoE
Input current
  • 0.81 A
AC input frequency
  • 50 Hz
AC input voltage
  • 220 V
DC input voltage
  • 53.5 V
Power consumption (max)
  • 46.45 W
Data transmission
Switching capacity
  • 1.00 Gb/s
MAC address table
  • 2000 entries
Forwarding rate
  • 0.744 Mpps
Certificates
Certification
  • CE, FCC, RoHS
Operational conditions
Heat dissipation
  • 157.93
Packaging data
Package type
  • Box
Design
Number of fans
  • 0 fan(s)
LED indicators
  • Yes
Product color
  • Black
Network
Networking standards
  • IEEE 802.3af
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3x
Cable types supported
  • Cat3
  • Cat4
  • Cat5
  • Cat5e
Copper ethernet cabling technology
  • 10BASE-T, 100BASE-TX
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • Fast Ethernet (10/100)
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
  • 15.40 W
Management features
Switch layer
  • L2
Switch type
  • Unmanaged
