Teltonika TSW100 Industrial Unmanaged Switch

Write a review

€81.92

Vendor: TASK LTD

Return period: 28 days

CODE: TSW100000000

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

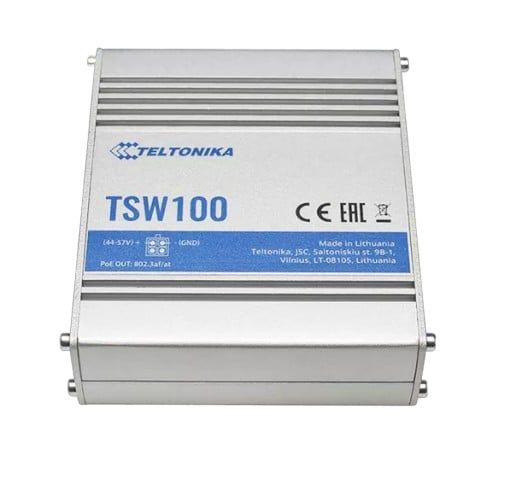

The TSW100 is an unmanaged 5-port full Gigabit Ethernet switch that supports Power over Ethernet (PoE) under the IEEE 802.3af and IEEE 802.3at standards. It is designed to streamline the installation process by centralizing the power supply, allowing each port to deliver up to 30 watts of power. This feature simplifies the deployment of network devices such as IP cameras and wireless access points by eliminating the need for separate power sources. Equipped with five basic switching RJ-45 Ethernet ports that support Gigabit Ethernet (10/100/1000), the TSW100 offers a high-bandwidth solution for industrial Ethernet networks. It features a MAC address table capable of holding 2000 entries, enhancing its efficiency in network management. The switch operates within a DC input voltage range of 7 - 58 V, making it versatile for various industrial applications. Additionally, it adheres to the IEEE 802.3az standard, which enhances energy efficiency during periods of low data activity. The metallic blue casing not only provides durability but also adds an aesthetic touch to its industrial design.

Basic data
Item name	Teltonika TSW100 Industrial Unmanaged Switch
Product symbol	TSW100000000
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	Teltonika
Package sizes (HxWxL)	150 x 80 x 170 mm
Weight gross	0.80 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	32.00 millimeter
Width	115.00 millimeter
Depth	95.00 millimeter
Power
DC input voltage	7 - 58 V
Power consumption (max)	129.00 W
Data transmission
Packet buffer memory	0.13 MB
MAC address table	2000 entries
Certificates
Certification	CE/RED, EAC, RoHS, WEEE Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 EN 61000-4-2:2009 EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2 EN 61000-4-3:2006 + A1:2008 + A2:2010 EN 61000-4-4:2012 EN 61000-4-5:2014 EN 61000-4-6:2014 EN 61000-4-11:2004
Design
Housing material	Aluminum
LED indicators	Power, Status
Product color	Blue, Metallic
Network
Networking standards	IEEE 802.3af IEEE 802.3at IEEE 802.3az
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	120.00 W
Power over Ethernet (PoE) power per port	30.00 W
Management features
Switch layer	L2
Switch type	Unmanaged
