Home/IT & Network Security / Networking Hardware / Network Switches/S5700 Series Ethernet Switch - 8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE++, DIN Rail Mountin

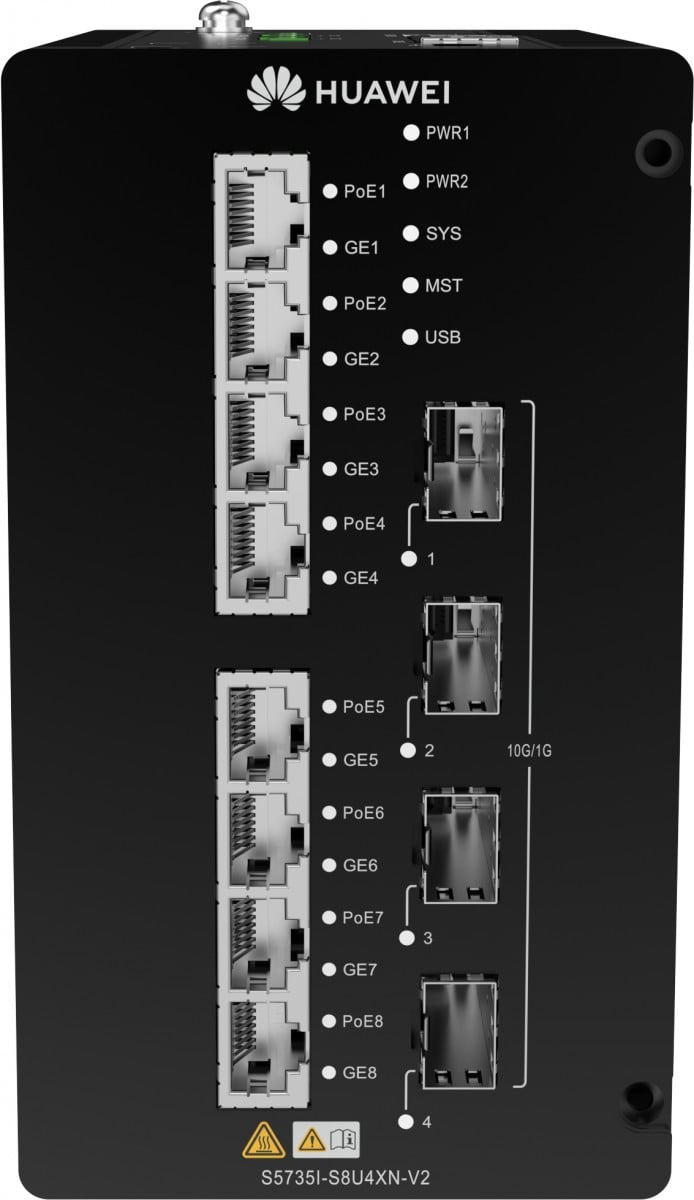

S5700 Series Ethernet Switch - 810/100/1000BASE-T ports, 410GE SFP+ ports, PoE++, DIN Rail Mountin

Return period: 28 days

CODE: S5735I-S8U4XN-V2

Huawei CloudEngine S5735I-S8U4XN-V2. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45...

Full description

€1,372.68

+ −

Vendor: TASK LTD

€1,372.68

Description
Reviews

Huawei CloudEngine S5735I-S8U4XN-V2. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 96 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x. DC input voltage: 54 - 57 V. Power over Ethernet (PoE). Rack mounting

Basic data
Item name	S5700 Series Ethernet Switch - 810/100/1000BASE-T ports, 410GE SFP+ ports, PoE++, DIN Rail Mountin
Product symbol	S5735I-S8U4XN-V2
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	HUAWEI
Package sizes (HxWxL)	120 x 200 x 240 mm
Weight gross	2.25 kg
Other features
Power availability	1.00 W
Weight & dimensions
Height	150.00 millimeter
Width	86.00 millimeter
Depth	133.00 millimeter
Weight	1860.00 gram
Power
Power source	DC/PoE
Power consumption (typical)	20.45 W
Surge protection voltage	7.00 KV
DC input voltage	54 - 57 V
Power consumption (max)	21.70 W
Data transmission
Switching capacity	96.00 Gb/s
MAC address table	32000 entries
Forwarding rate	72 Mpps
Protocols
Routing protocols	BGP BGP4 IS-IS OSPF OSPFv3 RIP-1 RIP-2 RIPng VRRP
IPv4 & IPv6 features	IPv4 FIB IPv6 FIB
Operational conditions
Heat dissipation	69.74
Packaging data
Package depth	205.00 millimeter
Package height	235.00 millimeter
Package width	120.00 millimeter
Package weight	2210.00 gram
Design
International Protection (IP) code	IP40
LED indicators	Yes
Product color	Black
Network
Networking standards	IEEE 802.1D IEEE 802.1s IEEE 802.1w IEEE 802.1x
Virtual LAN features	Multiple VXLAN (MUX VLAN) Voice VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
Noise level	0.00 dB
Mean time to repair (MTTR)	2.00 h
Flash memory	1024.00 MB
Internal memory	2048.00 MB
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Fiber optic connector	SFP+
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	421.70 W
Security
Authentication type	aaa hwtacacs nac_ssh_v2_0 network_access_control__nac_ radius
MAC address entries	Blackhole MAC address entries Dynamic MAC address entries Static MAC address entries
DHCP features	DHCP client DHCP relay DHCP server DHCP snooping DHCPv6 client DHCPv6 relay
Security algorithms	HTTPS SNMP SNMPv2 SNMPv3
Management features
Switch layer	L2
Switch type	Managed
