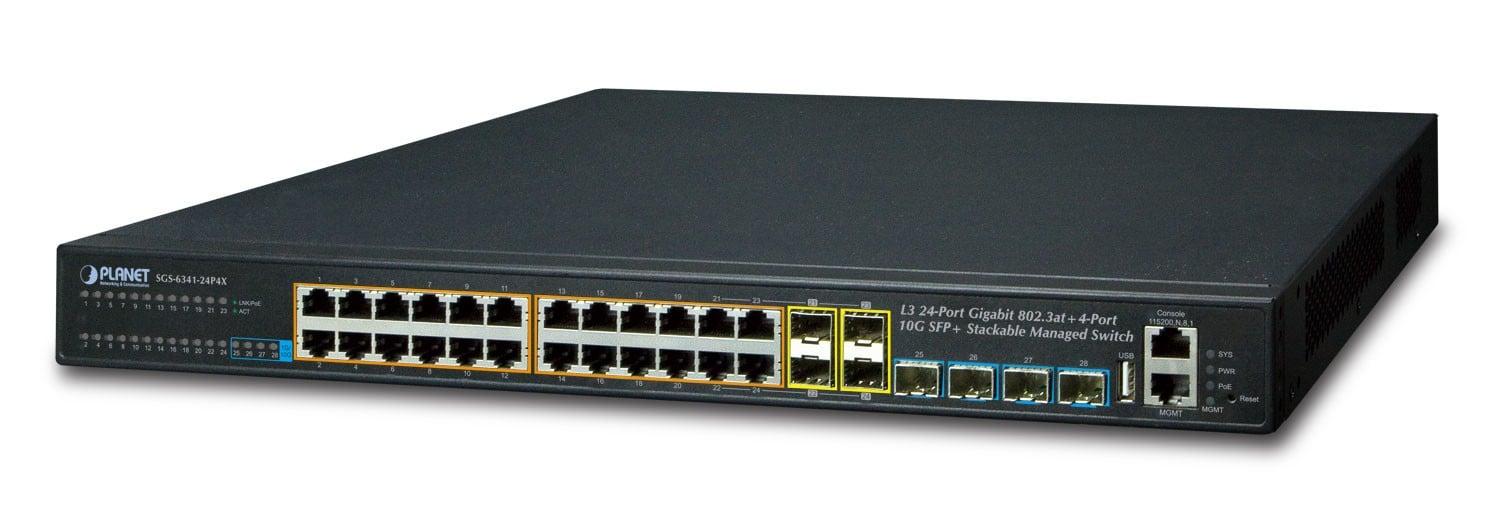

Planet SGS-6341-24P4X Layer 3 24-Port 10/100/1000T 802.3at PoE with 4-port shared 100/1000X SFP +...

Write a review

€921.17

Vendor: TASK LTD

Return period: 28 days

CODE: SGS-6341-24P4X

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET SGS-6341-24P4X. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RS-232. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Basic data
Item name	Planet SGS-6341-24P4X Layer 3 24-Port 10/100/1000T 802.3at PoE with 4-port shared 100/1000X SFP + 4-Port 10G SFP+ Stackable Managed Gigabit Switch (370W, Multic
Product symbol	SGS-6341-24P4X
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	560 x 120 x 460 mm
Weight gross	6 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	43.60 millimeter
Width	440.00 millimeter
Depth	320.00 millimeter
Weight	4503.00 gram
Power
Power consumption (typical)	370.00 W
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Power consumption (max)	435.00 W
Data transmission
Packet buffer memory	1.50 MB
Throughput	95.23 Mpps
Switching capacity	128.00 Gb/s
MAC address table	16000 entries
Certificates
Certification	FCC Part 15 Class A, CE
Packaging content
Cables included	AC, LAN (RJ-45)
Operational conditions
Heat dissipation	1484.28
Design
Form factor	1U
LED indicators	Yes
Product color	Black
Network
Networking standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3ab IEEE 802.3ad IEEE 802.3ae IEEE 802.3af IEEE 802.3at IEEE 802.3u IEEE 802.3x IEEE 802.3z
Virtual LAN features	Port-based VLAN Private VLAN Tagged VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Performance
Flash memory	16.00 MB
Processor frequency	400.00 MHz
Internal memory	512.00 MB
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Compatible memory cards	Not supported
Console port	RS-232
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	370.00 W
Power over Ethernet (PoE) power per port	30.80 W
Security
Security algorithms	SNMP SSH SSH-2
Authentication	Auto VLAN, MAC-based authentication, Port-based authentication
Management features
MIB support	Yes
Switch layer	L3
Switch type	Managed
