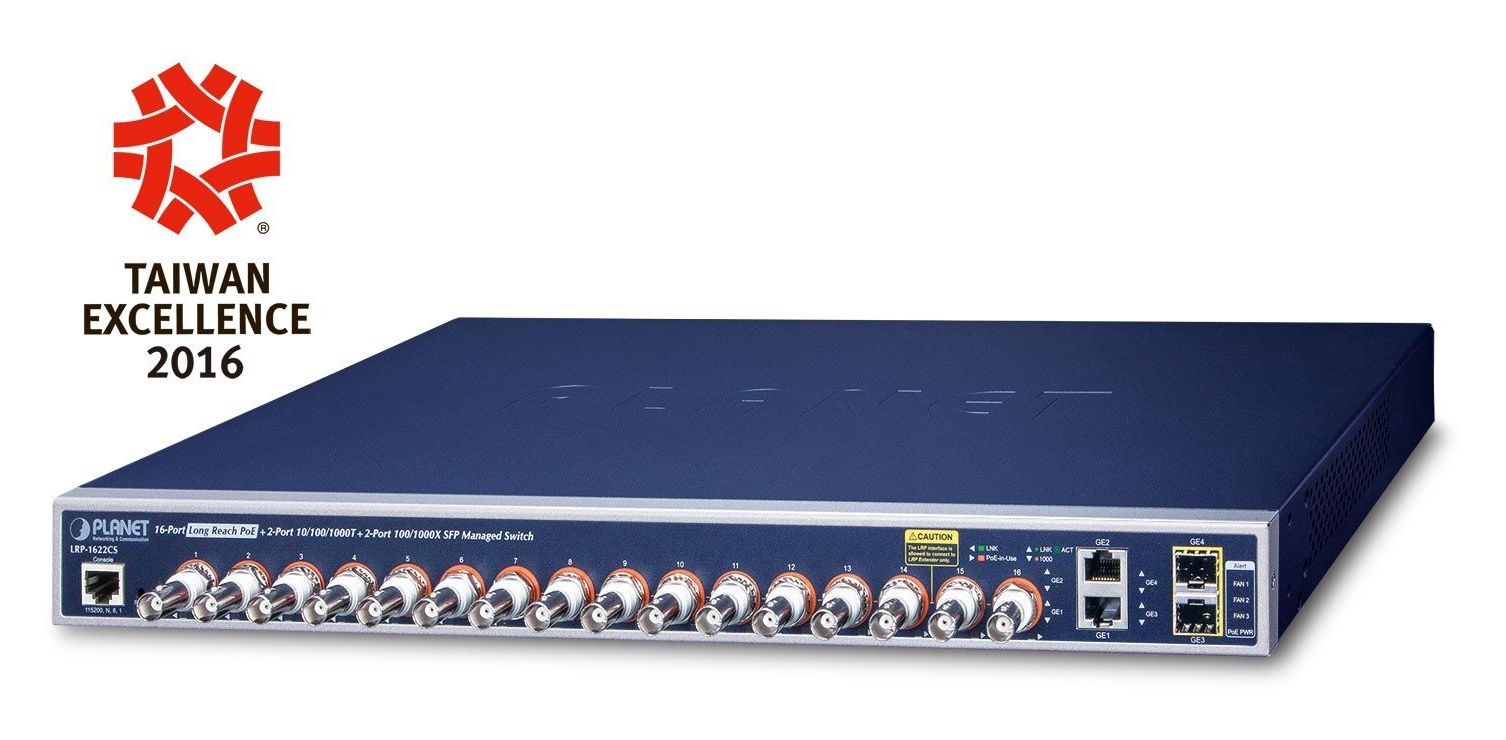

Planet LRP-1622CS IPv4/IPv6, 16-Port Coax + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Long Reach...

Write a review

€1,723.35

Vendor: TASK LTD

Return period: 28 days

CODE: LRP-1622CS

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET LRP-1622CS. Switch type: Managed, Switch layer: L2/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 2, Console port: RS-232. Full duplex. MAC address table: 8000 entries, Switching capacity: 11.2 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Basic data
Item name	Planet LRP-1622CS IPv4/IPv6, 16-Port Coax + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Long Reach POE over Coaxial Managed Switch (440W)
Product symbol	LRP-1622CS
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	44.5 x 440 x 300 mm
Weight gross	4.43 kg
Weight & dimensions
Height	44.50 millimeter
Width	440.00 millimeter
Depth	300.00 millimeter
Weight	4430.00 gram
Power
Input voltage	52 V
Power consumption (typical)	540.00 W
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Data transmission
Switching capacity	11.20 Gb/s
MAC address table	8000 entries
Certificates
Certification	FCC Part 15 Class A, CE
Packaging content
Cables included	RS-232
Design
Number of fans	3 fan(s)
Form factor	1U
Housing material	Metal
LED indicators	Yes
Product color	Blue
Network
Networking standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3u IEEE 802.3x IEEE 802.3z
Virtual LAN features	Port-based VLAN Private VLAN Protocol-based VLAN Tagged VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Performance
Maximum cable length	1200.00 meter
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Compatible memory cards	Not supported
Console port	RS-232
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	440.00 W
Security
DHCP features	DHCP client DHCP server
Security algorithms	128-bit AES SNMP SSH SSL/TLS
Authentication	Port-based authentication
Optical fiber
Fiber type	Multi-mode
Fiber ethernet cabling technology	1000BASE‑LX 100BASE-FX 100BASE-SX
Transmission distance (max)	2.00 kilometer
Management features
MIB support	RFC 1213 MIB-II, RFC 1215 Generic Traps, RFC 1493 Bridge MIB, RFC 2674 Bridge MIB Extensions, RFC 2737 Entity MIB (Version 2), RFC 2819 RMON (1, 2, 3, 9), RFC 2863 Interface Group MIB, RFC 3635 Ethernet-like MIB
Switch layer	L2/L4
Switch type	Managed
