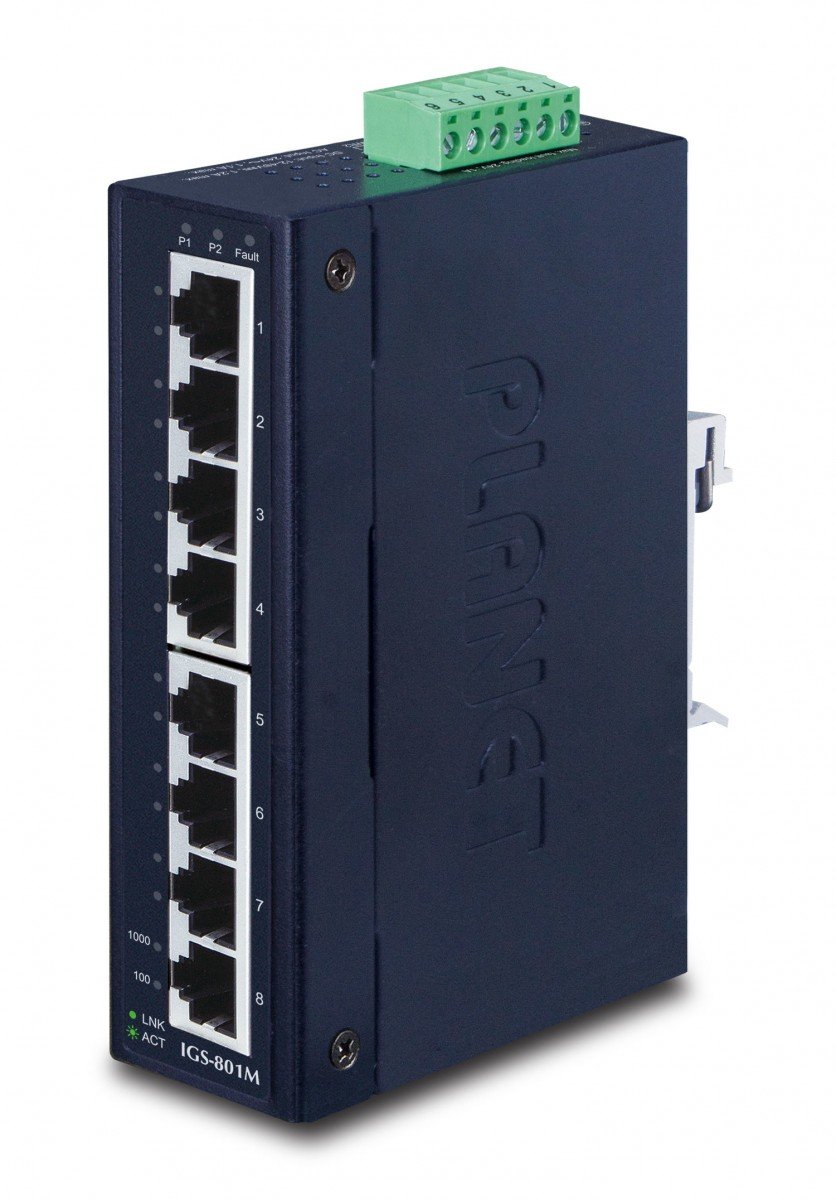

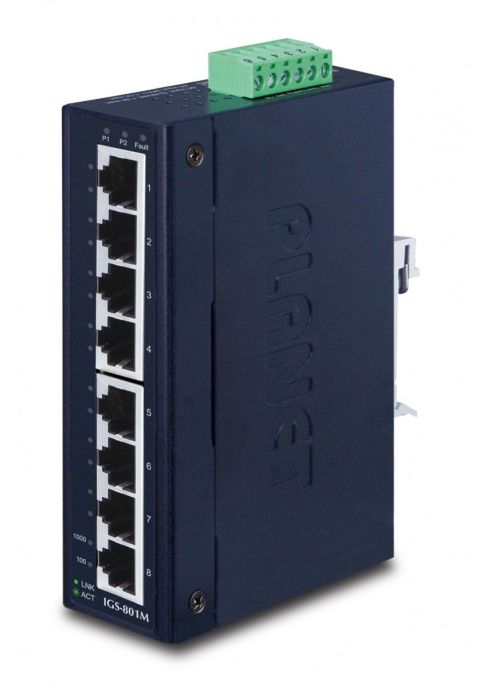

Planet IGS-801M IP30 Slim type 8-Port Industrial Manageable Gigabit Ethernet Switch (-40 to 75 de...

Write a review
219.02
TASK LTD
28 days
IGS-801M
IN STOCK
+
PLANET IGS-801M. Switch type: Managed, Switch layer: L2/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Wall mountable, Rack mounting, Form factor: 1U

Basic data
Item namePlanet IGS-801M IP30 Slim type 8-Port Industrial Manageable Gigabit Ethernet Switch (-40 to 75 degree C, dual redundant power input on 12-48VDC / 24VAC terminal
Product symbolIGS-801M
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • PLANET
Package sizes (HxWxL)210 x 150 x 45 mm
Weight gross0.60 kg
Logistics data
Harmonized System (HS) code
  • 85176990
Weight & dimensions
Height
  • 135.00 millimeter
Width
  • 32.00 millimeter
Depth
  • 87.00 millimeter
Weight
  • 472.00 gram
Power
Power consumption (typical)
  • 4.50 W
Power consumption (max)
  • 10.00 W
Data transmission
Throughput
  • 11.9 Mpps
Switching capacity
  • 16.00 Gb/s
MAC address table
  • 8000 entries
Certificates
Certification
  • FCC, CE
Protocols
Management protocols
  • Telnet/SNMP
Supported network protocols
  • IPv4 / IPv6
Operational conditions
Heat dissipation
  • 15.00
Design
Form factor
  • 1U
International Protection (IP) code
  • IP30
Housing material
  • Metal
LED indicators
  • Yes
Product color
  • Blue
Network
Networking standards
  • IEEE 802.1Q
  • IEEE 802.1ab
  • IEEE 802.1p
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3az
  • IEEE 802.3u
  • IEEE 802.3x
Virtual LAN features
  • Private VLAN
  • Protocol-based VLAN
  • Stacked VLAN
  • Tagged VLAN
Copper ethernet cabling technology
  • 10BASE-T, 100BASE-TX, 1000BASE-T
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • Gigabit Ethernet (10/100/1000)
Security
Security algorithms
  • SSH
  • SSL/TLS
Authentication
  • Port-based authentication
Management features
Switch layer
  • L2/L4
Switch type
  • Managed
