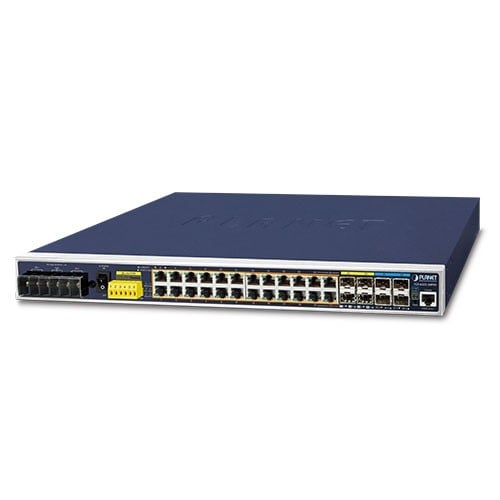

Planet IGS-6325-24P4X IP30 19" Rack Mountable Industrial L3 Managed PoE Switch, 24-Port 10/100/10...

Write a review
1,222.66
TASK LTD
28 days
IGS-6325-24P4X
IN STOCK
+
PLANET IGS-6325-24P4X. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP modules quantity: 4, Installed SFP+ modules quantity: 4, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. DC input voltage: 48 - 56 V. Power connector: Terminal block (3-pin). Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Basic data
Item namePlanet IGS-6325-24P4X IP30 19" Rack Mountable Industrial L3 Managed PoE Switch, 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ (-40 to 75 C, dual redundant
Product symbolIGS-6325-24P4X
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • PLANET
Package sizes (HxWxL)100 x 400 x 560 mm
Weight gross5 kg
Weight & dimensions
Height
  • 44.00 millimeter
Width
  • 440.00 millimeter
Depth
  • 300.00 millimeter
Weight
  • 3800.00 gram
Power
DC input voltage
  • 48 - 56 V
Power consumption (max)
  • 540.00 W
Data transmission
Packet buffer memory
  • 32.00 MB
Throughput
  • 95.2 Mpps
Switching capacity
  • 128.00 Gb/s
MAC address table
  • 16000 entries
Certificates
Certification
  • FCC Part 15 Class A, CE
Protocols
Routing protocols
  • OSPF
IPv4 & IPv6 features
  • IPv6 Telnet
Operational conditions
Heat dissipation
  • 1841.13
Design
Form factor
  • 1U
International Protection (IP) code
  • IP30
Housing material
  • Metal
LED indicators
  • Activity, Fault, Link, PoE, Power, Ring
Product color
  • Black, Blue
Network
Networking standards
  • IEEE 1588
  • IEEE 802.1D
  • IEEE 802.1Q
  • IEEE 802.1ab
  • IEEE 802.1ad
  • IEEE 802.1ag
  • IEEE 802.1p
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3ae
  • IEEE 802.3af
  • IEEE 802.3ah
  • IEEE 802.3at
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
Virtual LAN features
  • MAC address-based VLAN
  • Multicast VLAN
  • Private VLAN
  • Protocol-based VLAN
  • Tagged VLAN
  • Voice VLAN
Copper ethernet cabling technology
  • 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-SX, 1000BASE-T
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • Gigabit Ethernet (10/100/1000)
Console port
  • RJ-45
Fiber optic connector
  • MiniGBIC
  • SFP
  • SFP+
Power connector
  • Terminal block (3-pin)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
  • 440.00 W
Power over Ethernet (PoE) power per port
  • 36.00 W
Multicast features
Multicast Listener Discovery (MLD) snooping
  • v1/v2
Security
Queue scheduling algorithms
  • Priority queuing (PQ)
  • Weighted Round Robin (WRR)
Security algorithms
  • SNMP
  • SNMPv3
  • SSH
  • SSL/TLS
Authentication
  • Port-based authentication
Management features
Switch layer
  • L3
Switch type
  • Managed
