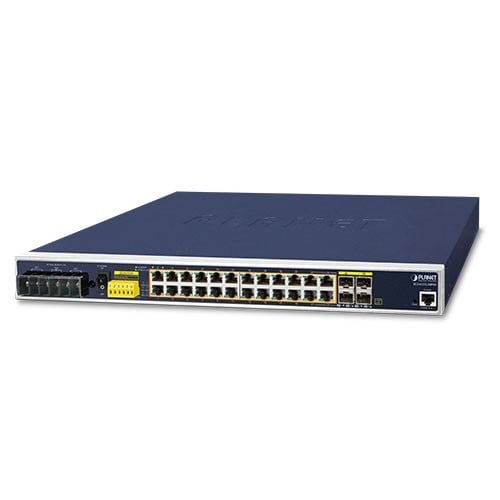

Planet IGS-6325-24P4S IP30 19" Rack Mountable Industrial L3 Managed PoE Switch, 24-Port 10/100/10...

Write a review

€1,135.68

Vendor: TASK LTD

Return period: 28 days

CODE: IGS-6325-24P4S

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET IGS-6325-24P4S. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP modules quantity: 4, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE.... DC input voltage: 48 - 56 V. Power connector: Terminal block (3-pin). Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Basic data
Item name	Planet IGS-6325-24P4S IP30 19" Rack Mountable Industrial L3 Managed PoE Switch, 24-Port 10/100/1000T 802.3at PoE with 4 shared 100/1000X (-40 to 75 C, dual redu
Product symbol	IGS-6325-24P4S
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	400 x 100 x 580 mm
Weight gross	4.80 kg
Weight & dimensions
Height	44.00 millimeter
Width	440.00 millimeter
Depth	300.00 millimeter
Weight	3740.00 gram
Power
DC input voltage	48 - 56 V
Power consumption (max)	536.00 W
Data transmission
Packet buffer memory	32.00 MB
Throughput	35.71 Mpps
Switching capacity	48.00 Gb/s
MAC address table	16000 entries
Certificates
Certification	FCC Part 15 Class A, CE
Protocols
IPv4 & IPv6 features	IPv6 Telnet
Operational conditions
Heat dissipation	1828.90
Design
Form factor	1U
International Protection (IP) code	IP30
Housing material	Metal
LED indicators	Activity, Fault, Link, PoE, Power, Ring, System
Product color	Blue
Network
Networking standards	IEEE 1588 IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1ad IEEE 802.1ag IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3af IEEE 802.3ah IEEE 802.3at IEEE 802.3u IEEE 802.3x IEEE 802.3z
Virtual LAN features	MAC address-based VLAN Multicast VLAN Private VLAN Protocol-based VLAN Tagged VLAN Voice VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Fiber optic connector	MiniGBIC SFP
Power connector	Terminal block (3-pin)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	440.00 W
Power over Ethernet (PoE) power per port	36.00 W
Multicast features
Multicast Listener Discovery (MLD) snooping	v1/v2
Security
Queue scheduling algorithms	Priority queuing (PQ) Weighted Round Robin (WRR)
Security algorithms	SNMP SNMPv3 SSL/TLS
Authentication	Port-based authentication
Management features
Switch layer	L3
Switch type	Managed
