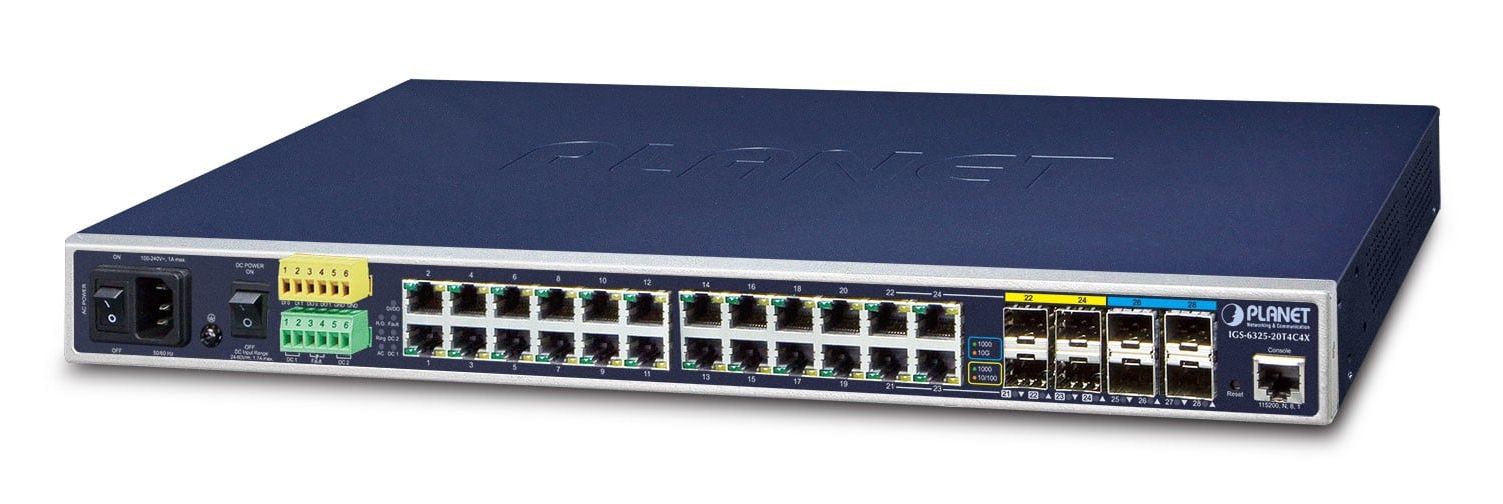

Planet IGS-6325-20T4C4X IP30 19" Rack Mountable Industrial L3 Managed Core Ethernet Switch, 24*10...

Write a review
1,047.52
TASK LTD
28 days
IGS-6325-20T4C4X
IN STOCK
+
PLANET IGS-6325-20T4C4X. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP modules quantity: 4, Installed SFP+ modules quantity: 4, Console port: RS-232. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC input voltage: 36 - 60 V. Rack mounting, Form factor: 1U

Basic data
Item namePlanet IGS-6325-20T4C4X IP30 19" Rack Mountable Industrial L3 Managed Core Ethernet Switch, 24*1000T with 4 shared 100/1000X SFP + 4*10G SFP+ (-40 to 75 C, AC +
Product symbolIGS-6325-20T4C4X
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • PLANET
Package sizes (HxWxL)100 x 310 x 560 mm
Weight gross3.80 kg
Weight & dimensions
Height
  • 44.50 millimeter
Width
  • 440.00 millimeter
Depth
  • 200.00 millimeter
Weight
  • 2980.00 gram
Power
Input current
  • 1.5 A
AC input frequency
  • 50 - 60 Hz
AC input voltage
  • 100 - 240 V
DC input voltage
  • 36 - 60 V
Power consumption (max)
  • 36.00 W
Data transmission
Packet buffer memory
  • 32.00 MB
Throughput
  • 95.2 Mpps
Switching capacity
  • 128.00 Gb/s
MAC address table
  • 16000 entries
Certificates
Certification
  • FCC Part 15 Class A, CE
Protocols
Routing protocols
  • OSPF
Packaging content
Cables included
  • AC, RS-232
Operational conditions
Heat dissipation
  • 122.80
Design
Form factor
  • 1U
LED indicators
  • Activity, Fault, Link, Power, Ring
Product color
  • Blue
Network
Networking standards
  • IEEE 802.1D
  • IEEE 802.1Q
  • IEEE 802.1ab
  • IEEE 802.1ag
  • IEEE 802.1p
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3ae
  • IEEE 802.3ah
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
Virtual LAN features
  • IP subnet–based VLAN
  • MAC address-based VLAN
  • Multicast VLAN
  • Private VLAN
  • Protocol-based VLAN
  • Tagged VLAN
  • Voice VLAN
Copper ethernet cabling technology
  • 10BASE-T, 100BASE-FX, 100BASE-TX, 100BASE-T, 1000BASE-T
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • Gigabit Ethernet (10/100/1000)
Console port
  • RS-232
Multicast features
Multicast Listener Discovery (MLD) snooping
  • v1/v2
Security
Authentication type
  • ieee_802_1x
  • radius
Queue scheduling algorithms
  • Priority queuing (PQ)
  • Weighted Round Robin (WRR)
Security algorithms
  • SNMPv3
Authentication
  • Port-based authentication
Optical fiber
Fiber ethernet cabling technology
  • 1000BASE-SX
  • 1000BASE‑BX
  • 1000BASE‑LX
  • 100BASE-FX
Management features
Switch layer
  • L3
Switch type
  • Managed
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
