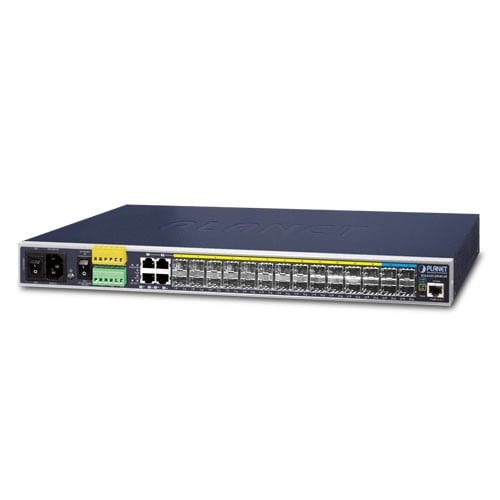

Planet IGS-6325-20S4C4X IP30 19" Rack Mountable Industrial L3 Managed Core Ethernet Switch, 14*10...

Return period: 28 days

CODE: IGS-6325-20S4C4X

PLANET IGS-6325-20S4C4X. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching...

Full description

€1,122.03

+ −

Vendor: TASK LTD

€1,122.03

Description
Reviews

PLANET IGS-6325-20S4C4X. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 158 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC input voltage: 36 - 60 V. Rack mounting, Form factor: 1U

Basic data
Item name	Planet IGS-6325-20S4C4X IP30 19" Rack Mountable Industrial L3 Managed Core Ethernet Switch, 14100/1G SFP with 4 shared 10/100/1000T + 101G/2.5G SFP + 4*10G SF
Product symbol	IGS-6325-20S4C4X
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	550 x 100 x 310 mm
Weight gross	4 kg
Weight & dimensions
Height	44.50 millimeter
Width	440.00 millimeter
Depth	200.00 millimeter
Weight	2935.00 gram
Power
Input current	1/2.25 A
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
DC input voltage	36 - 60 V
Power consumption (max)	41.40 W
Data transmission
Packet buffer memory	32.00 MB
Throughput	117.5 Mpps
Switching capacity	158.00 Gb/s
MAC address table	16000 entries
Certificates
Certification	FCC Part 15 Class A, CE
Protocols
Routing protocols	OSPF
Operational conditions
Heat dissipation	142.00
Design
Form factor	1U
International Protection (IP) code	IP30
LED indicators	Activity, Link, Power, Ring, System
Product color	Blue
Network
Networking standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1ag IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3ae IEEE 802.3ah IEEE 802.3u IEEE 802.3x IEEE 802.3z
Virtual LAN features	MAC address-based VLAN Multicast VLAN Private VLAN Protocol-based VLAN Tagged VLAN Voice VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Fiber optic connector	SFP SFP+
Security
Queue scheduling algorithms	WRR+SP
DHCP features	DHCP relay DHCP server
Security algorithms	SNMP
Optical fiber
Fiber ethernet cabling technology	1000BASE‑BX 1000BASE‑LX 1000BASE‑SX 100BASE-FX
Management features
MIB support	RFC 1213, 1493, 1643, 2863, 2665, 2819, 2737, 2618, 2863, 2933, 3411, 4292, 4293, 4836
Switch layer	L3
Switch type	Managed
