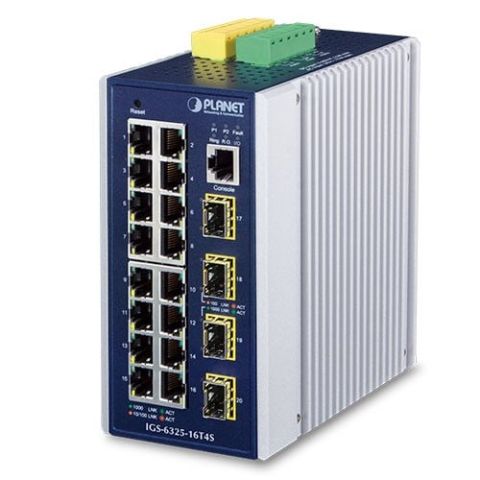

Planet IGS-6325-16T4S IP30 Industrial L3 16-Port 10/100/1000T + 4-port 1G/2.5G SFP Full Managed S...

Write a review

€729.94

Vendor: TASK LTD

Return period: 28 days

CODE: IGS-6325-16T4S

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET IGS-6325-16T4S. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... DC input voltage: 9 - 48 V. Wall mountable

Basic data
Item name	Planet IGS-6325-16T4S IP30 Industrial L3 16-Port 10/100/1000T + 4-port 1G/2.5G SFP Full Managed Switch (-40 to 75 C, dual redundant power input on 9~48VDC termi
Product symbol	IGS-6325-16T4S
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	120 x 180 x 240 mm
Weight gross	3 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	152.00 millimeter
Width	76.80 millimeter
Depth	107.30 millimeter
Weight	1168.00 gram
Power
Input current	3.3 A
DC input voltage	9 - 48 V
Data transmission
Packet buffer memory	32.00 MB
Throughput	29.76 Mpps
Switching capacity	40.00 Gb/s
MAC address table	16000 entries
Certificates
Certification	FCC 15 A CE: EN55032, EN55035, EN 62368-1/IEC 62368-1: 2014 IEC60068-2-32, IEC60068-2-27, IEC60068-2-6
Protocols
Routing protocols	OSPF
Design
International Protection (IP) code	IP30
Housing material	Aluminum
LED indicators	LAN, System
Product color	Blue, Gray
Network
Networking standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1ag IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3u IEEE 802.3x IEEE 802.3z
Virtual LAN features	IP subnet–based VLAN Protocol-based VLAN Voice VLAN
Performance
Flash memory	64.00 MB
Memory type	SDRAM
Internal memory	512.00 MB
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Fiber optic connector	SFP
Security
Queue scheduling algorithms	Weighted Round Robin (WRR)
Security algorithms	SNMP SNMPv2 SNMPv3 SSH-2 TLS
Management features
MIB support	RFC 1213, RFC 1493, RFC 1643, RFC 2863, RFC 2665, RFC 2819, RFC 2737, RFC 2618, RFC 2863, RFC 2933, RFC 3411, RFC 4292, RFC 4293, RFC 4836
Switch layer	L3
Switch type	Managed
