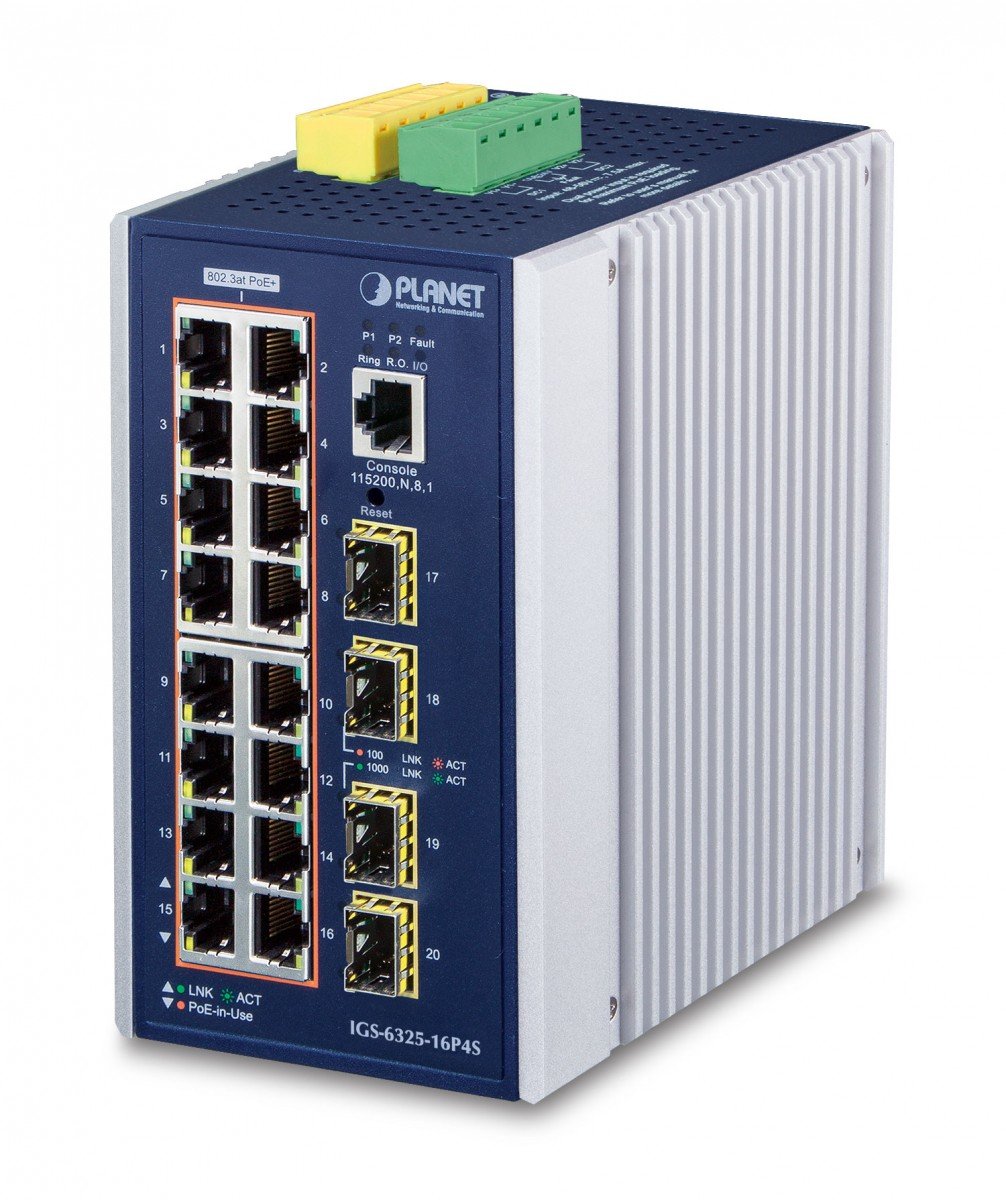

Planet IGS-6325-16P4S IP30 DIN-rail Industrial L3 16-Port 10/100/1000T 802.3at PoE + 4-port 1G/2....

Return period: 28 days

CODE: IGS-6325-16P4S

PLANET IGS-6325-16P4S. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching...

Full description

€989.54

+ −

Vendor: TASK LTD

€989.54

Description
Reviews

PLANET IGS-6325-16P4S. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Installed SFP modules quantity: 4, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE.... DC input voltage: 48 - 56 V. Power connector: Terminal block (3-pin). Power over Ethernet (PoE). Wall mountable

Basic data
Item name	Planet IGS-6325-16P4S IP30 DIN-rail Industrial L3 16-Port 10/100/1000T 802.3at PoE + 4-port 1G/2.5G SFP Full Managed Switch (-40 to 75 C, dual redundant power i
Product symbol	IGS-6325-16P4S
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	100 x 150 x 180 mm
Weight gross	0.30 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	152.00 millimeter
Width	76.00 millimeter
Depth	135.00 millimeter
Weight	1530.00 gram
Power
DC input voltage	48 - 56 V
Power consumption (max)	344.00 W
Data transmission
Packet buffer memory	32.00 MB
Throughput	38.6 Mpps
Switching capacity	52.00 Gb/s
MAC address table	16000 entries
Certificates
Certification	FCC Part 15 Class A, CE IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)
Protocols
Routing protocols	OSPF
IPv4 & IPv6 features	IPv6 Telnet
Operational conditions
Heat dissipation	1173.04
Design
International Protection (IP) code	IP30
Housing material	Aluminum
LED indicators	Activity, Fault, Link, PoE, Power, Ring
Product color	Aluminum, Blue
Network
Networking standards	IEEE 1588 IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1ad IEEE 802.1ag IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3af IEEE 802.3ah IEEE 802.3at IEEE 802.3u IEEE 802.3x IEEE 802.3z
Virtual LAN features	MAC address-based VLAN Multicast VLAN Private VLAN Protocol-based VLAN Tagged VLAN Voice VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Power connector	Terminal block (3-pin)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	320.00 W
Power over Ethernet (PoE) power per port	36.00 W
Multicast features
Multicast Listener Discovery (MLD) snooping	v1/v2
Security
Queue scheduling algorithms	Priority queuing (PQ) Weighted Round Robin (WRR)
Security algorithms	SNMP SNMPv3 SSH SSL/TLS
Authentication	Port-based authentication
Management features
Switch layer	L3
Switch type	Managed
