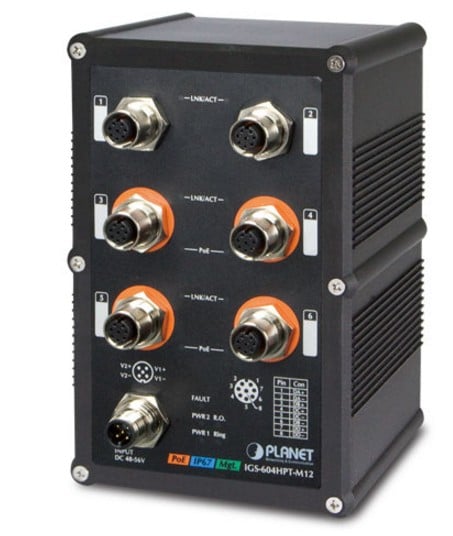

Planet IGS-604HPT-M12 IP67-rated Industrial L2+ 4-Port 10/100/1000T M12 802.3at PoE + 2-Port 10/1...

Write a review

€655.73

Vendor: TASK LTD

Return period: 28 days

CODE: IGS-604HPT-M12

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET IGS-604HPT-M12. Switch type: Managed, Switch layer: L2+. Full duplex. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Power over Ethernet (PoE). Wall mountable, Rack mounting

Basic data
Item name	Planet IGS-604HPT-M12 IP67-rated Industrial L2+ 4-Port 10/100/1000T M12 802.3at PoE + 2-Port 10/100/1000T M12 Managed Ethernet Switch (-40~75 degrees C) , ERPS
Product symbol	IGS-604HPT-M12
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	120 x 180 x 245 mm
Weight gross	1.50 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	163.00 millimeter
Width	103.00 millimeter
Depth	68.20 millimeter
Weight	1069.00 gram
Power
Input voltage	48 - 56 V
Power consumption (max)	165.30 W
Data transmission
Throughput	8.9 Mpps
Switching capacity	12.00 Gb/s
MAC address table	8000 entries
Certificates
Certification	FCC Part 15 Class A, CE IEC 60068-2-32 IEC 60068-2-27 IEC 60068-2-6
Protocols
Management protocols	IPv6
Packaging content
Cables included	LAN (RJ-45)
Operational conditions
Heat dissipation	563.70
Design
International Protection (IP) code	IP67
Housing material	Aluminum
LED indicators	Yes
Product color	Black
Network
Networking standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1af IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3az IEEE 802.3u IEEE 802.3x
Virtual LAN features	Protocol-based VLAN Tagged VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	144.00 W
Power over Ethernet (PoE) power per port	36.00 W
Security
Security algorithms	SNMP SSH SSL/TLS
Management features
MIB support	RFC 1213 MIB-II, RFC 1493 Bridge MIB, RFC 1643 Ethernet MIB, RFC 2863 Interface MIB, RFC 2665 Ether-Like MIB, RFC 2819 RMON MIB (Groups 1, 2, 3 and 9), RFC 2737 Entity MIB, RFC 2618 RADIUS Client MIB, RFC 2863 IF-MIB, RFC 2933 IGMP-STD-MIB, RFC 3411 SNMP-
Switch layer	L2+
Switch type	Managed
