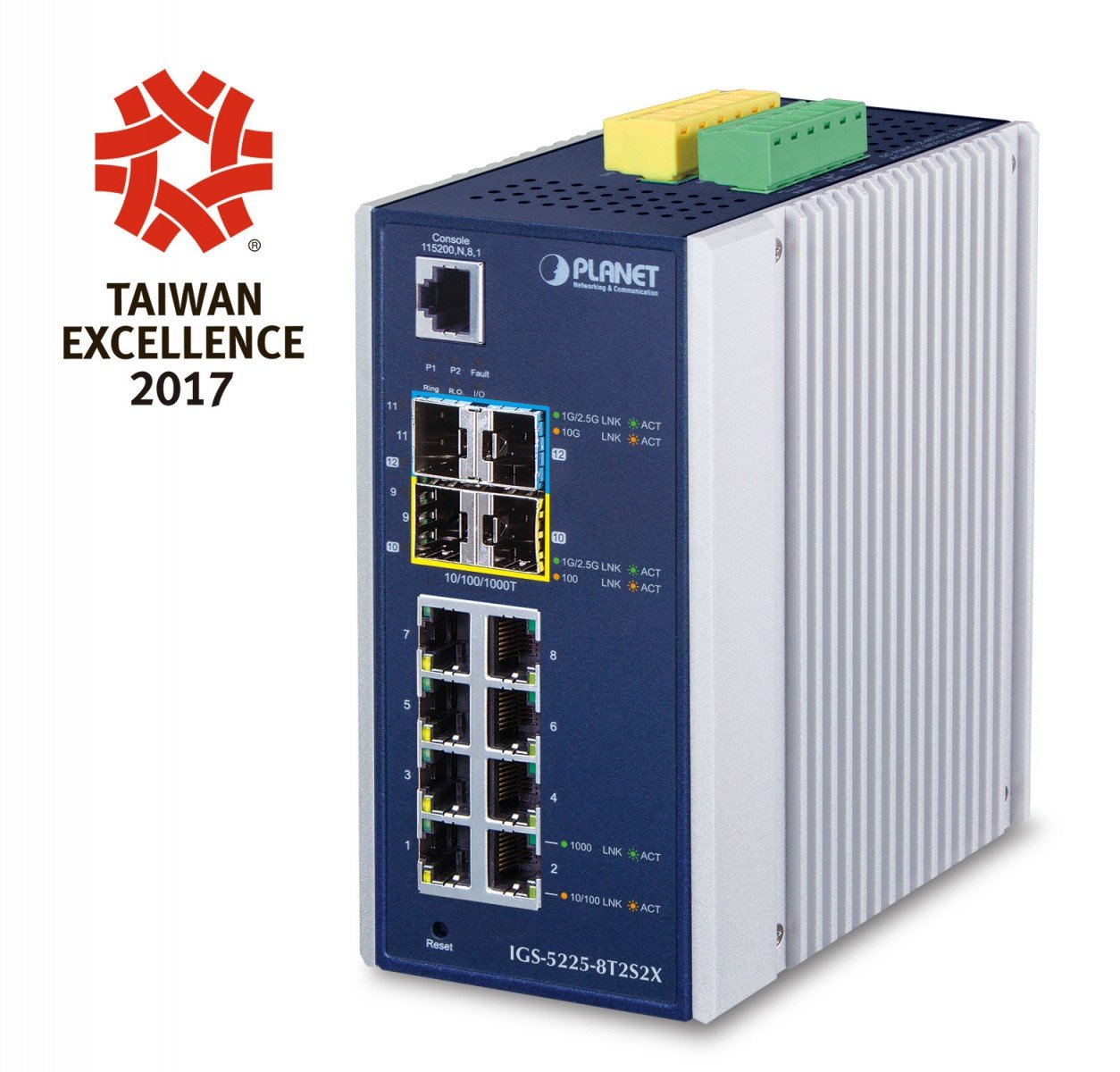

Planet IGS-5225-8T2S2X IP30 Industrial L3 8-Port 1000T + 2-Port 1G/2.5G SFP + 2-Port 10G SFP+ Ful...

Write a review

€690.66

Vendor: TASK LTD

Return period: 28 days

CODE: IGS-5225-8T2S2X

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET IGS-5225-8T2S2X. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 66 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC input voltage: 12 - 48 V. Wall mountable

Basic data
Item name	Planet IGS-5225-8T2S2X IP30 Industrial L3 8-Port 1000T + 2-Port 1G/2.5G SFP + 2-Port 10G SFP+ Full Managed Switch (-40 to 75 C, dual redundant power input on 12
Product symbol	IGS-5225-8T2S2X
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	90 x 170 x 300 mm
Weight gross	1.30 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	152.00 millimeter
Width	76.80 millimeter
Depth	107.30 millimeter
Weight	1070.00 gram
Power
Output voltage	24 V
Surge protection voltage	6.00 KV
DC input voltage	12 - 48 V
Power consumption (max)	17.40 W
Data transmission
Packet buffer memory	16.00 MB
Throughput	44.642 Mpps
Switching capacity	66.00 Gb/s
MAC address table	32000 entries
Certificates
Certification	FCC 15 A, CE, IEC60068-2-32, IEC60068-2-27, IEC60068-2-6
Operational conditions
Heat dissipation	55.79
Design
International Protection (IP) code	IP30
Housing material	Aluminum
LED indicators	Activity, Link, System
Product color	Blue, Silver
Network
Networking standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1ag IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3ae IEEE 802.3ah IEEE 802.3u IEEE 802.3x IEEE 802.3z
Virtual LAN features	MAC address-based VLAN Private VLAN Protocol-based VLAN Tagged VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Fiber optic connector	SFP SFP+
Multicast features
Multicast Listener Discovery (MLD) snooping	255
Security
Security algorithms	SNMP SNMPv3 SSH SSL/TLS
Authentication	MAC-based authentication
Optical fiber
Fiber ethernet cabling technology	1000BASE-SX 1000BASE‑BX 1000BASE‑LX 10GBASE-LR 10GBASE-SR
Management features
MIB support	RFC-1213 MIB-II, IF-MIB, RFC 1493 Bridge MIB, RFC 1643 MIB, RFC 2863 MIB, RFC 2665 MIB, RFC 2819 RMON MIB (1, 2, 3, 9), RFC 2737 MIB, RFC 2618 RADIUS MIB, RFC 2933 IGMP-STD-MIB, RFC 3411 SNMP-MIB, IEEE 802.1X PAE, LLDP, MAU-MIB
Switch layer	L3
Switch type	Managed
