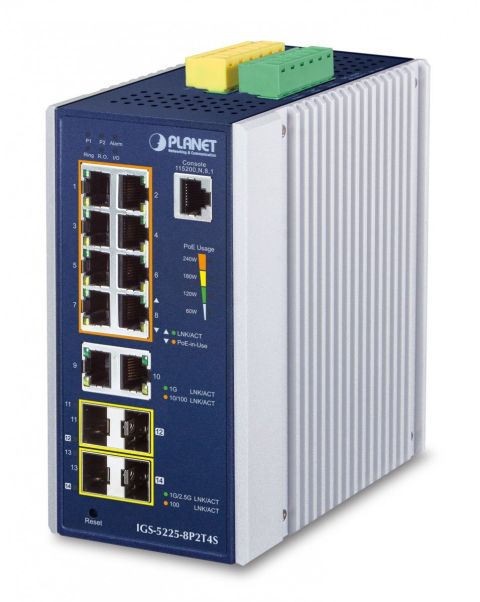

Planet IGS-5225-8P2T4S IP30 Industrial L2+/L4 8-Port 1000T 802.3at PoE+ 2-port 10/100/1000T + 2-P...

Return period: 28 days

CODE: IGS-5225-8P2T4S

PLANET IP30 Industrial L2+/L4 8-Port. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000),...

Full description

€635.11

+ −

Vendor: TASK LTD

€635.11

Description
Reviews

PLANET IP30 Industrial L2+/L4 8-Port. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10, Installed SFP modules quantity: 4, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 34 Gbit/s. Networking standards: IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE.... DC input voltage: 48 - 56 V. Wall mountable

Basic data
Item name	Planet IGS-5225-8P2T4S IP30 Industrial L2+/L4 8-Port 1000T 802.3at PoE+ 2-port 10/100/1000T + 2-Port 100/1G SFP + 2-Port 1G/2.5G SFP Full Managed Switch (-40 to
Product symbol	IGS-5225-8P2T4S
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	90 x 180 x 310 mm
Weight gross	1.50 kg
Weight & dimensions
Height	152.00 millimeter
Width	76.80 millimeter
Depth	107.30 millimeter
Weight	1100.00 gram
Power
DC input voltage	48 - 56 V
Data transmission
Throughput	25.3 Mpps
Switching capacity	34.00 Gb/s
MAC address table	8000 entries
Certificates
Certification	FCC Part 15 Class A, CE IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)
Design
International Protection (IP) code	IP30
Housing material	Aluminum
LED indicators	Yes
Product color	Aluminum, Blue
Network
Networking standards	IEEE 1588 IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1ad IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3af IEEE 802.3ah IEEE 802.3at IEEE 802.3u IEEE 802.3x IEEE 802.3z
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Management features
Switch layer	L2+
Switch type	Managed
