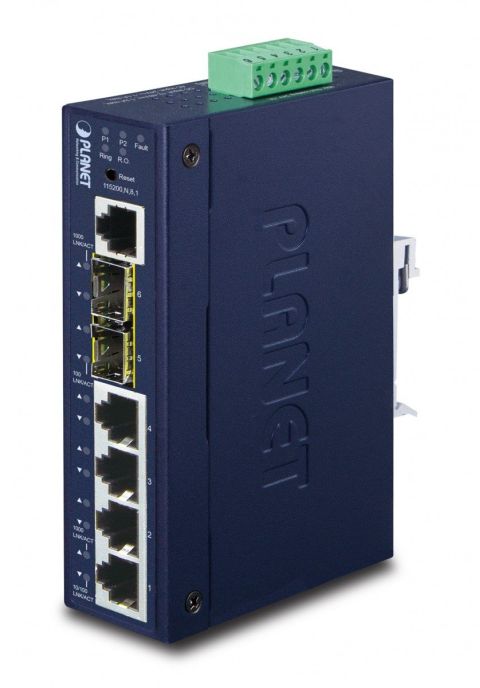

Planet IGS-5225-4T2S IP30 Industrial L2+/L4 4-Port 1000T + 2-Port 1G/2.5G SFP Full Managed Switch...

Return period: 28 days

CODE: IGS-5225-4T2S

PLANET IGS-5225-4T2S. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching...

Full description

€304.56

+ −

Vendor: TASK LTD

€304.56

Description
Reviews

PLANET IGS-5225-4T2S. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE.... DC input voltage: 24 V. Wall mountable

Basic data
Item name	Planet IGS-5225-4T2S IP30 Industrial L2+/L4 4-Port 1000T + 2-Port 1G/2.5G SFP Full Managed Switch (-40 to 75 C, dual redundant power input on 12~48VDC terminal
Product symbol	IGS-5225-4T2S
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	100 x 150 x 210 mm
Weight gross	0.30 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	135.00 millimeter
Width	32.00 millimeter
Depth	87.00 millimeter
Weight	456.00 gram
Power
DC input voltage	24 V
Power consumption (max)	8.50 W
Data transmission
Throughput	8.9 Mpps
Switching capacity	12.00 Gb/s
MAC address table	8000 entries
Certificates
Certification	FCC Part 15 Class A, CE
Operational conditions
Heat dissipation	29.20
Design
International Protection (IP) code	IP30
Housing material	Metal
LED indicators	Yes
Product color	Blue
Network
Networking standards	IEEE 1588v2 IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1ad IEEE 802.1ag IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3ah IEEE 802.3u IEEE 802.3x IEEE 802.3z
Virtual LAN features	Private VLAN Protocol-based VLAN Tagged VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Security
Security algorithms	SNMPv3 SSH SSL/TLS
Authentication	MAC-based authentication, Port-based authentication
Management features
Switch layer	L2+
Switch type	Managed

Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
