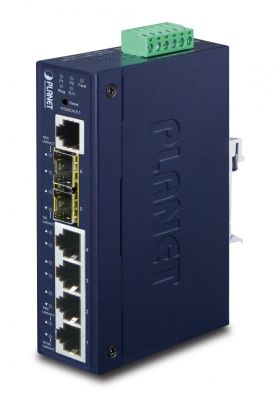

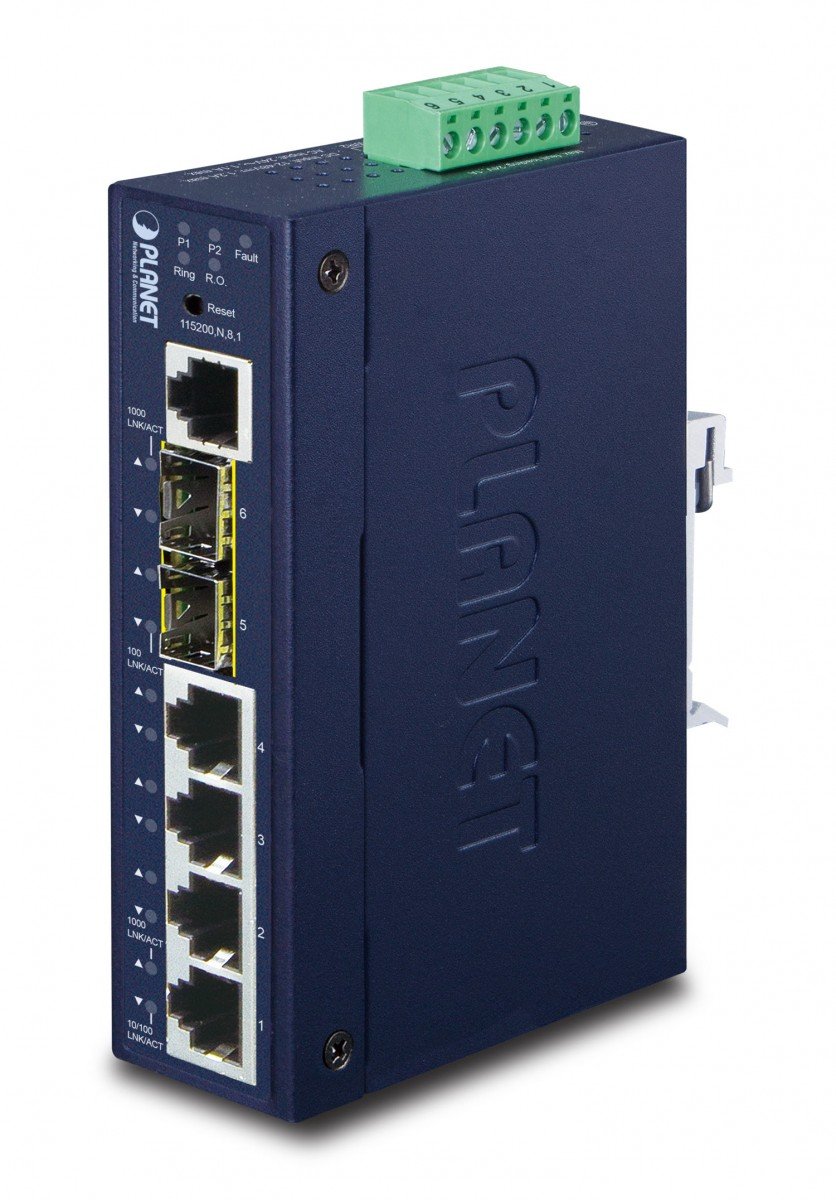

Planet IGS-5225-4T2S IP30 Industrial L2+/L4 4-Port 1000T + 2-Port 1G/2.5G SFP Full Managed Switch...

Write a review
304.56
TASK LTD
28 days
IGS-5225-4T2S
IN STOCK
+
PLANET IGS-5225-4T2S. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE.... DC input voltage: 24 V. Wall mountable

Basic data
Item namePlanet IGS-5225-4T2S IP30 Industrial L2+/L4 4-Port 1000T + 2-Port 1G/2.5G SFP Full Managed Switch (-40 to 75 C, dual redundant power input on 12~48VDC terminal
Product symbolIGS-5225-4T2S
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • PLANET
Package sizes (HxWxL)100 x 150 x 210 mm
Weight gross0.30 kg
Logistics data
Harmonized System (HS) code
  • 85176990
Weight & dimensions
Height
  • 135.00 millimeter
Width
  • 32.00 millimeter
Depth
  • 87.00 millimeter
Weight
  • 456.00 gram
Power
DC input voltage
  • 24 V
Power consumption (max)
  • 8.50 W
Data transmission
Throughput
  • 8.9 Mpps
Switching capacity
  • 12.00 Gb/s
MAC address table
  • 8000 entries
Certificates
Certification
  • FCC Part 15 Class A, CE
Operational conditions
Heat dissipation
  • 29.20
Design
International Protection (IP) code
  • IP30
Housing material
  • Metal
LED indicators
  • Yes
Product color
  • Blue
Network
Networking standards
  • IEEE 1588v2
  • IEEE 802.1D
  • IEEE 802.1Q
  • IEEE 802.1ab
  • IEEE 802.1ad
  • IEEE 802.1ag
  • IEEE 802.1p
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3ah
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
Virtual LAN features
  • Private VLAN
  • Protocol-based VLAN
  • Tagged VLAN
Copper ethernet cabling technology
  • 10BASE-T, 100BASE-T, 1000BASE-T
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • Gigabit Ethernet (10/100/1000)
Console port
  • RJ-45
Security
Security algorithms
  • SNMPv3
  • SSH
  • SSL/TLS
Authentication
  • MAC-based authentication, Port-based authentication
Management features
Switch layer
  • L2+
Switch type
  • Managed
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
