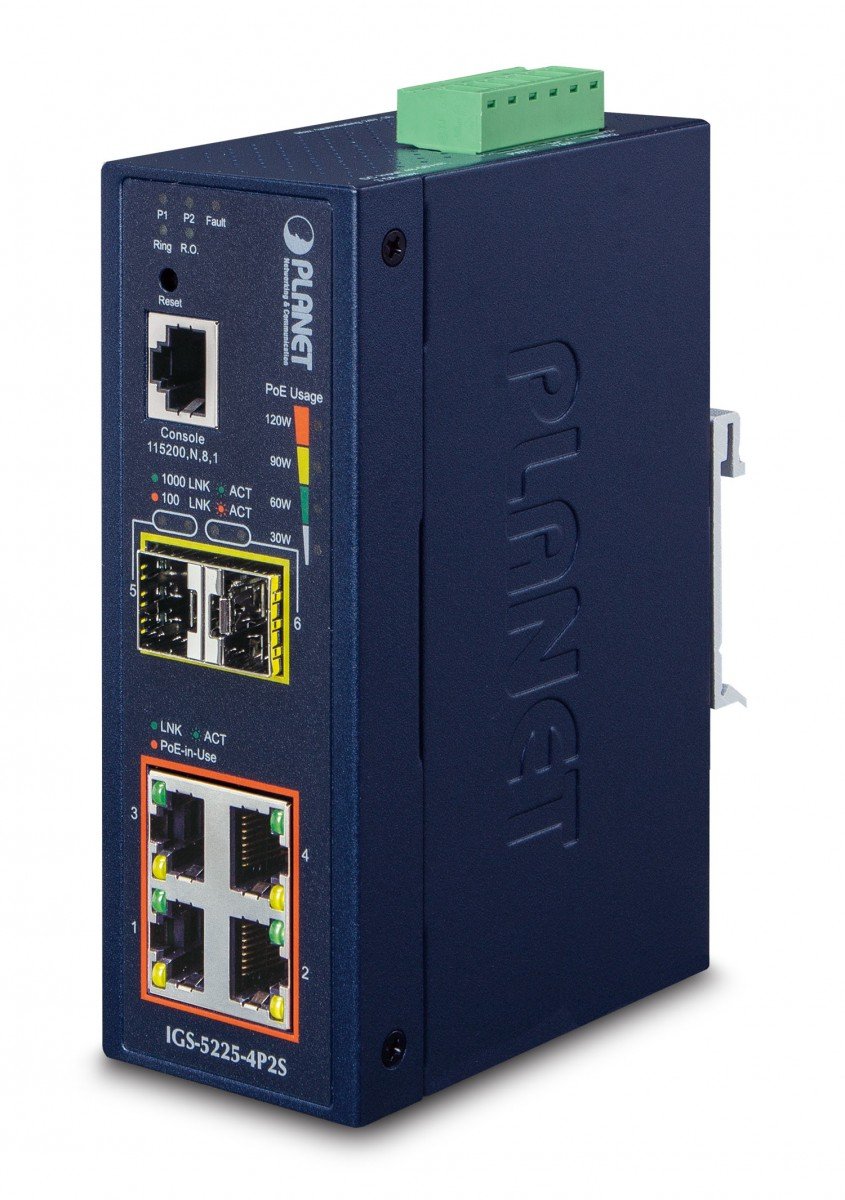

Planet IGS-5225-4P2S IP40 Industrial L2+/L4 4-Port 1000T 802.3at PoE + 2-Port 100/1000X SFP Full ...

Write a review

€355.14

Vendor: TASK LTD

Return period: 28 days

CODE: IGS-5225-4P2S

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET IGS-5225-4P2S. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE.... DC input voltage: 48 - 56 V. Power connector: Terminal block (3-pin). Power over Ethernet (PoE). Wall mountable

Basic data
Item name	Planet IGS-5225-4P2S IP40 Industrial L2+/L4 4-Port 1000T 802.3at PoE + 2-Port 100/1000X SFP Full Managed Switch (-40 to 75 C, dual redundant power input on 48~5
Product symbol	IGS-5225-4P2S
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	100 x 150 x 200 mm
Weight gross	0.80 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	135.00 millimeter
Width	50.00 millimeter
Depth	87.80 millimeter
Weight	610.00 gram
Power
DC input voltage	48 - 56 V
Power consumption (max)	151.80 W
Data transmission
Packet buffer memory	4.00 MB
Throughput	8.928 Mpps
Switching capacity	12.00 Gb/s
MAC address table	8000 entries
Certificates
Certification	FCC Part 15 Class A, CE IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)
Operational conditions
Heat dissipation	520.82
Design
International Protection (IP) code	IP40
Housing material	Metal
LED indicators	Activity, Fault, Link, PoE, Power, Ring
Product color	Blue
Network
Networking standards	IEEE 1588v2 IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1ad IEEE 802.1ag IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3af IEEE 802.3ah IEEE 802.3at IEEE 802.3u IEEE 802.3x IEEE 802.3z
Virtual LAN features	MAC address-based VLAN Multicast VLAN Private VLAN Protocol-based VLAN Tagged VLAN Voice VLAN
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Power connector	Terminal block (3-pin)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	144.00 W
Power over Ethernet (PoE) power per port	36.00 W
Security
Queue scheduling algorithms	Priority queuing (PQ) Weighted Round Robin (WRR)
Security algorithms	SNMP SNMPv3
Management features
Switch layer	L2+
Switch type	Managed
