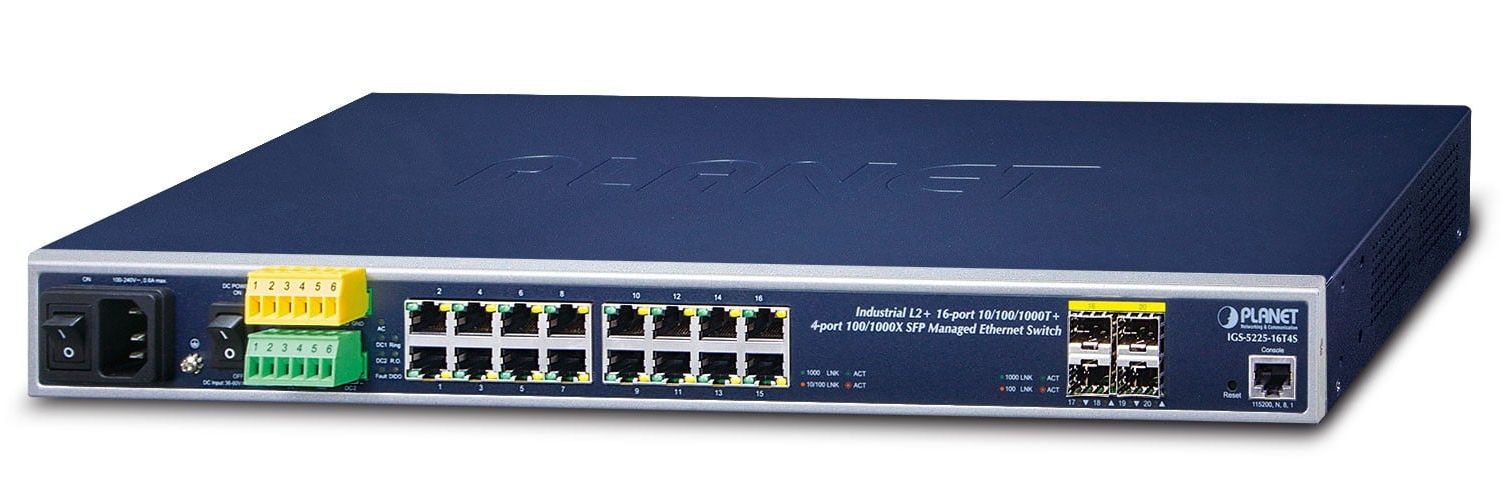

Planet IGS-5225-16T4S IP30 19" Rack Mountable Industrial L2+/L4 Managed Ethernet Switch, 16*1000T...

Write a review
776.39
TASK LTD
28 days
IGS-5225-16T4S
IN STOCK
+
PLANET IGS-5225-16T4S. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC input voltage: 36 - 60 V. Rack mounting, Form factor: 1U

Basic data
Item namePlanet IGS-5225-16T4S IP30 19" Rack Mountable Industrial L2+/L4 Managed Ethernet Switch, 16*1000T + 4*100/1000X SFP (-40 - 75 C, AC + 2 DC, DIDO, ERPS Ring, 158
Product symbolIGS-5225-16T4S
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • PLANET
Package sizes (HxWxL)44.5 x 440 x 200 mm
Weight gross3.60 kg
Logistics data
Harmonized System (HS) code
  • 85176990
Weight & dimensions
Height
  • 44.50 millimeter
Width
  • 440.00 millimeter
Depth
  • 200.00 millimeter
Weight
  • 2672.00 gram
Power
Input current
  • 0.4 A
AC input frequency
  • 50 - 60 Hz
AC input voltage
  • 100 - 240 V
DC input voltage
  • 36 - 60 V
Power consumption (max)
  • 15.20 W
Data transmission
Throughput
  • 29.76 Mpps
Switching capacity
  • 40.00 Gb/s
MAC address table
  • 8000 entries
Certificates
Certification
  • FCC Part 15 Class A, CE
Operational conditions
Heat dissipation
  • 51.80
Design
Form factor
  • 1U
International Protection (IP) code
  • IP30
Housing material
  • Metal
LED indicators
  • Yes
Product color
  • Blue
Network
Networking standards
  • IEEE 1588v2
  • IEEE 802.1D
  • IEEE 802.1Q
  • IEEE 802.1ab
  • IEEE 802.1p
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
Virtual LAN features
  • Private VLAN
  • Protocol-based VLAN
  • Tagged VLAN
Copper ethernet cabling technology
  • 10BASE-T, 100BASE-T, 1000BASE-T
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • Gigabit Ethernet (10/100/1000)
Console port
  • RJ-45
Security
Security algorithms
  • SNMPv3
  • SSH
  • SSL/TLS
Authentication
  • Guest VLAN, MAC-based authentication, Port-based authentication
Management features
Switch layer
  • L2+
Switch type
  • Managed
