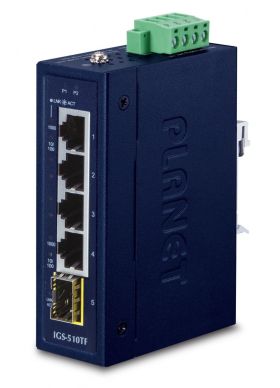

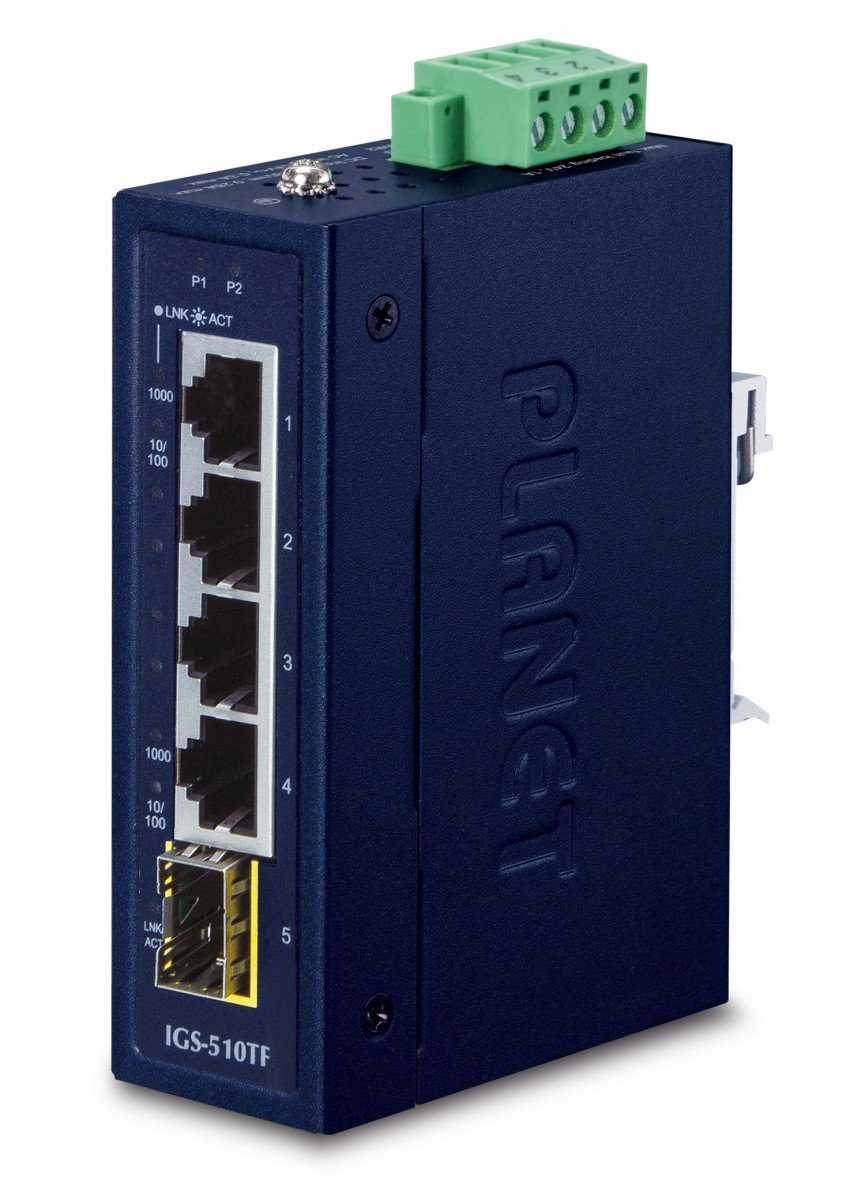

Planet IGS-510TF IP30 Compact size 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Sw...

Write a review

€137.06

Vendor: TASK LTD

Return period: 28 days

CODE: IGS-510TF

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET IGS-510TF. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 4000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 9 - 48 V. Wall mountable

Basic data
Item name	Planet IGS-510TF IP30 Compact size 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch (-40~75 degrees C, dual 9~48V DC/24V AC)
Product symbol	IGS-510TF
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	47 x 146 x 206 mm
Weight gross	0.40 kg
Logistics data
Harmonized System (HS) code	85176990
Other features
Connectivity technology	Wired
Ethernet interface type	Gigabit Ethernet
Weight & dimensions
Height	104.00 millimeter
Width	30.00 millimeter
Depth	70.00 millimeter
Weight	252.00 gram
Power
Input voltage	9 - 48 V
Input current	24 A
DC input voltage	9 - 48 V
Power consumption (max)	2.80 W
Data transmission
Throughput	7.4 Mpps
Switching capacity	10.00 Gb/s
MAC address table	4000 entries
Certificates
Certification	FCC Part 15 Class A, CE
Operational conditions
Heat dissipation	9.50
Design
International Protection (IP) code	IP30
Housing material	Metal
LED indicators	Power
Product color	Blue
Network
Networking standards	IEEE 802.1p IEEE 802.3 IEEE 802.3ad IEEE 802.3az IEEE 802.3u IEEE 802.3x
Cable types supported	Cat3 Cat4 Cat5 Cat5e Cat6
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
Maximum data transfer rate	1000.00 Mb/s
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Fiber optic connector	SFP
Management features
Switch layer	L2
Switch type	Unmanaged

Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
