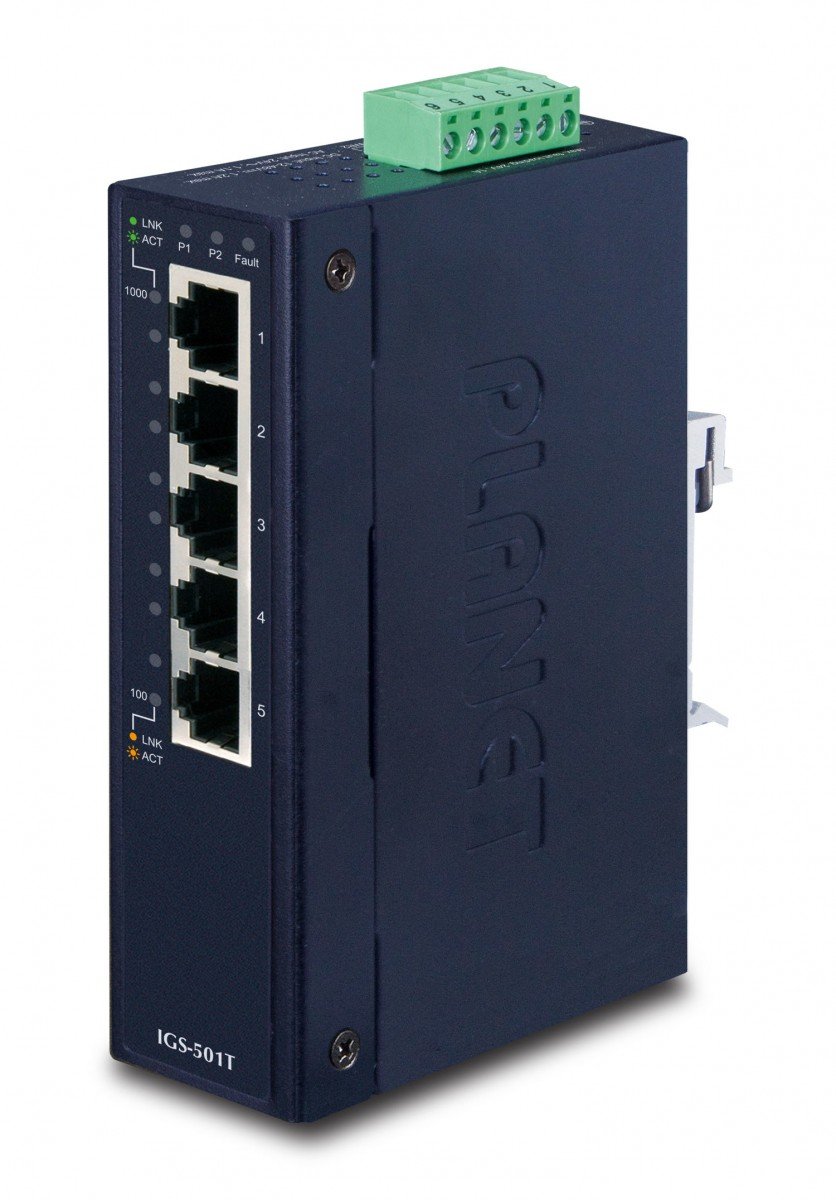

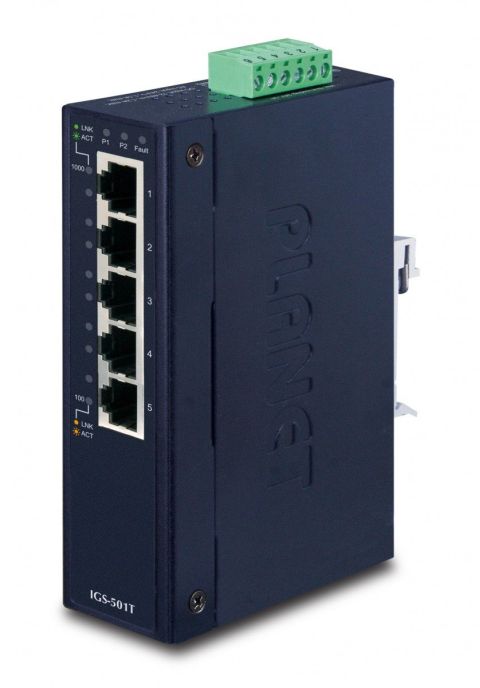

Planet IGS-501T IP30 Slim type 5-Port Industrial Gigabit Ethernet Switch (-40 to 75 degree C, dua...

Write a review
103.26
TASK LTD
28 days
IGS-501T
IN STOCK
+
PLANET IGS-501T. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 - 48 V. Wall mountable

Basic data
Item namePlanet IGS-501T IP30 Slim type 5-Port Industrial Gigabit Ethernet Switch (-40 to 75 degree C, dual 9~48V DC/24V AC)
Product symbolIGS-501T
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • PLANET
Package sizes (HxWxL)40 x 200 x 150 mm
Weight gross0.60 kg
Logistics data
Harmonized System (HS) code
  • 85176990
Weight & dimensions
Height
  • 135.00 millimeter
Width
  • 32.00 millimeter
Depth
  • 87.00 millimeter
Weight
  • 456.00 gram
Power
Power consumption (typical)
  • 5.28 W
DC input voltage
  • 12 - 48 V
Data transmission
Throughput
  • 7.4 Mpps
Switching capacity
  • 10.00 Gb/s
MAC address table
  • 2000 entries
Certificates
Certification
  • FCC Part 15 Class A, CE
Operational conditions
Heat dissipation
  • 18.00
Design
International Protection (IP) code
  • IP30
Housing material
  • Metal
LED indicators
  • Yes
Product color
  • Blue
Network
Networking standards
  • IEEE 802.1p
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.3u
  • IEEE 802.3x
Cable types supported
  • Cat3
  • Cat4
  • Cat5
  • Cat5e
  • Cat6
Copper ethernet cabling technology
  • 10BASE-T, 100BASE-T, 1000BASE-T
Performance
Maximum cable length
  • 100.00 meter
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • Gigabit Ethernet (10/100/1000)
Management features
Switch layer
  • L2
Switch type
  • Unmanaged
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
