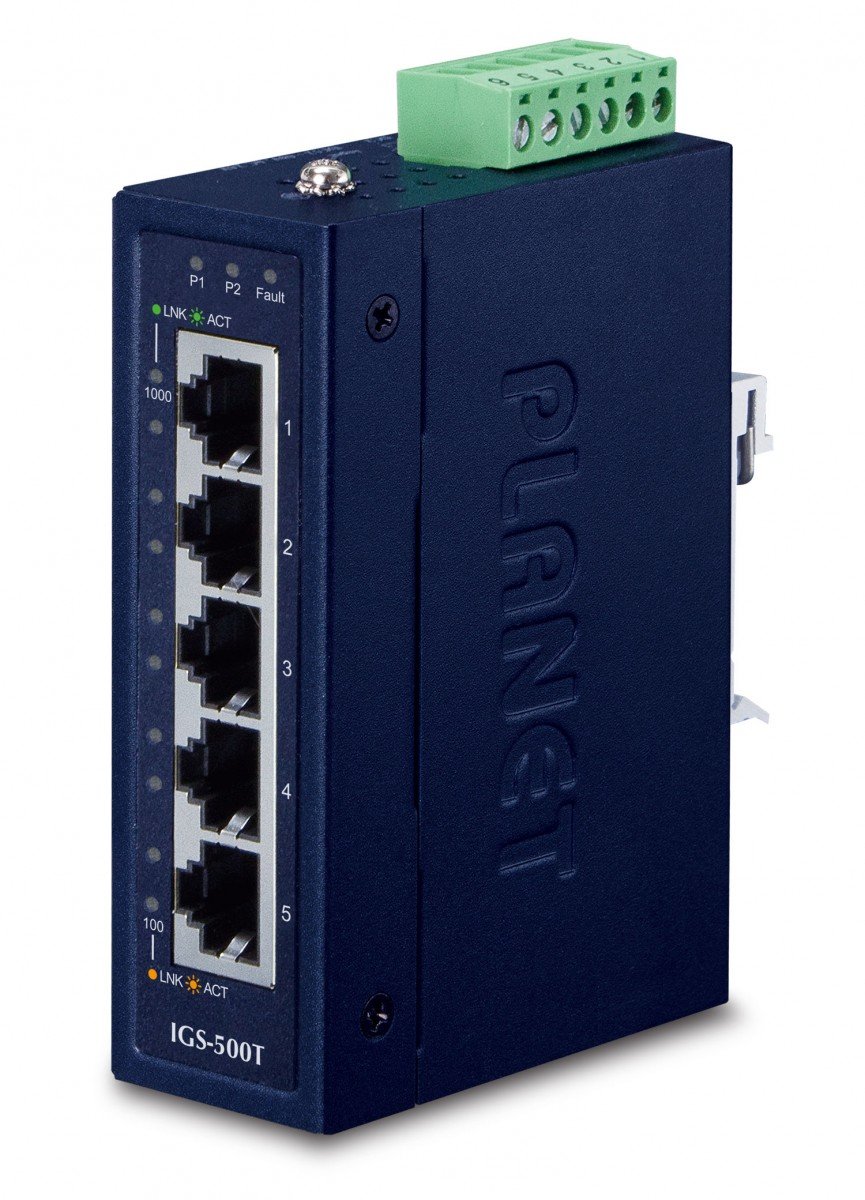

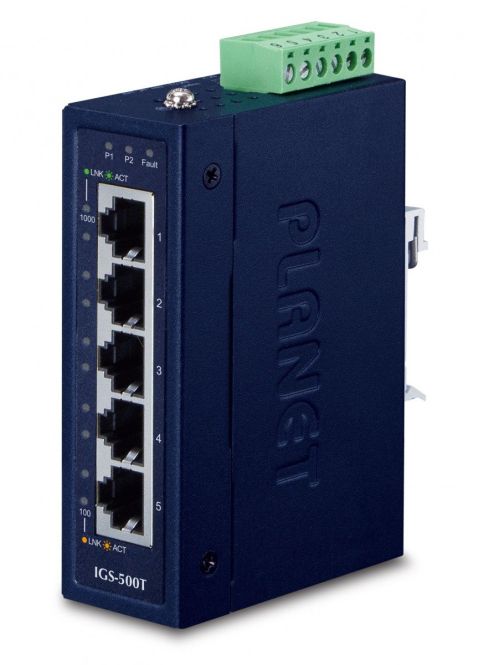

Planet IGS-500T IP30 Compact size 5-Port 10/100/1000T Gigabit Ethernet Switch (-40~75 degrees C),...

Write a review
95.19
TASK LTD
28 days
IGS-500T
IN STOCK
+
PLANET IGS-500T. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 4000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 24 V. Wall mountable

Basic data
Item namePlanet IGS-500T IP30 Compact size 5-Port 10/100/1000T Gigabit Ethernet Switch (-40~75 degrees C),UL certified
Product symbolIGS-500T
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • PLANET
Package sizes (HxWxL)50 x 150 x 210 mm
Weight gross0.40 kg
Logistics data
Harmonized System (HS) code
  • 85176990
Weight & dimensions
Height
  • 104.00 millimeter
Width
  • 30.00 millimeter
Depth
  • 70.00 millimeter
Weight
  • 252.00 gram
Power
Power consumption (typical)
  • 3.60 W
DC input voltage
  • 24 V
Data transmission
Packet buffer memory
  • 1.00 MB
Throughput
  • 7.4 Mpps
Switching capacity
  • 10.00 Gb/s
MAC address table
  • 4000 entries
Certificates
Certification
  • FCC Part 15 Class A, CE IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Operational conditions
Heat dissipation
  • 12.35
Design
International Protection (IP) code
  • IP30
Housing material
  • Metal
LED indicators
  • Yes
Product color
  • Blue
Network
Networking standards
  • IEEE 802.1p
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.3u
  • IEEE 802.3x
Cable types supported
  • Cat3
  • Cat4
  • Cat5
  • Cat5e
  • Cat6
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • Gigabit Ethernet (10/100/1000)
Management features
Switch layer
  • L2
Switch type
  • Unmanaged
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
