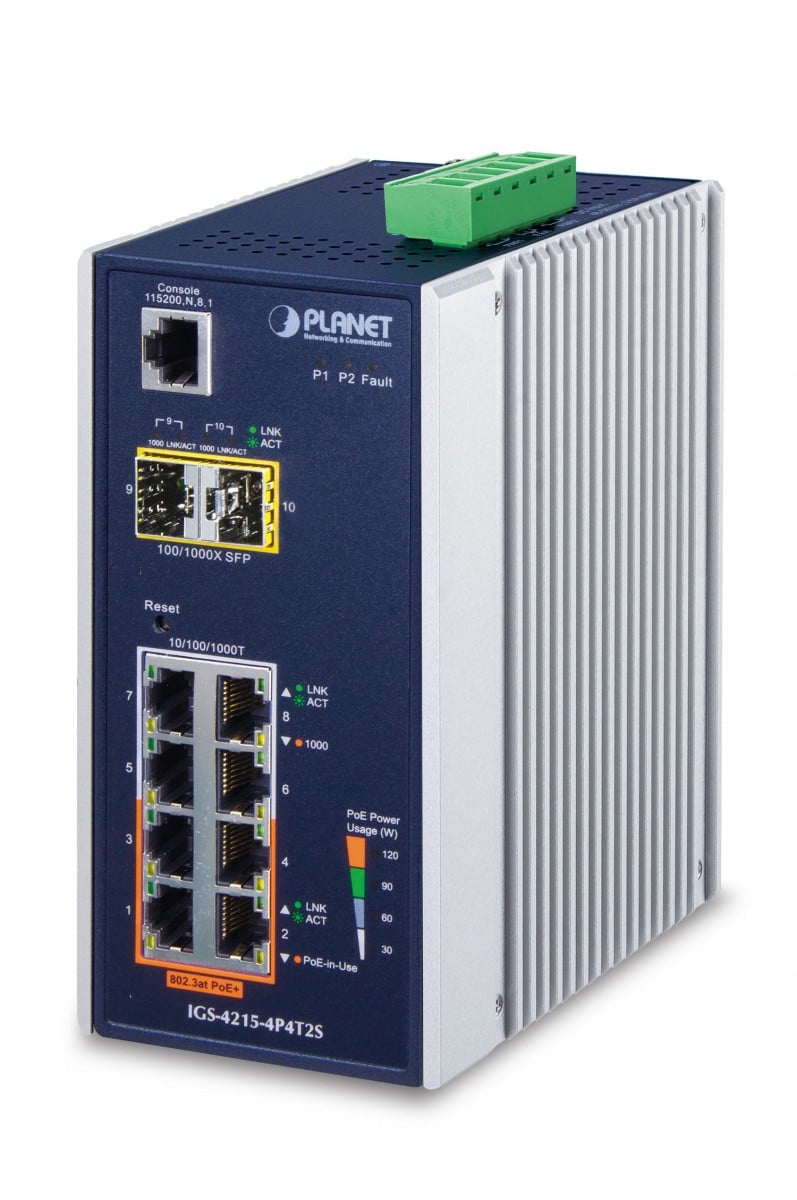

Planet IGS-4215-4P4T2S IP30 Industrial L2/L4 4-Port 10/100/1000T 802.3at PoE + 4-Port 10/100/1000...

Write a review

€421.19

Vendor: TASK LTD

Return period: 28 days

CODE: IGS-4215-4P4T2S

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET IGS-4215-4P4T2S. Switch type: Managed, Switch layer: L2/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... DC input voltage: 48 - 56 V. Power over Ethernet (PoE). Wall mountable

Basic data
Item name	Planet IGS-4215-4P4T2S IP30 Industrial L2/L4 4-Port 10/100/1000T 802.3at PoE + 4-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch (-40~75 degrees C), dua
Product symbol	IGS-4215-4P4T2S
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	170 x 90 x 310 mm
Weight gross	2.45 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	152.00 millimeter
Width	76.80 millimeter
Depth	107.30 millimeter
Weight	1004.00 gram
Power
Input current	3.5 A
Power consumption (typical)	5.04 W
DC input voltage	48 - 56 V
Power consumption (max)	152.96 W
Data transmission
Packet buffer memory	4.10 MB
Throughput	14.8 Mpps
Switching capacity	20.00 Gb/s
MAC address table	8000 entries
Certificates
Certification	FCC 15 A, CE
Operational conditions
Heat dissipation	523.80
Design
Safety	IEC 60068-2-32, IEC 60068-2-27, IEC 60068-2-6
International Protection (IP) code	IP30
Housing material	Aluminum
LED indicators	Activity, Link, PoE, Power, System
Product color	Blue, White
Network
Networking standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3u IEEE 802.3x IEEE 802.3z
Virtual LAN features	Private VLAN Protocol-based VLAN Stacked VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-LX, 1000BASE-SX
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	144.00 W
Security
DHCP features	DHCP client
Security algorithms	128-bit SSL 802.1x RADIUS SNMP SSH
Authentication	Port-based authentication
Optical fiber
Fiber ethernet cabling technology	1000BASE‑BX 1000BASE‑LX 1000BASE‑SX 100BASE-FX
Management features
MIB support	RFC 1215, RFC 1493, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3635
Switch layer	L2/L4
Switch type	Managed
