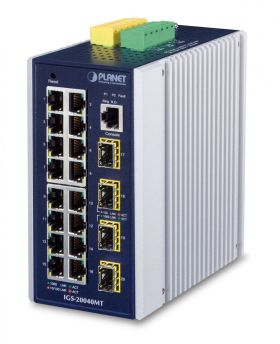

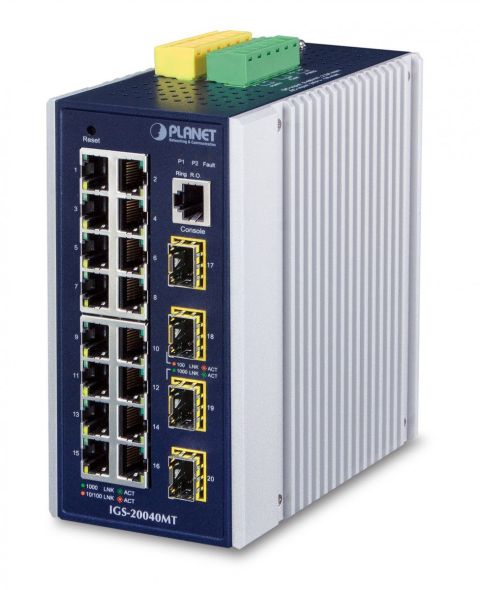

Planet IGS-20040MT IP30 Industrial 16* 10/100/1000TP + 4* 100/1000X SFP Full Managed Ethernet Swi...

Write a review

€707.54

Vendor: TASK LTD

Return period: 28 days

CODE: IGS-20040MT

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET IGS-20040MT. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE.... Wall mountable

Basic data
Item name	Planet IGS-20040MT IP30 Industrial 16* 10/100/1000TP + 4* 100/1000X SFP Full Managed Ethernet Switch (-40 to 75 C, dual redundant power input on 9~48VDC termina
Product symbol	IGS-20040MT
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	90 x 170 x 300 mm
Weight gross	1.40 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	152.00 millimeter
Width	76.80 millimeter
Depth	107.30 millimeter
Weight	1043.00 gram
Power
Power consumption (typical)	8.00 W
Power consumption (max)	17.00 W
Data transmission
Throughput	29.7 Mpps
Switching capacity	40.00 Gb/s
MAC address table	8000 entries
Certificates
Certification	FCC, CE
Protocols
Management protocols	telnet, SNMP
Supported network protocols	IPv4 / IPv6
Operational conditions
Heat dissipation	27.00
Design
International Protection (IP) code	IP30
Housing material	Aluminum
LED indicators	Yes
Product color	Blue, White
Network
Networking standards	IEEE 1588v2 IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1ad IEEE 802.1ag IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3ah IEEE 802.3u IEEE 802.3x IEEE 802.3z
Virtual LAN features	Private VLAN Protocol-based VLAN Stacked VLAN Tagged VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Fiber optic connector	MiniGBIC
Security
Security algorithms	802.1x RADIUS SSH SSL/TLS
Authentication	MAC-based authentication, Port-based authentication
Optical fiber
Fiber ethernet cabling technology	1000BASE‑BX 1000BASE‑LX 1000BASE‑SX 100BASE-FX
Management features
Switch layer	L2+
Switch type	Managed
