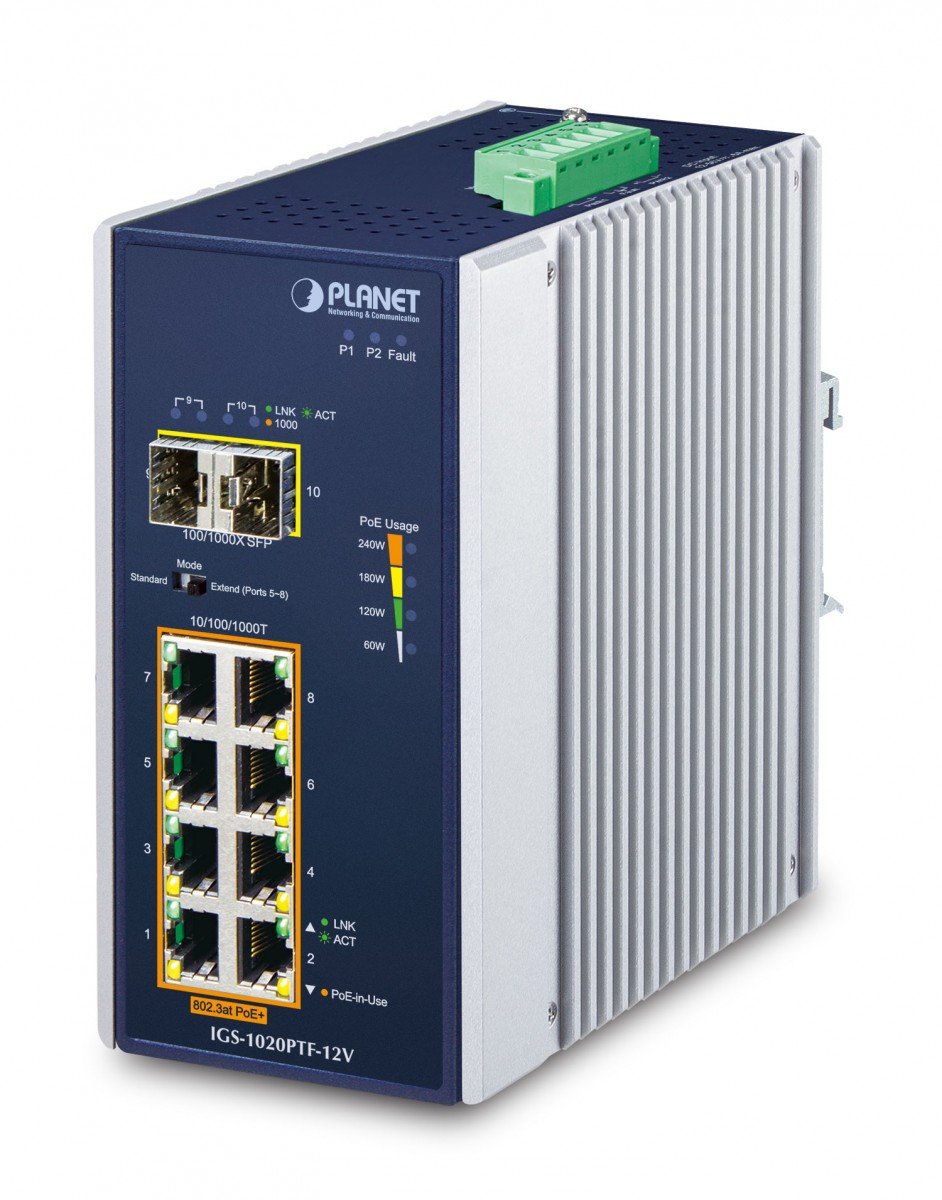

Planet IGS-1020PTF-12V IP30 Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Eth...

Write a review
399.26
TASK LTD
28 days
IGS-1020PTF-12V
IN STOCK
+
PLANET IP30 Ind 8-P 10/100/1000T. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z. DC input voltage: 12 - 56 V. Power over Ethernet (PoE). Wall mountable

Basic data
Item namePlanet IGS-1020PTF-12V IP30 Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch w/ 12V Booster (-40~75 degrees C, 250m Extend mode
Product symbolIGS-1020PTF-12V
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • PLANET
Package sizes (HxWxL)180 x 90 x 300 mm
Weight gross1.50 kg
Logistics data
Harmonized System (HS) code
  • 85176990
Weight & dimensions
Height
  • 152.00 millimeter
Width
  • 77.00 millimeter
Depth
  • 106.00 millimeter
Weight
  • 1164.00 gram
Power
Input current
  • 6 A
DC input voltage
  • 12 - 56 V
Data transmission
Throughput
  • 14.8 Mpps
Switching capacity
  • 20.00 Gb/s
MAC address table
  • 8000 entries
Certificates
Certification
  • FCC Part 15 Class A, CE IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Design
International Protection (IP) code
  • IP30
Housing material
  • Aluminum
LED indicators
  • Yes
Product color
  • Blue, White
Network
Networking standards
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
  • IEEE 802.3u
  • IEEE 802.3z
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • Gigabit Ethernet (10/100/1000)
Management features
Switch type
  • Unmanaged
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
