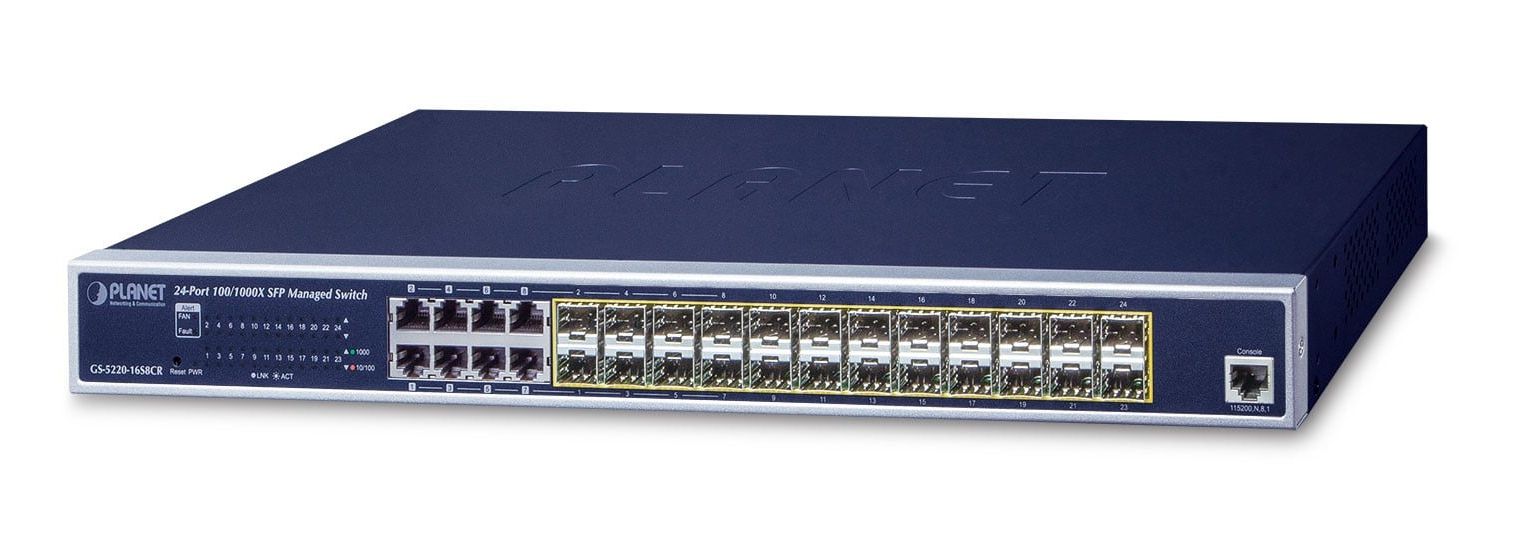

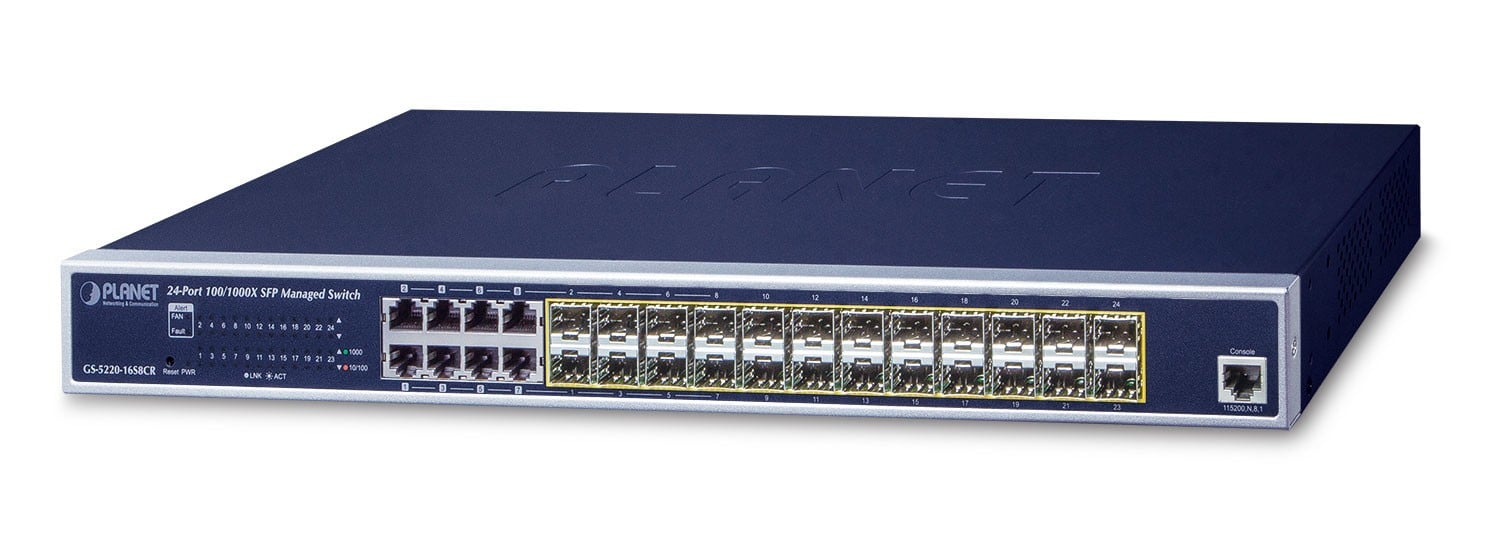

Planet GS-5220-16S8CR L2+/L4 24-Port 100/1000X SFP with 8 Shared TP Managed Switches, with Hardwa...

Write a review
608.79
TASK LTD
28 days
GS-5220-16S8CR
IN STOCK
+
PLANET GS-5220-16S8CR. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 24, Installed SFP+ modules quantity: 4, Console port: RS-232. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... DC input voltage: 36 - 72 V. Rack mounting, Form factor: 1U

Basic data
Item namePlanet GS-5220-16S8CR L2+/L4 24-Port 100/1000X SFP with 8 Shared TP Managed Switches, with Hardware Layer3 IPv4/IPv6 Static Routing, W/ 48V Redundant Power
Product symbolGS-5220-16S8CR
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • PLANET
Package sizes (HxWxL)320 x 100 x 550 mm
Weight gross3.60 kg
Logistics data
Harmonized System (HS) code
  • 85176990
Weight & dimensions
Height
  • 44.00 millimeter
Width
  • 440.00 millimeter
Depth
  • 260.00 millimeter
Weight
  • 3495.00 gram
Power
Input current
  • 0.6 A
Power consumption (typical)
  • 36.20 W
AC input frequency
  • 50 - 60 Hz
AC input voltage
  • 100 - 240 V
DC input voltage
  • 36 - 72 V
Data transmission
Packet buffer memory
  • 16.00 MB
Throughput
  • 95.23 Mpps
Switching capacity
  • 128.00 Gb/s
MAC address table
  • 16000 entries
Certificates
Certification
  • FCC Part 15 Class A, CE
Operational conditions
Heat dissipation
  • 102.90
Design
Form factor
  • 1U
Housing material
  • Metal
LED indicators
  • Yes
Product color
  • Blue
Network
Networking standards
  • IEEE 802.1D
  • IEEE 802.1Q
  • IEEE 802.1ab
  • IEEE 802.1p
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
Virtual LAN features
  • IP subnet–based VLAN
  • MAC address-based VLAN
  • Multicast VLAN
  • Private VLAN
  • Protocol-based VLAN
  • Tagged VLAN
  • Voice VLAN
Copper ethernet cabling technology
  • 10BASE-T, 100BASE-T, 1000BASE-T
Ethernet LAN data rates
  • 10,100,1000 Mbit/s
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • Gigabit Ethernet (10/100/1000)
Console port
  • RS-232
Fiber optic connector
  • SFP
Security
Authentication type
  • radius
  • tacacs_
Queue scheduling algorithms
  • SP
  • Weighted Round Robin (WRR)
DHCP features
  • DHCP relay
  • DHCP snooping
Security algorithms
  • SNMPv3
  • SSH
  • SSL/TLS
Authentication
  • MAC-based authentication, Port-based authentication
Optical fiber
Fiber ethernet cabling technology
  • 1000BASE-X
  • 100BASE-X
Management features
Switch layer
  • L2+
Switch type
  • Managed
