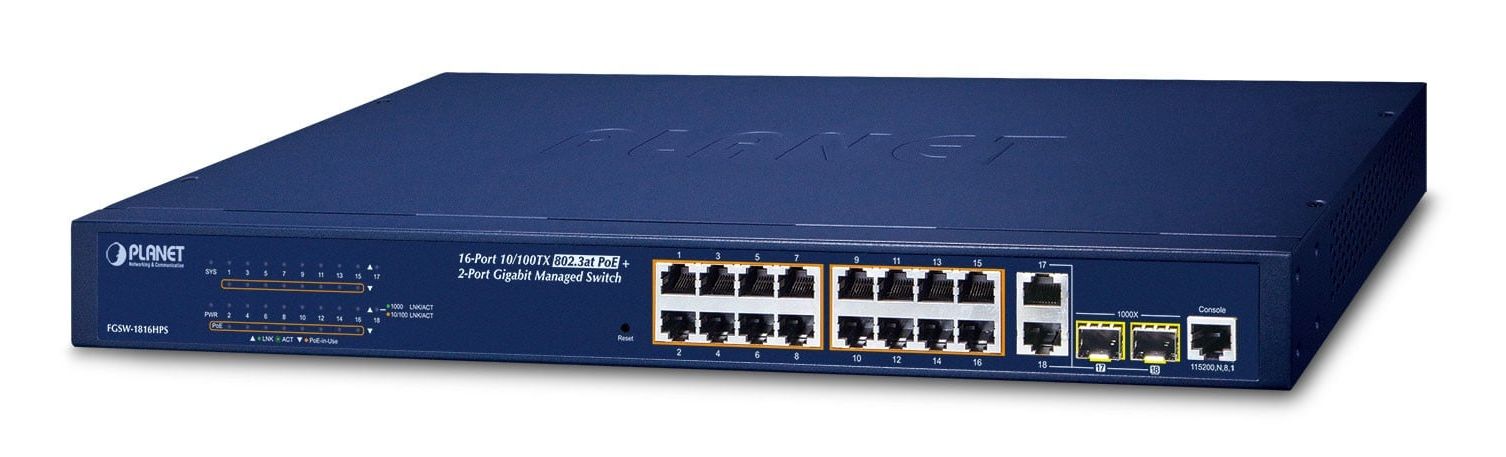

Planet FGSW-1816HPS 16-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Managed Ethernet ...

Write a review

€288.76

Vendor: TASK LTD

Return period: 28 days

CODE: FGSW-1816HPS

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET FGSW-1816HPS. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 16000 entries, Switching capacity: 7.2 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting

Basic data
Item name	Planet FGSW-1816HPS 16-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Managed Ethernet Switch (240W, 250m Extend mode, IPv4/IPv6 Management, SNMPv3, 8
Product symbol	FGSW-1816HPS
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	100 x 310 x 570 mm
Weight gross	3.80 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	44.00 millimeter
Width	440.00 millimeter
Depth	208.00 millimeter
Weight	2332.00 gram
Power
Input current	3.6 A
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Power consumption (max)	270.00 W
Data transmission
Throughput	5.35 Mpps
Switching capacity	7.20 Gb/s
MAC address table	16000 entries
Certificates
Certification	FCC Part 15 Class A, CE
Operational conditions
Heat dissipation	921.00
Design
Housing material	Metal
LED indicators	Yes
Product color	Blue
Network
Networking standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3u IEEE 802.3x IEEE 802.3z
Cable types supported	Cat5 Cat5e Cat6
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	240.00 W
Optical fiber
Fiber ethernet cabling technology	1000BASE‑LX 1000BASE‑SX
Management features
Switch layer	L2
Switch type	Managed
