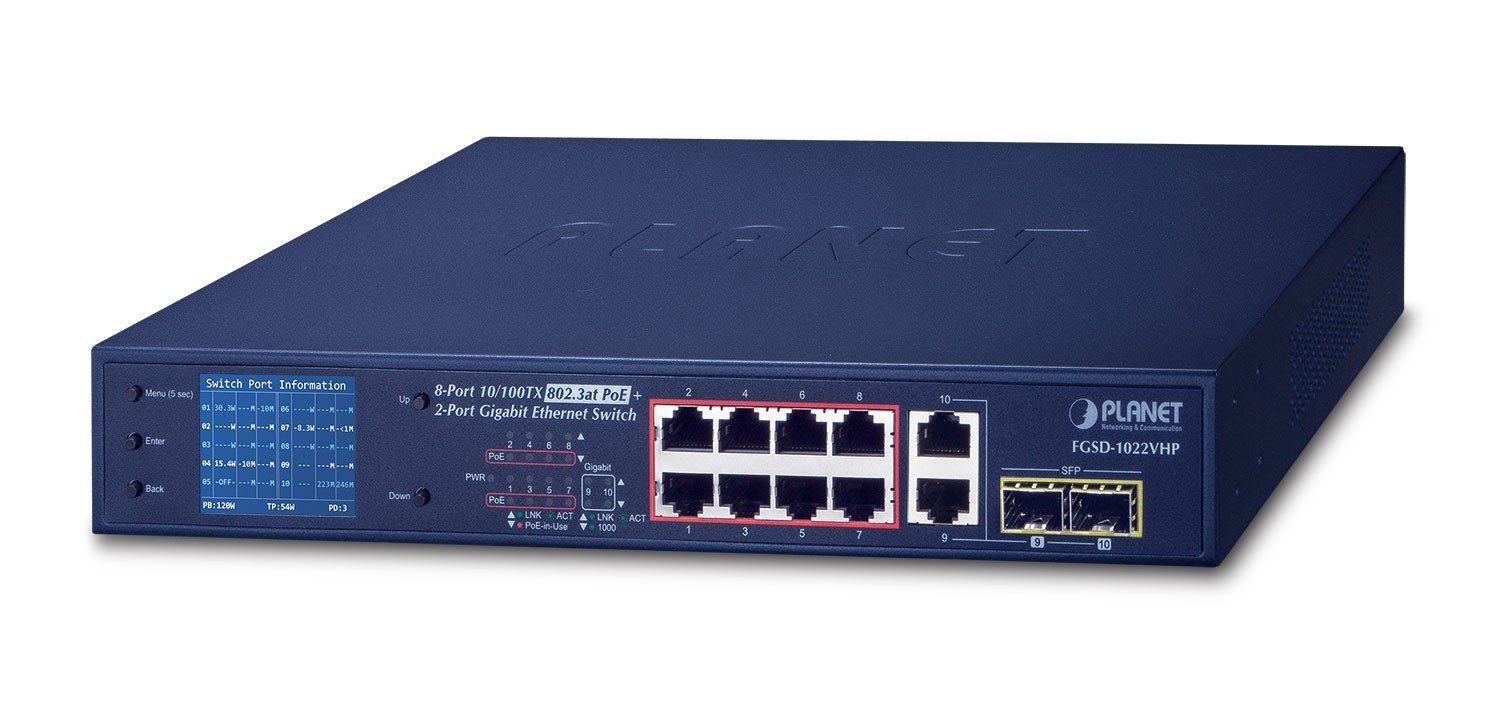

Planet FGSD-1022VHP 8-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP combo Desktop Switch with...

Return period: 28 days

CODE: FGSD-1022VHP

PLANET FGSD-1022VHP. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45...

Full description

€197.93

+ −

Vendor: TASK LTD

€197.93

Description
Reviews

PLANET FGSD-1022VHP. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 5.6 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Basic data
Item name	Planet FGSD-1022VHP 8-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP combo Desktop Switch with smart color LCD (120W PoE Budget, Standard/VLAN/Extend mode, P
Product symbol	FGSD-1022VHP
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	90 x 380 x 230 mm
Weight gross	2.50 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	44.00 millimeter
Width	180.00 millimeter
Depth	280.00 millimeter
Weight	1800.00 gram
Power
Input current	2.5 A
Power protection features	Short circuit
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Power consumption (max)	130.00 W
Data transmission
Throughput	4.17 Mpps
Switching capacity	5.60 Gb/s
MAC address table	8000 entries
Certificates
Certification	FCC, CE
Operational conditions
Heat dissipation	446.00
Design
Number of fans	1 fan(s)
Form factor	1U
Housing material	Metal
LED indicators	Yes
Product color	Blue
Network
Networking standards	IEEE 802.1Q IEEE 802.3 IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3u IEEE 802.3x IEEE 802.3z
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	120.00 W
Power over Ethernet (PoE) power per port	30.00 W
Optical fiber
Fiber ethernet cabling technology	1000BASE‑LX 1000BASE‑SX
Management features
Switch layer	L2
Switch type	Unmanaged
