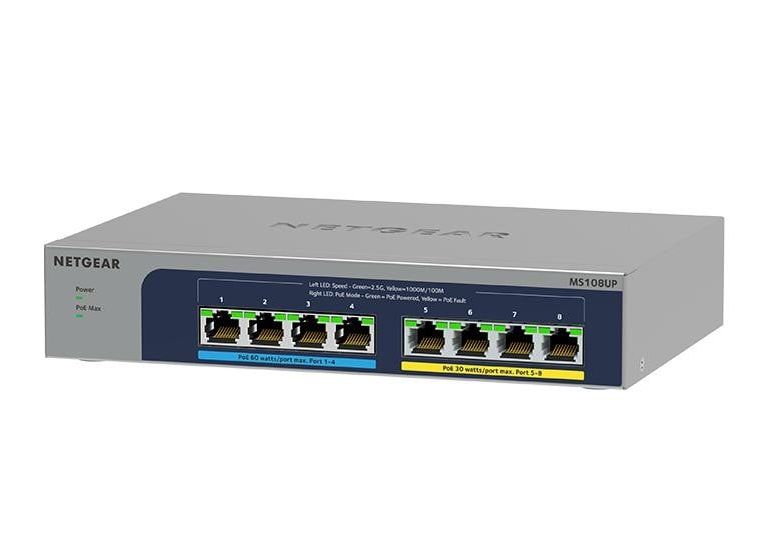

NETGEAR MS108UP-100EUS 8PT POE++ MULTIGIG UM SWITCH

Write a review

€365.87

Vendor: TASK LTD

Return period: 28 days

CODE: MS108UP-100EUS

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

NETGEAR MS108UP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt,.... DC input voltage: 54 V. Power over Ethernet (PoE). Wall mountable

Basic data
Item name	NETGEAR MS108UP-100EUS 8PT POE++ MULTIGIG UM SWITCH
Product symbol	MS108UP-100EUS
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	Netgear
Package sizes (HxWxL)	220 x 90 x 270 mm
Weight gross	2.64 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	40.00 millimeter
Width	210.00 millimeter
Depth	140.00 millimeter
Weight	900.00 gram
Power
Power source	DC
Input current	4.7 A
DC input voltage	54 V
Data transmission
Packet buffer memory	1.50 MB
Latency (1 Gbps)	3.593 µs
Switching capacity	40.00 Gb/s
Packet forwarding rate (1 Gbps)	1488000 pps
MAC address table	16000 entries
Certificates
Certification	CB, CSA, CCC, BSMI, RCM
Operational conditions
Heat dissipation	923.49
Design
Number of fans	0 fan(s)
Electromagnetic compatibility	CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM
Housing material	Metal
LED indicators	Activity, Link, PoE, Power
Network
Networking standards	IEEE 802.1p IEEE 802.3 IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3az IEEE 802.3bt IEEE 802.3u IEEE 802.3x
Ethernet LAN data rates	100,1000,2500 Mbit/s
Performance
Mean time between failures (MTBF)	373643.70 h
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	230.00 W
Management features
Switch layer	L2
Switch type	Unmanaged

Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
