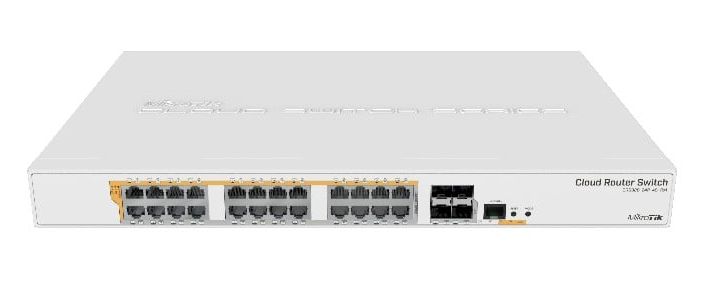

MikroTik CRS328-24P-4S+RM Cloud Router Switch
24 Port Gigabit Ethernet Router/Switch with Four 10Gbps SFP+ Ports in 1U Rackmount Case, Dual Boot and PoE Output, 500W
CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing. PoE-Out is passed over mode B pins (4,5+)(7,8-). The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fiber or Ethernet modules (not included).
CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving guaranteed 450 W (3x150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose.
The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with disruptive price, providing best price/performance on the market.
Powering
- Number of AC inputs: 1
- AC input range: 100-240
- Max power consumption: 494 W
- Max power consumption without attachments: 44 W
- FAN count: 2
PoE-out
- PoE-out ports: Ether1-Ether24
- PoE out: 802.3af/at
- Max out per port output (input 18-30 V): 1000 mA
- Max out per port output (input 30-57 V): 450 mA
- Max total out (A): 20 A
Ethernet
- 10/100/1000 Ethernet ports: 24
Fiber
- SFP+ ports: 4
Peripherals
- Serial console port: RJ45
Other
- CPU temperature monitor: Yes
- PCB temperature monitor: Yes
- Mode button: Yes
Certification & Approvals
- Certification: CE, EAC, ROHS
- IP: IP00
| Basic data | |
| Item name | MikroTik CRS328-24P-4S+RM Cloud Router Switch (CRS328-24P-4S+RM) |
| Product symbol | CRS328-24P-4S+RM |
| Hierarchy by CATEGORY |
|
| Hierarchy by MANUFACTURER |
|
| Package sizes (HxWxL) | 60 x 560 x 350 mm |
| Weight gross | 4.30 kg |
| Logistics data | |
| Harmonized System (HS) code |
|
| Weight & dimensions | |
| Height |
|
| Width |
|
| Depth |
|
| Power | |
| Power source |
|
| AC input voltage |
|
| Power consumption (max) |
|
| Data transmission | |
| Throughput |
|
| Switching capacity |
|
| MAC address table |
|
| Forwarding rate |
|
| Protocols | |
| Management protocols |
|
| Packaging content | |
| Cables included |
|
| Design | |
| Form factor |
|
| LED indicators |
|
| Product color |
|
| Network | |
| Networking standards |
|
| Performance | |
| Flash memory |
|
| Processor frequency |
|
| Internal memory |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type |
|
| Console port |
|
| Management features | |
| Switch layer |
|
| Switch type |
|
