Mikrotik CRS112-8P-4S-IN network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) ...

Write a review
233.46
TASK LTD
28 days
CRS112-8P-4S-IN
IN STOCK
+

8x Gigabit Ethernet Smart Switch with PoE-out, 4x SFP cages, 400MHz CPU, 128MB RAM, desktop case, RouterOS L5

CRS112-8P-4S-IN is eight Gigabit RJ45 ports PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V.

Our CRS series combines a fully functional router and a managable switch with L3 features, it’s powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes. It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. IGMP snooping is also supported.

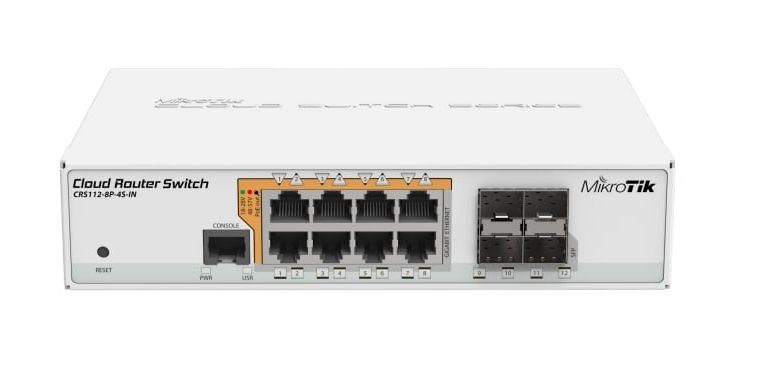

MikroTik CRS112-8P-4S-IN
MikroTik CRS112-8P-4S-IN

Switching features

  1. Non-blocking Layer 2 switching capacity
  2. 16K host table
  3. IEEE 802.1Q VLAN
  4. Supports up to 4K simultaneous VLANs
  5. Port isolation
  6. Port security
  7. Broadcast storm control
  8. Port mirroring of ingress/egress traffic
  9. Rapid Spanning Tree Protocol
  10. Access Control List
  11. MikroTik neighbor discovery
  12. SNMP
  13. 9204-byte jumbo frames support
  14. IGMP snooping
  15. Static link aggregation


Basic data
Item nameMikrotik CRS112-8P-4S-IN network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White (CRS112-8P-4S-IN)
Product symbolCRS112-8P-4S-IN
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • MikroTik
Package sizes (HxWxL)50 x 280 x 340 mm
Weight gross1.40 kg
Logistics data
Harmonized System (HS) code
  • 85176990
Power
DC input voltage
  • 18 - 57 V
Power consumption (max)
  • 10.00 W
Design
Product color
  • White
Network
Networking standards
  • IEEE 802.3af
  • IEEE 802.3at
Performance
Compatible operating systems
  • RouterOS L5
Flash memory
  • 16.00 MB
Processor frequency
  • 400.00 MHz
Internal memory
  • 128.00 MB
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • Gigabit Ethernet (10/100/1000)
Power connector
  • DC-in jack
Management features
Switch layer
  • L2/L3
Switch type
  • Managed
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
